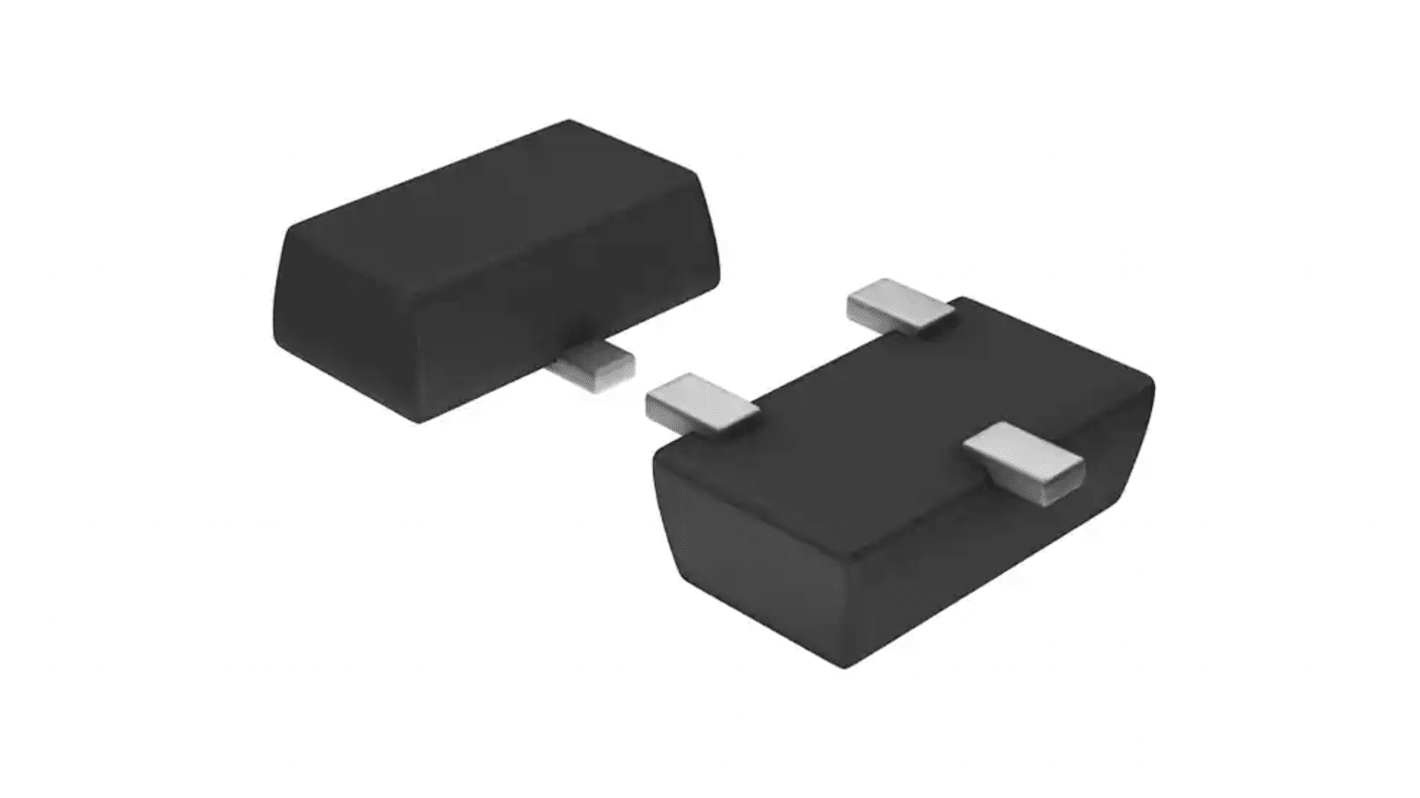

Toshiba Type P-Channel MOSFET, 6 A, 12 V, 3-Pin SOT-23 SSM3J338R,LF(T
- RS-stocknr.:
- 236-3568
- Fabrikantnummer:
- SSM3J338R,LF(T
- Fabrikant:
- Toshiba
Subtotaal (1 rol van 3000 eenheden)*
€ 8.838,00
(excl. BTW)
€ 10.695,00
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk | Per rol* |
|---|---|---|
| 3000 + | € 2,946 | € 8.838,00 |
*prijsindicatie
- RS-stocknr.:
- 236-3568
- Fabrikantnummer:
- SSM3J338R,LF(T
- Fabrikant:
- Toshiba
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Toshiba | |
| Product Type | MOSFET | |
| Channel Type | Type P | |
| Maximum Continuous Drain Current Id | 6A | |
| Maximum Drain Source Voltage Vds | 12V | |
| Package Type | SOT-23 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 26.3mΩ | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 19.5nC | |
| Maximum Power Dissipation Pd | 2W | |
| Forward Voltage Vf | 0.75V | |
| Maximum Operating Temperature | 150°C | |
| Height | 0.8mm | |
| Length | 2.4mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk Toshiba | ||
Product Type MOSFET | ||
Channel Type Type P | ||
Maximum Continuous Drain Current Id 6A | ||
Maximum Drain Source Voltage Vds 12V | ||
Package Type SOT-23 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 26.3mΩ | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 19.5nC | ||
Maximum Power Dissipation Pd 2W | ||
Forward Voltage Vf 0.75V | ||
Maximum Operating Temperature 150°C | ||
Height 0.8mm | ||
Length 2.4mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Toshiba field effect transistor MADE up of the silicon material and having P channel MOS type. It is mainly used in power management switching applications.
Storage temperature range −55 to 150 °C
