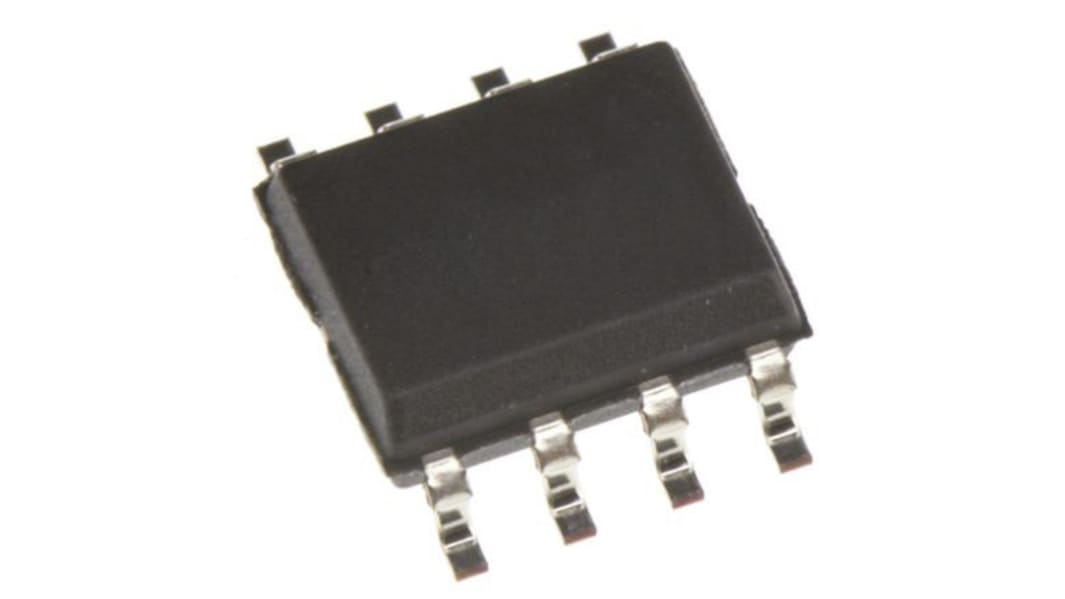

Maxim Integrated Switching Regulator, Surface Mount, 11.64 → 12.6V dc Output Voltage, 17V dc Input Voltage, 225
- RS-stocknr.:
- 190-8263
- Fabrikantnummer:
- MAX734CSA+
- Fabrikant:
- Maxim Integrated
Bekijk alle Switching Regulators
56 op voorraad - levertijd is 1 werkdag(en).
Prijs Each (In a Pack of 2)
€ 2,585
(excl. BTW)
€ 3,128
(incl. BTW)
| Aantal stuks | Per stuk | Per pak* |
| 2 + | € 2,585 | € 5,17 |
| *prijsindicatie | ||
Verpakkingsopties
- RS-stocknr.:
- 190-8263
- Fabrikantnummer:
- MAX734CSA+
- Fabrikant:
- Maxim Integrated
Datasheets
Wetgeving en conformiteit
- Land van herkomst:
- PH
Productomschrijving
Regulated +12V +5% Output
Guaranteed 120mA Output Current
Tiny Flash Memory Programming Circuit:
Fits into 0.3in2
8-Pin SO and Plastic DIP Packages
Uses Tiny 18μH Inductor and 33μF Capacitors
Logic-Controlled 70μA Shutdown
85% Typical Efficiency
Applications
+12V Flash Memory Programming Supplies
PCMCIA +12V Supplies
Solid-State Disk Drives
Palmtop Computers
Compact +12V Op-Amp Supplies
Guaranteed 120mA Output Current
Tiny Flash Memory Programming Circuit:
Fits into 0.3in2
8-Pin SO and Plastic DIP Packages
Uses Tiny 18μH Inductor and 33μF Capacitors
Logic-Controlled 70μA Shutdown
85% Typical Efficiency
Applications
+12V Flash Memory Programming Supplies
PCMCIA +12V Supplies
Solid-State Disk Drives
Palmtop Computers
Compact +12V Op-Amp Supplies
Specificaties
| Kenmerk | Waarde |
| Output Voltage | 11.64 → 12.6V dc |
| Output Current | 225 (Typ.)mA |
| Input Voltage | 17V dc |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Efficiency | 85 (Typ.)% |
| Maximum Temperature | +70°C |
| Minimum Temperature | 0°C |
| Width | 4mm |
| Maximum Input Current | 2.5mA |
| Application | +12V Flash Memory Programming Supplies, Compact +12V Op-Amp Supplies, Palmtop Computers, PCMCIA +12V Supplies, Solid State Disk Drives |
| Length | 5mm |
| Power Signal Conversion Type | DC-DC |
| Depth | 1.5mm |
