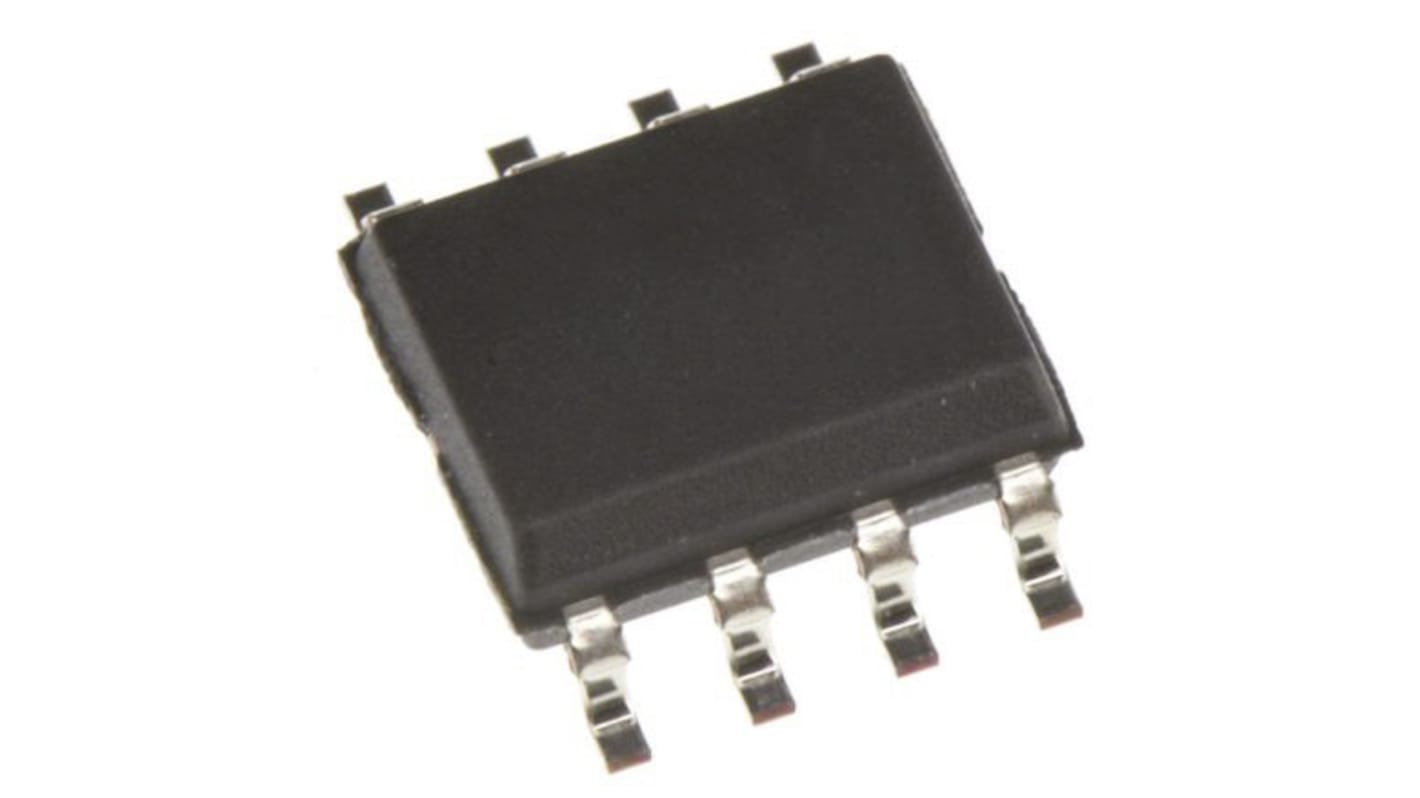

    Maxim Integrated Switching Regulator, Surface Mount, -4.8 → -5.2V dc Output Voltage, 3 → 16.5V dc Input

    Maxim Integrated
    RS-stocknr.:
    190-8244
    Fabrikantnummer:
    MAX774ESA+
    Fabrikant:
    Maxim Integrated
    Bekijk alle Switching Regulators
    158 op voorraad - levertijd is 1 werkdag(en).
    Add to Basket
    Aantal stuks

    Toegevoegd

    Prijs Each

    € 8,62

    (excl. BTW)

    € 10,43

    (incl. BTW)

    Aantal stuksPer stuk
    1 - 9€ 8,62
    10 - 24€ 7,82
    25 - 99€ 7,43
    100 - 249€ 6,15
    250 +€ 6,03
    Verpakkingsopties
    RS-stocknr.:
    190-8244
    Fabrikantnummer:
    MAX774ESA+
    Fabrikant:
    Maxim Integrated

    Datasheets


    Wetgeving en conformiteit

    Land van herkomst:
    TH

    Productomschrijving

    85% Efficiency for 5mA to 1A Load Currents
    Up to 5W Output Power
    100μA (max) Supply Current
    5μA (max) Shutdown Current
    3V to 16.5V Input Range
    -5V (MAX774), -12V (MAX775), -15V (MAX776), or Adjustable Output Voltage
    Current-Limited PFM Control Scheme
    300kHz Switching Frequency
    Applications
    Battery-Powered Applications
    Data Communications
    High-Efficiency DC-DC Converters
    LCD Bias Generators


    Specificaties

    KenmerkWaarde
    Output Voltage-4.8 → -5.2V dc
    Output Current125mA
    Input Voltage3 → 16.5V dc
    Mounting TypeSurface Mount
    Number of Outputs1
    Power Rating5W
    Efficiency82 (Typ.)%
    Maximum Temperature+70°C
    Minimum Temperature0°C
    Length5mm
    Rated Output Power5W
    Power Signal Conversion TypeDC-DC
    Width4mm
    Maximum Input Current100µA
    Switching Frequency Range300kHz
    ApplicationBattery-Powered Applications, Data Communicators, High-Efficiency DC-to-DC Converters, LCD-Bias Generators
    Depth1.5mm
    Input Power Range5W
