RS PRO MH 5130 + MSD 10 BAE Absolute Manometer With 1 Pressure Port/s, Max Pressure Measurement 10bar
- RS-stocknr.:
- 205-0968
- Fabrikant:
- RS PRO
Prijs Per stuk
€ 682,78
(excl. BTW)
€ 826,16
(incl. BTW)
2 op voorraad - levertijd is 1 werkdag(en)*
* Bezorgdata kunnen veranderen afhankelijk van de gekozen hoeveelheid en het bezorgadres.
GRATIS bezorging voor bestellingen vanaf 75,00 €
Aantal stuks | Per stuk |
---|---|
1 + | € 682,78 |
- RS-stocknr.:
- 205-0968
- Fabrikant:
- RS PRO
- Land van herkomst:
- DE

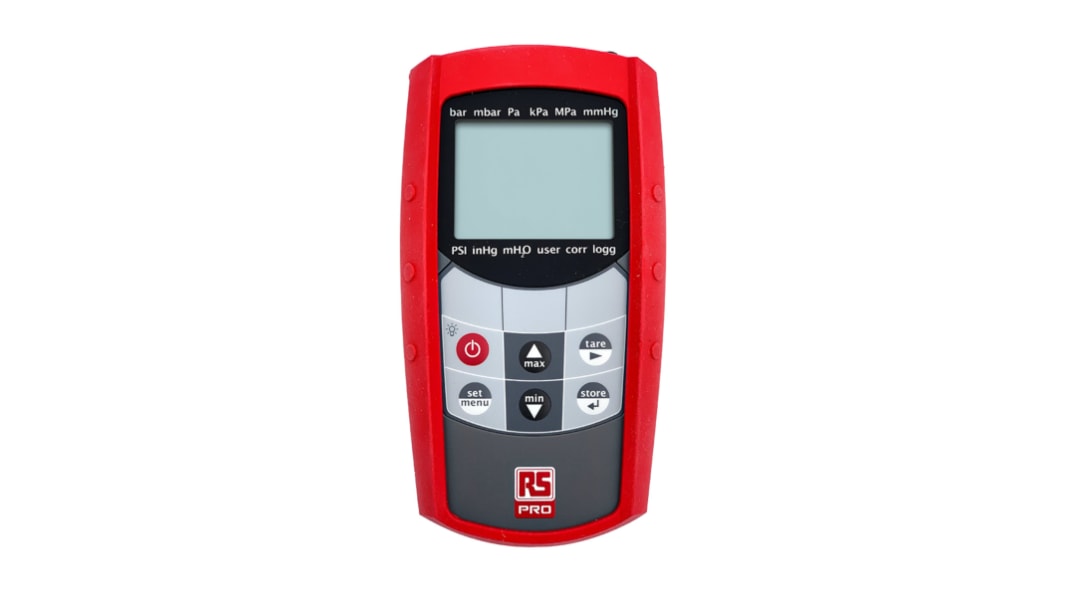

RS PRO Absolute Pressure Manometer with Stainless Steel Pressure Sensor
Introducing the RS PRO Absolute Pressure Manometer. This high-quality device from RS PRO measures airflow and pressure with high accuracy and is a compact and rugged HVAC test and measurement instrument that offers a wide variety of measurement unit options, meaning that this is a functional and versatile tool that can be used across a wide range of pressure measurement applications, whilst offering reliable and accurate readings. This RS PRO manometer has been designed for with robust plug connections, silicone protective cover and a waterproof construction, while offering the most essential features that are necessary for routine maintenance and system troubleshooting applications in harsh industrial and field environments.
Features and Benefits:
- This RS PRO manometer features 10 selectable units of measurement including bar, psi, mbar, Pa and mH2O for flexibility and additional versatility across a wide range of applications
- This device offers a simultaneous display of pressure, air velocity, airflow and temperature when required, without any delay and affecting the accuracy of the results at that point in time and improving testing efficiency
- The manometer offers a large, high-resolution LCD screen for easy viewing of results and data measurement and long battery life, while the backlit screen allows it to be used in low light environments and ducting
- It also has a leak testing function and allows max/min/avg. recording with a relative time stamp
- Heavy duty and hard-wearing, this RS PRO manometer is waterproof and impact resistant with a IP65 / IP67 rating
- The device is powered by 2 x AAA batteries with a low battery indicator and selectable auto power-off function to preserve battery life when not in use
- Supplied with: Batteries, Protective Cover and Instruction Manual
Technical Features:
- ±0.2 % FS (hysteresis and linearity) Accuracy
- ±0.02 % FS / K (TC for zero or slope) Accuracy
- ±10 bar range
- <1m second response time (typical)
Applications:
A manometer is a device that is used to measure pressure and the flow rate in the air, in gases or in liquids, depending on the application. These devices are generally compact and portable so that they can be taken to where the readings need to be measured and recorded. Manometers are versatile instruments that can be used across a wide range of industries and applications like:
- HVAC systems maintenance
- Meteorological and weather conditions monitoring
- Gas pressure monitoring in piping systems
- Fluid flow measurements
- Physiological measurements such as blood pressure
- Monitoring compressor systems operations
What is the difference between a manometer and a barometer?
Barometers or mercury manometers are devices that measure the atmospheric pressure around you. It is a very basic device that comes in a closed-end tube with a vacuum on the other end and measures as the pressure goes up or back down to the absolute pressure point. Manometers also measure atmospheric pressure this, however, in addition to this, manometers have additional features that can measure absolute pressure, differential pressure and gauge pressure and can be used in a wide range of servicing and maintenance applications to ensure that all parts that work using pressure are maintained and fully functional to ensure that downtime is limited.
What are the measurement units that this manometer can read?
This manometer measures in 10 different units: hPa, mbar, mmHg, psi, bar, Pa, kPa, MPa, inHg and mH2O
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Kenmerk | Waarde |
---|---|
Best Accuracy | 0.1 % |
Number of Pressure Ports | 1 |
Maximum Pressure Measurement | 10bar |
Minimum Pressure Measurement | 0bar |
Pressure Port Type | Absolute |
Leak Testing | Yes |
Minimum/Maximum Recordings | Yes |
Model Number p | RS MH 5130 + RS MSD 25 BAE |
Data Logging | No |
Intrinsically Safe | No |
IP Rating | IP65, IP67 |
Battery Type | AAA |
Display Type | Backlit LCD |
Overpressure Maximum | 35bar |
Weight | 250g |
Length | 86mm |
Width | 37mm |
Height | 106mm |
Maximum Operating Temperature | +50°C |
Dimensions | 160 x 86 x 37mm |
Minimum Operating Temperature | -25°C |
