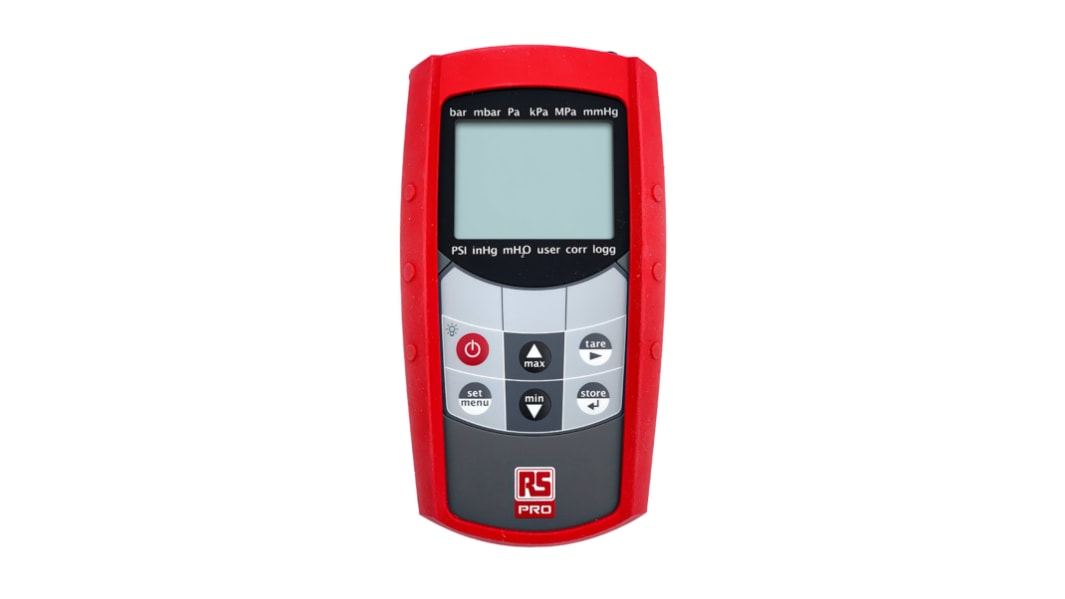

RS PRO MH 5130 + MSD 2.5 BAE Absolute Manometer With 1 Pressure Port/s, Max Pressure Measurement 2.5bar
- RS-stocknr.:
- 205-0966
- Fabrikant:
- RS PRO
Subtotaal (1 eenheid)*
€ 851,68
(excl. BTW)
€ 1.030,53
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Op voorraad
- 1 stuk(s) klaar voor verzending
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 851,68 |
*prijsindicatie
- RS-stocknr.:
- 205-0966
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Best Accuracy | ±0.2 % | |
| Number of Pressure Ports | 1 | |
| Maximum Pressure Measurement | 2.5bar | |
| Minimum Pressure Measurement | 0bar | |
| Pressure Port Type | Absolute | |
| Leak Testing | Yes | |
| Minimum/Maximum Recordings | Yes | |
| Data Logging | No | |
| Model Number p | RS MH 5130 + RS MSD 25 BAE | |
| Intrinsically Safe | No | |
| IP Rating | IP65, IP67 | |
| Battery Type | AAA | |
| Display Type | Backlit LCD | |
| Overpressure Maximum | 50bar | |
| Weight | 250g | |
| Minimum Operating Temperature | -25°C | |
| Length | 86mm | |
| Width | 37mm | |
| Dimensions | 160 x 86 x 37mm | |
| Maximum Operating Temperature | +50°C | |
| Height | 160mm | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Best Accuracy ±0.2 % | ||
Number of Pressure Ports 1 | ||
Maximum Pressure Measurement 2.5bar | ||
Minimum Pressure Measurement 0bar | ||
Pressure Port Type Absolute | ||
Leak Testing Yes | ||
Minimum/Maximum Recordings Yes | ||
Data Logging No | ||
Model Number p RS MH 5130 + RS MSD 25 BAE | ||
Intrinsically Safe No | ||
IP Rating IP65, IP67 | ||
Battery Type AAA | ||
Display Type Backlit LCD | ||
Overpressure Maximum 50bar | ||
Weight 250g | ||
Minimum Operating Temperature -25°C | ||
Length 86mm | ||
Width 37mm | ||
Dimensions 160 x 86 x 37mm | ||
Maximum Operating Temperature +50°C | ||
Height 160mm | ||
- Land van herkomst:
- DE
The RS PRO This handheld instrument is a valuable tool for demanding pressure measurements. Extremely robust plug connections, the silicone protection cover, backlight and a waterproof design allow its usage in harsh industrial and field environments.
Peak value detection (1000 measurements / s)
Large double display with background illumination
Waterproof (IP65/IP67)
Durable with long battery life
Modern compact housing.
Calibrated and fully interchangeable pressure probes
• incl. calibration protocol
Large double display with background illumination
Waterproof (IP65/IP67)
Durable with long battery life
Modern compact housing.
Calibrated and fully interchangeable pressure probes
• incl. calibration protocol
