Ewellix Makers in Motion LBHT 20 A-2LS, Bearing with 32mm Outside Diameter
- RS-stocknr.:
- 423-2330
- Fabrikantnummer:
- LBHT 20 A-2LS
- Fabrikant:
- Ewellix Makers in Motion
Bekijk alle Linear Bearings
17 op voorraad - levertijd is 1 werkdag(en).
Prijs Each
108,04 €
(excl. BTW)
130,73 €
(incl. BTW)
Aantal stuks | Per stuk |
1 - 4 | 108,04 € |
5 - 9 | 103,72 € |
10 + | 101,56 € |
- RS-stocknr.:
- 423-2330
- Fabrikantnummer:
- LBHT 20 A-2LS
- Fabrikant:
- Ewellix Makers in Motion
N.v.t.
- Land van herkomst:
- DE
Wetgeving en conformiteit
N.v.t.
- Land van herkomst:
- DE
Productomschrijving

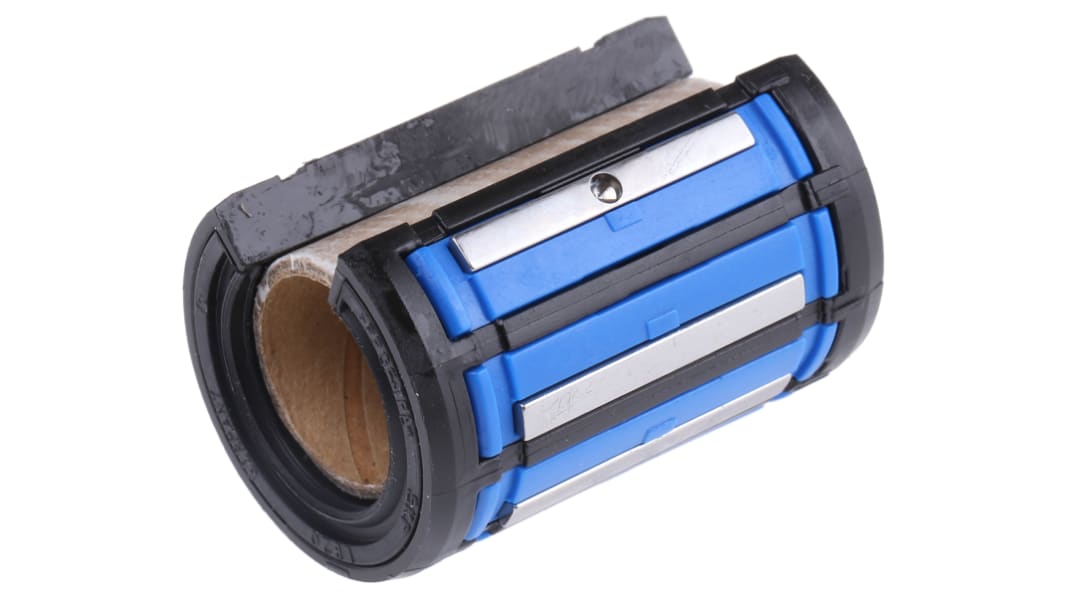

LBCT/LBHT Ball Bushings - Open
Radial and axial lip seals protect against bearing contamination
High dynamic and static load-carrying capacity
Dimensions series 3 of ISO10285
Increased shaft support
Must be located in axial direction
High dynamic and static load-carrying capacity
Dimensions series 3 of ISO10285
Increased shaft support
Must be located in axial direction

SKF Linear Ball Bushings & Sets
Closed ball bushings and plain bearings for XY positioning, pick and place applications and precision linear motion systems.,Plain bearings to be used in heavy shock, vibration, high acceleration or high speed situations which are unsuitable for linear ball bearings.,Note that higher frictional forces must be expected with linear plain bearings.,Ball bushings comprise a cage, in which the balls are guided, along with the raceway segments and integral seals,Further axial securing is often unnecessary when linear ball bearings and linear plain bearings are pressed into a J7 or J6 tolerance hole.
Specificaties
Kenmerk | Waarde |
Inside Diameter | 20mm |
Outside Diameter | 32mm |
Length | 45mm |
Linear Bearing Type | Linear Ball Bearing |
Linear Ball Bearing Type | Open |
Seals | Without Seals |
Dynamic Load Rating | 2650N |
Static Load Rating | 2650N |
