Schmersal TC 236 Safety Hinge Switch 1 NO/1 NC

RS-stocknr.:: 193-5761
Fabrikantnummer:: T3C 236-11Z
Fabrikant:: Schmersal

Schmersal TC 236 Safety Hinge Switch 1 NO/1 NC

Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 78,71

(excl. BTW)

€ 95,24

(incl. BTW)

GRATIS bezorging voor bestellingen vanaf € 75,00

Op voorraad

Plus verzending 6 stuk(s) vanaf 02 maart 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 9	€ 78,71
10 - 14	€ 75,51
15 +	€ 72,23

*prijsindicatie

RS-stocknr.:: 193-5761
Fabrikantnummer:: T3C 236-11Z
Fabrikant:: Schmersal

Specificaties

Datasheets

Wetgeving en conformiteit

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Schmersal
	Product Type	Safety Hinge Switch
	Series	TC 236
	Contact Configuration	1 NO/1 NC
	Housing Material	Plastic, Fibreglass Reinforced Thermoplastic
	Number of Cable Entries	1
	Terminal Type	M12 Connector
	IP Rating	IP67
	Cable Entry Size	M20
	Contact AC Voltage	230V ac
	Trigger Angle Range	12.5 °
	Contact DC Voltage	24V dc
	Minimum Operating Temperature	-30°C
	Shaft Length	70mm
	Contact Current	4A
	Maximum Operating Temperature	80°C
	Standards/Approvals	EAC, EN 60947-5-1, cULus, CCC, EN ISO 13849-1, BG-GS-ET-15
	Length	88.5mm
	Width	30 mm
	Mechanical Life	1000000Operations

	Alles selecteren
	Merk Schmersal
	Product Type Safety Hinge Switch
	Series TC 236
	Contact Configuration 1 NO/1 NC
	Housing Material Plastic, Fibreglass Reinforced Thermoplastic
	Number of Cable Entries 1
	Terminal Type M12 Connector
	IP Rating IP67
	Cable Entry Size M20
	Contact AC Voltage 230V ac
	Trigger Angle Range 12.5 °
	Contact DC Voltage 24V dc
	Minimum Operating Temperature -30°C
	Shaft Length 70mm
	Contact Current 4A
	Maximum Operating Temperature 80°C
	Standards/Approvals EAC, EN 60947-5-1, cULus, CCC, EN ISO 13849-1, BG-GS-ET-15
	Length 88.5mm
	Width 30 mm
	Mechanical Life 1000000Operations

Vrijgesteld

Land van herkomst:: DE

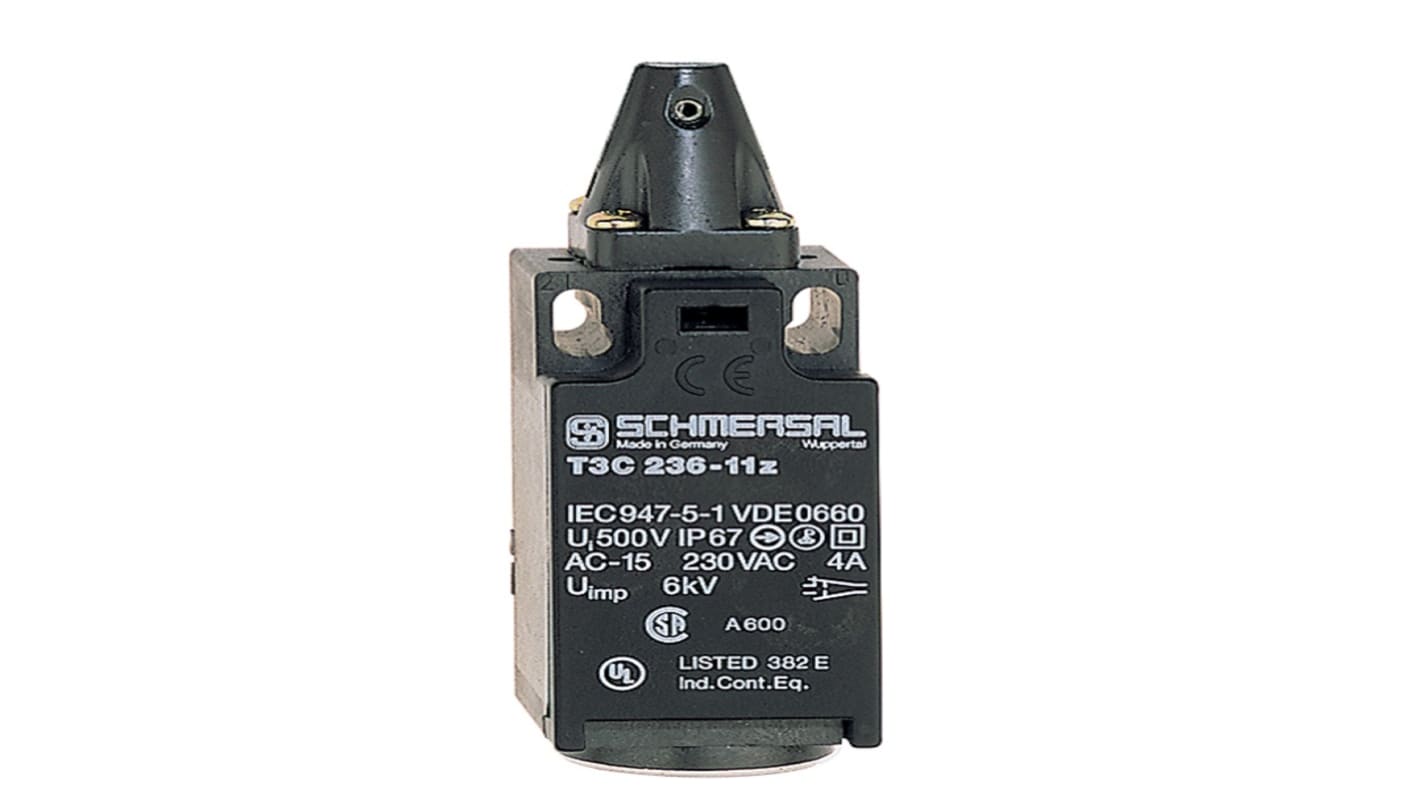

Schmersal Safety Hinge Switch, 4A Maximum Current, M20 - TC 236 Series - T3C 236-11Z

Protect personnel from hazards and machinery from damage with this safety hinge switch from Schmersal. It's commonly used in automated assembly lines that are in constant use. The safety hinge switch disconnects power to active machine operations when a protected door or guard is opened. It connects to the hinge pin on a medium-sized door and isolates machine power when the connected hinge is turned 4.5°. This ensures an extra-sensitive and rapid response to enhance workplace safety quickly and efficiently.

Features & Benefits

• NO/NC (normally open/normally closed) contacts for adjustable state configuration

• Maximum current of 4A for use in low-current applications

• Shaft length of 70mm provides a deep switch fitting to prevent loosening

• M20 conduit entry for secure installation into medium-sized hinge pins

• Works with both AC (alternating current) and DC (direct current) for versatile use

Applications

• Food processing

• Packaging applications

• Printing industry

• Laboratory equipment

• Machine automation

Is this safety hinge switch suitable for use in extreme temperatures?

Yes, this safety hinge switch has a broad operating temperature range of -30°C to +80°C for use in a variety of demanding environments.

T.C 236, Hinge Slider

These switches are designed for hinged guards and have a built-in actuator lever which operates the contact block with a positive mechanical linkage

N/C safety contact positively disconnected after just 4.5° rotation

Head can be turned in any one of four 90° positions

Slow action contact system

The housing with snap-on cover fastened without screws to facilitate easy connection

Hinge Switch

Note

It is important to select the correct lever model dependent upon the position of the hinge on the guard

Standards

IEC947-5-1/EN60947-5-1/DIN VDE 0660 Part 200; BG-GS-ET-15; DIN EN 50047; BS5304
