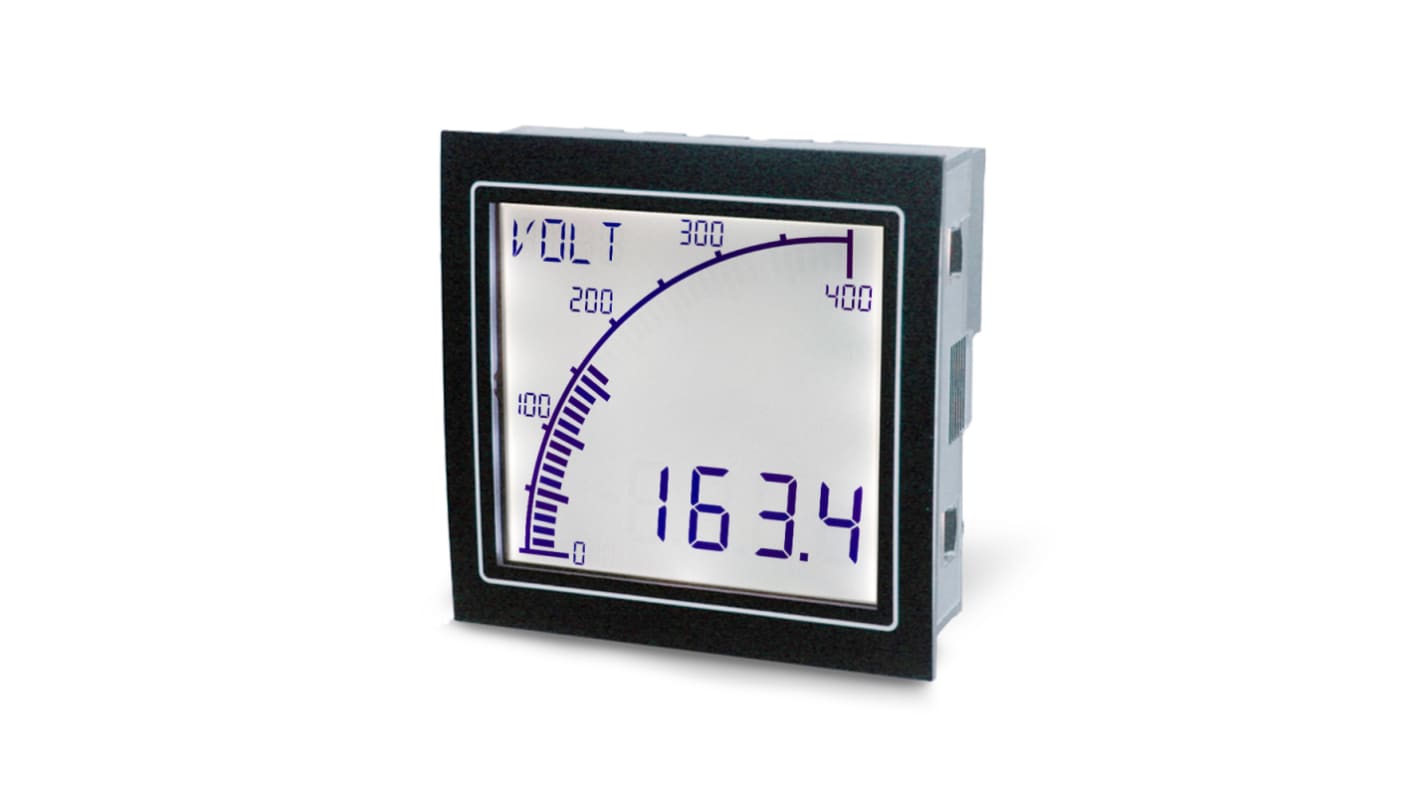

Trumeter Digital Voltmeter AC, DC, LCD Display 4-Digits 0.01

The Trumeter APM is the most visible, easy to use, multi-format, programmable panel meter on the market.
The APM Digital panel voltmeter provides a flexible voltage measuring input, capable of measuring both AC and DC voltages. Easy to install, it also automatically detects AC or DC signals, boasting input ranges of 600 V dc or 528 V ac. The voltmeter is supplied with an easily programmable scale that allows you to set a bar graph scale to your own specifications. It also has 15 built-in configurations that allow you to programme centre zero, positive and negative scales.

• Large 4-digit LCD display
• 40 segment bar graph display
• Separate starburst display area for annunciators, custom messages and alarm information
• User-adjustable back light brightness, colour and intensity
• 1% accuracy
• Wide viewing angle
• Custom annunciators
• 2 Independent outputs (output models only)
• 2 Independent alarm set-points
• 00-600 V dc, 0-528 V ac input range
• 4-20 mA analogue monitor output (output models only)
• USB port to connect to PC for custom user settings
• IP65 protection

All Trumeter products come with a 3 year manufacturer's warranty

The APM (Advanced Panel Meter) Volt Meter is digital voltmeter designed for measuring mains voltage in applications such as control panels and power supplies. It automatically detects AC or DC input, measures up to 600V, and provides 1% accuracy. The unique display combines the readability of analogue with the precision of digital, with large readout, 40-segment bar graph, and colour-changing backlight that provides instant feedback on conditions. It is highly customizable through the free APM configuration software, including scale and range, alarms, colour changing, messaging and more. It features two independent outputs that can be used as digital (open collector) or analogue (4-20mA).

Combine the APM with the APM IoT Gateway to instantly unlock your data using the powerful remote monitoring platform, Trumeter Cloud. Monitor your meters anytime, anywhere with your free subscription, and receive data recording along with online, SMS, and email alerts.

The negative display, for darker environments where high contrast is required, features colour changing figures on a black background.

• 0-600V AC and DC
• 1% accuracy
• Fully user-configurable digital panel meter
• Scaling and range options including min. and max, offset and gain, x10 scaling factor, centre zero, 20-point non-linearization scaling and more.
• Dynamic colour-changing backlight - green, red, white
• Remote monitoring with Trumeter Cloud when used with Trumeter APM IoT Gateway
• 40-segment bar graph display
• Large, high contrast, anti-glare, LCD display with wide viewing angle
• Starburst display area for messages and alarm information
• 10 alarm setpoints & configurable digital output delay
• Two independent outputs as digital or analogue (4-20 mA)
• Wide viewing angle
• IP65 protection

All Trumeter products come with a 3-year manufacturer's warranty

Trumeter APM Digital Panel Volt Meter
