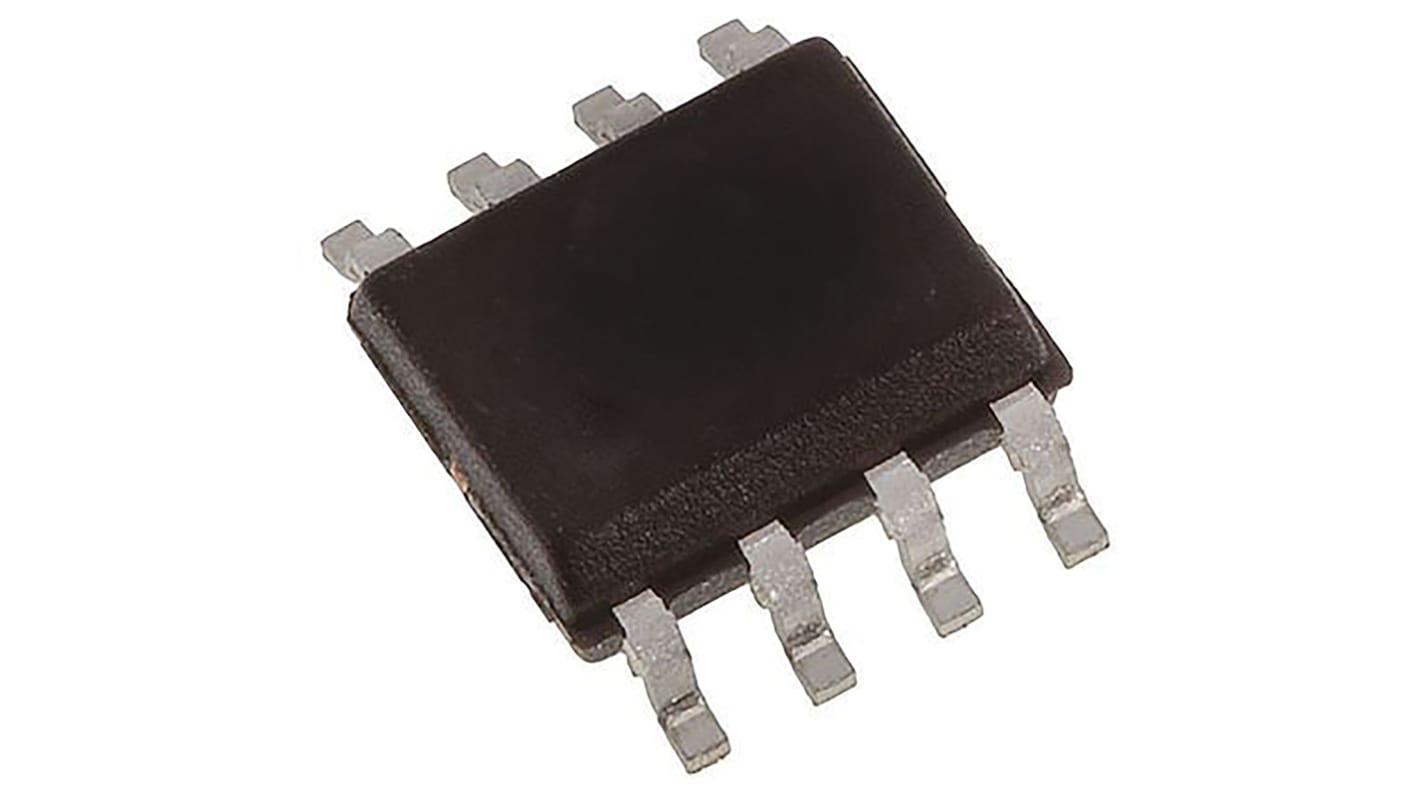

Analog Devices ADP7104ARDZ-R7, 1-Channel Low Noise LDO, Regulator, 500 mA, 1.22/19 V, SOIC 8-Pin
- RS-stocknr.:
- 809-9809
- Fabrikantnummer:
- ADP7104ARDZ-R7
- Fabrikant:
- Analog Devices
Subtotaal (1 verpakking van 2 eenheden)*
€ 4,88
(excl. BTW)
€ 5,90
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Tijdelijk niet op voorraad
- Verzending 852 stuk(s) vanaf 26 december 2025
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 2 + | € 2,44 | € 4,88 |
*prijsindicatie
- RS-stocknr.:
- 809-9809
- Fabrikantnummer:
- ADP7104ARDZ-R7
- Fabrikant:
- Analog Devices
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Analog Devices | |
| Product Type | Regulator | |
| Regulator Type | Low Noise LDO | |
| Number of Outputs | 1 | |
| Output Voltage | 1.22/19 V | |
| Line Regulation | 0.015 %/V | |
| Polarity | Positive | |
| Mount Type | Surface | |
| Quiescent Current | 1mA | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Output Current | 500mA | |
| Output Type | Adjustable | |
| Switching Regulator | No | |
| Length | 5mm | |
| Width | 4 mm | |
| Standards/Approvals | No | |
| Series | ADP7104 | |
| Height | 1.65mm | |
| Maximum Input Voltage | 20V | |
| Minimum Input Voltage | 3.3V | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk Analog Devices | ||
Product Type Regulator | ||
Regulator Type Low Noise LDO | ||
Number of Outputs 1 | ||
Output Voltage 1.22/19 V | ||
Line Regulation 0.015 %/V | ||
Polarity Positive | ||
Mount Type Surface | ||
Quiescent Current 1mA | ||
Package Type SOIC | ||
Pin Count 8 | ||
Output Current 500mA | ||
Output Type Adjustable | ||
Switching Regulator No | ||
Length 5mm | ||
Width 4 mm | ||
Standards/Approvals No | ||
Series ADP7104 | ||
Height 1.65mm | ||
Maximum Input Voltage 20V | ||
Minimum Input Voltage 3.3V | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||
LDO (Low Dropout) Linear Voltage Regulators, Adjustable Output, Analog Devices
The Analog Devices Low Dropout (LDO) Linear Regulators offer fast transient response, excellent line and load regulation, and they have a wide input voltage range.
LDO (Low Dropout) Linear Voltage Regulator - Analog Devices
The Low dropout or LDO is a linear voltage regulator. We have a wide range of linear regulators. The LDO regulator can operate with a small input–output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.
