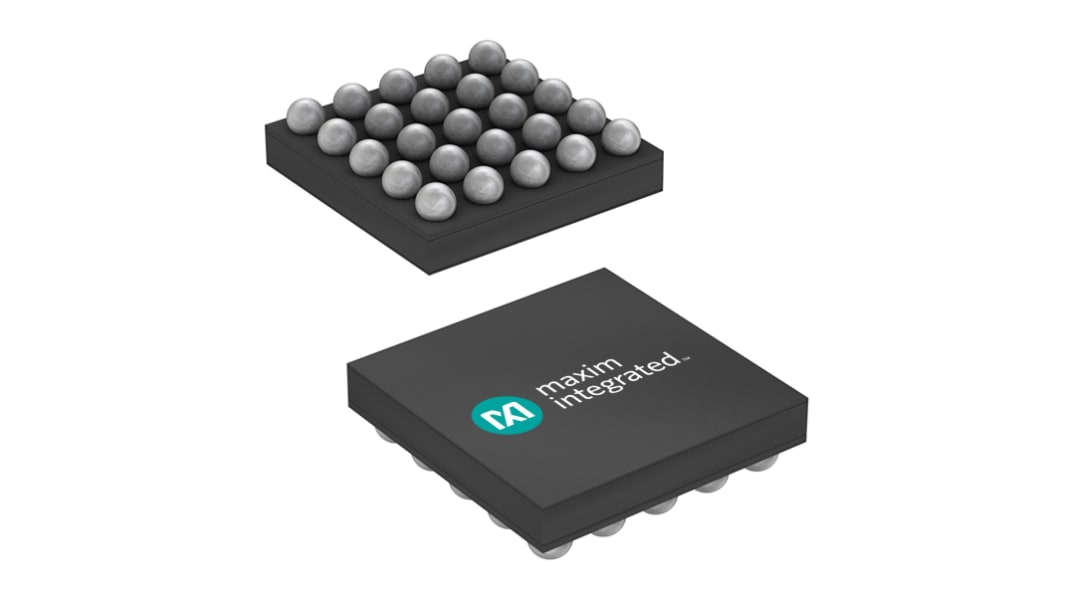

Maxim Integrated, Low Dropout Voltage Regulator 5.5V WLP 25-Pin
- RS-stocknr.:
- 217-7692
- Fabrikantnummer:
- MAX77642ANA+T
- Fabrikant:
- Maxim Integrated
Niet beschikbaar
RS heeft dit product niet meer op voorraad.
- RS-stocknr.:
- 217-7692
- Fabrikantnummer:
- MAX77642ANA+T
- Fabrikant:
- Maxim Integrated
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Maxim Integrated | |
| Product Type | Low Dropout Voltage Regulator | |
| Package Type | WLP | |
| Mount Type | Surface | |
| Quiescent Current | 2.4μA | |
| Pin Count | 25 | |
| Series | MAX77642 | |
| Length | 2.06mm | |
| Width | 2.06 mm | |
| Height | 0.5mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 125°C | |
| Maximum Input Voltage | 5.5V | |
| Minimum Input Voltage | 2.7V | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk Maxim Integrated | ||
Product Type Low Dropout Voltage Regulator | ||
Package Type WLP | ||
Mount Type Surface | ||
Quiescent Current 2.4μA | ||
Pin Count 25 | ||
Series MAX77642 | ||
Length 2.06mm | ||
Width 2.06 mm | ||
Height 0.5mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 125°C | ||
Maximum Input Voltage 5.5V | ||
Minimum Input Voltage 2.7V | ||
Automotive Standard No | ||
The Maxim Integrated MAX77642 provide power supply solution for low-power application where size and efficiency are critical. The IC feature a SIMO buck-boost regulator that provide three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provide ripple rejection for audio and other noise-sensitive application.
Ultra low-power SIMO
Ultra-configurable resistor programmable output voltage
0.3μA shutdown current
