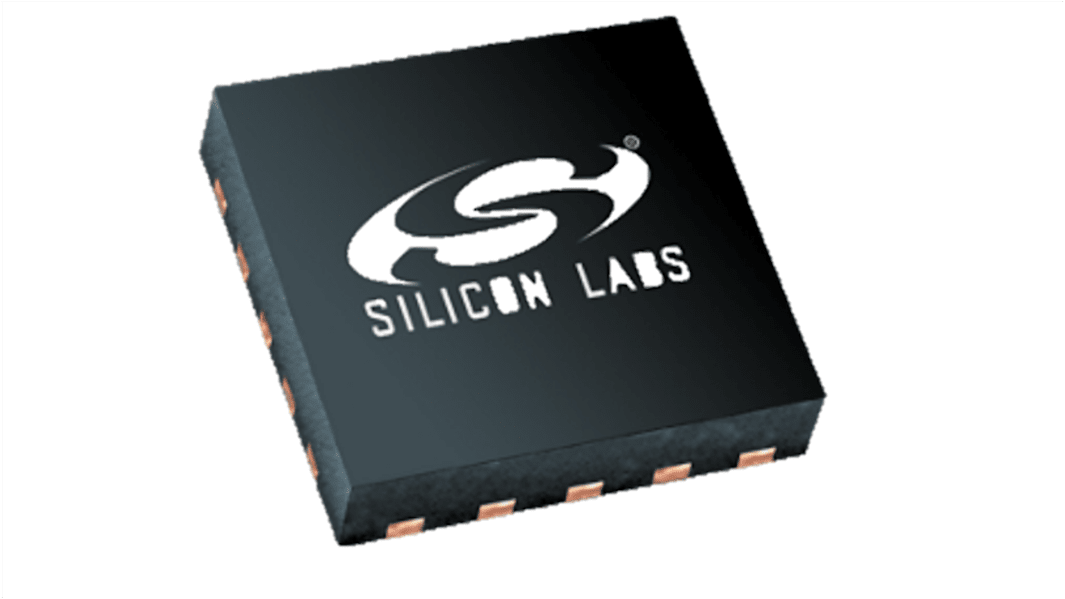

Silicon Labs CP2102N-A02-GQFN28, USB Controller, 12Mbps, USB 2.0, 3 to 3.6 V, 28-Pin QFN
- RS-stocknr.:
- 187-1332
- Fabrikantnummer:
- CP2102N-A02-GQFN28
- Fabrikant:
- Silicon Labs
Subtotaal (1 tube van 73 eenheden)*
€ 206,59
(excl. BTW)
€ 249,66
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Op voorraad
- 292 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 803 stuk(s) vanaf 22 december 2025
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per tube* |
|---|---|---|
| 73 + | € 2,83 | € 206,59 |
*prijsindicatie
- RS-stocknr.:
- 187-1332
- Fabrikantnummer:
- CP2102N-A02-GQFN28
- Fabrikant:
- Silicon Labs
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Silicon Labs | |
| Number of Transceivers | 1 | |
| Data Rate | 12Mbps | |
| IC Type | Controller IC | |
| Protocols Supported | USB 2.0 | |
| Power Supply Type | Single | |
| ESD Protection | Yes | |
| Typical Single Supply Voltage | 3 to 3.6 V | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Pin Count | 28 | |
| Dimensions | 5 x 5 x 0.75mm | |
| Height | 0.75mm | |
| Length | 5mm | |
| Maximum Operating Temperature | +85 °C | |
| Width | 5mm | |
| Minimum Operating Temperature | -40 °C | |
| Alles selecteren | ||
|---|---|---|
Merk Silicon Labs | ||
Number of Transceivers 1 | ||
Data Rate 12Mbps | ||
IC Type Controller IC | ||
Protocols Supported USB 2.0 | ||
Power Supply Type Single | ||
ESD Protection Yes | ||
Typical Single Supply Voltage 3 to 3.6 V | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 28 | ||
Dimensions 5 x 5 x 0.75mm | ||
Height 0.75mm | ||
Length 5mm | ||
Maximum Operating Temperature +85 °C | ||
Width 5mm | ||
Minimum Operating Temperature -40 °C | ||
The Silicon Labs CP2102N devices, part of the USBXpress family, are designed to quickly add USB to applications by eliminating firmware complexity and reducing development time. These highly-integrated USB-to-UART bridge controllers provide a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. These devices include a USB 2.0 full-speed function controller, USB transceiver, oscillator, and Universal Asynchronous Receiver/Transmitter (UART) in packages as small as 3 mm x 3 mm. No other external USB components are required for development. All customization and configuration options can be selected using a simple GUI-based configurator. By eliminating the need for complex firmware and driver development, the CP2102N devices enable quick USB connectivity with minimal development effort.
