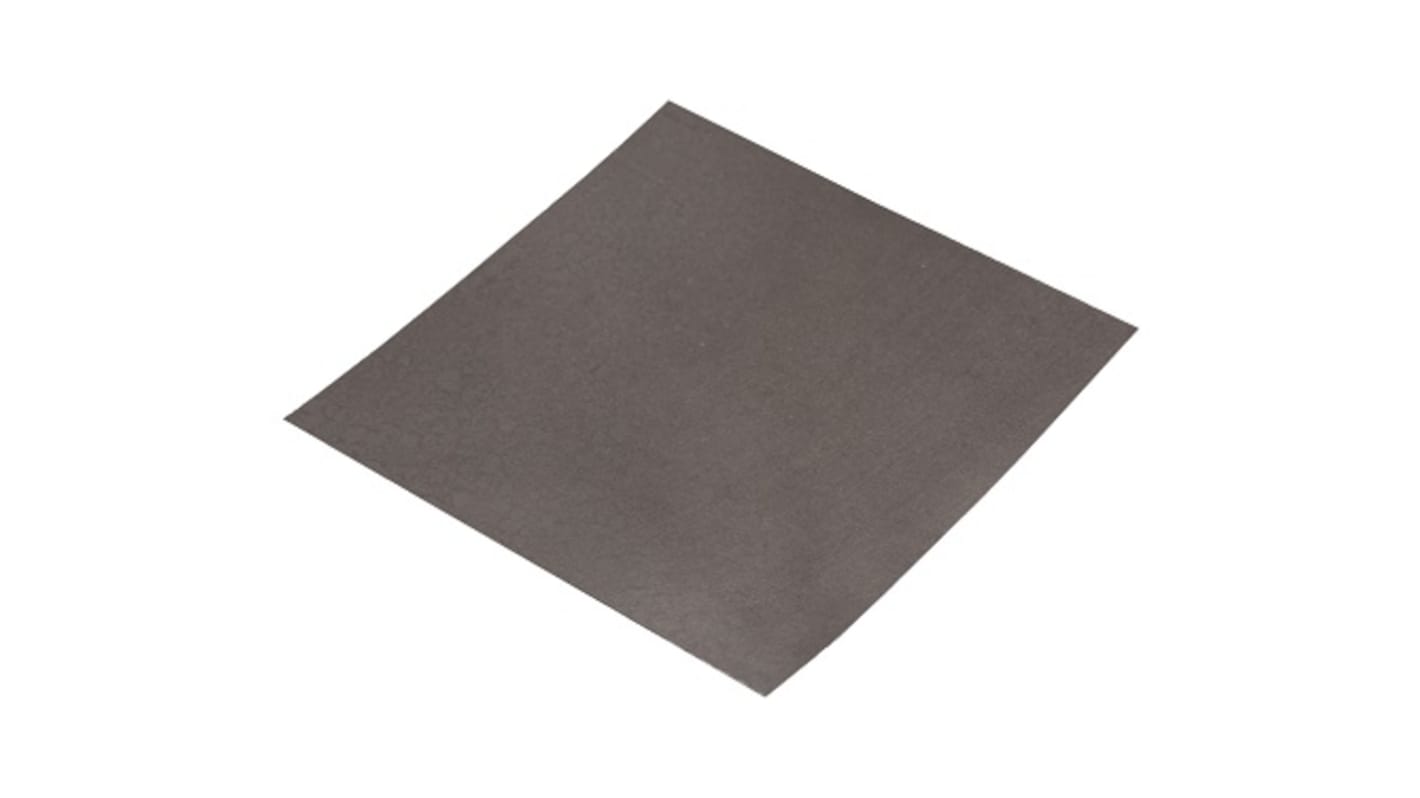

RS PRO Thermal Interface Sheet, 0.07mm Thick, 1000W/m·K, Graphite, 90 x 115mm
- RS-stocknr.:
- 245-7314
- Fabrikant:
- RS PRO
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 14,34
(excl. BTW)
€ 17,35
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Op voorraad
- 28 stuk(s) klaar voor verzending
- Plus verzending 25 stuk(s) vanaf 14 januari 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 9 | € 14,34 |
| 10 - 99 | € 13,63 |
| 100 + | € 10,74 |
*prijsindicatie
- RS-stocknr.:
- 245-7314
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Dimensions | 90 x 115mm | |
| Thickness | 0.07mm | |
| Length | 115mm | |
| Width | 90mm | |
| Diameter | 115mm | |
| Thermal Conductivity | 1000W/m·K | |
| Material | Graphite | |
| Self-Adhesive | No | |
| Maximum Operating Temperature | 400°C | |
| Colour | Grey | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Dimensions 90 x 115mm | ||
Thickness 0.07mm | ||
Length 115mm | ||
Width 90mm | ||
Diameter 115mm | ||
Thermal Conductivity 1000W/m·K | ||
Material Graphite | ||
Self-Adhesive No | ||
Maximum Operating Temperature 400°C | ||
Colour Grey | ||
- Land van herkomst:
- CN
RS PRO Crystallised Graphite Thermal Pad
RS PRO crystallised graphite thermal pads are highly orientated graphite sheets designed for thermal management as well as providing a reduction in vibration and shock damage to internal components.
RS PRO Graphite sheets are flexible and thin enabling them to be cut into shape easily and are constructed from highly thermal conductive Graphite, ideal for providing thermal management or heatsinking in limited spaces or as a heat spreader at an interface level.
Features and Benefits
- High thermal conductivity
- Low thermal resistance
- Lightweight and easy to cut
- RoHS compliant
Applications
- Smart phones and tablets
- Electronic components
- Flat panel displays
- LED displays
- Engine control units
- Computer hard drives
