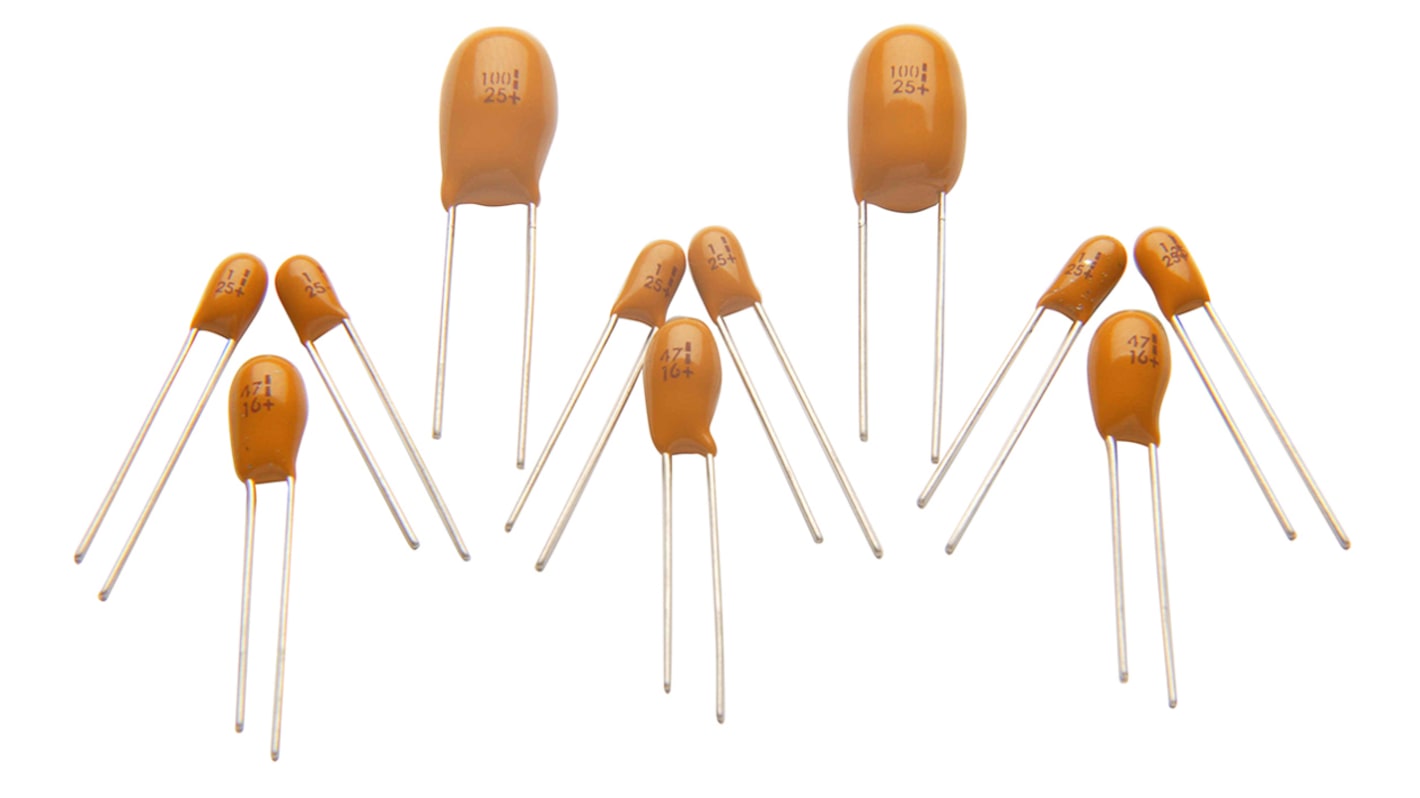

RS PRO 150μF Electrolytic Tantalum Electrolytic Capacitor 16V dc
- RS-stocknr.:
- 181-4568
- Fabrikant:
- RS PRO
Momenteel niet beschikbaar
We weten niet of dit artikel weer voorradig zal zijn, het wordt door de fabrikant stopgezet.
- RS-stocknr.:
- 181-4568
- Fabrikant:
- RS PRO
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Technology | Electrolytic | |
| Capacitance | 150µF | |
| Voltage | 16V dc | |
| Mounting Type | Through Hole | |
| Package/Case | F | |
| Lead Pitch | 5mm | |
| Tolerance | ±20% | |
| Length | 9.5mm | |
| Depth | 9.5mm | |
| Height | 16.5mm | |
| Dimensions | 9.5 x 9.5 x 16.5mm | |
| Electrolyte Type | Solid | |
| Maximum Operating Temperature | +125°C | |
| Polarised | Positive | |
| Minimum Operating Temperature | -55°C | |
| Tolerance Plus | +20% | |
| Lead Diameter | 0.5mm | |
| Leakage Current | 500 nA | |
| Dissipation Factor | <lteq/>0.1% | |
| Dielectric Material Family | Tantalum | |
| Tolerance Minus | -20% | |
