RS PRO, TM-HS-BU Heat Shrink Splice Connector, Blue, Uninsulated 16 AWG
- RS-stocknr.:
- 819-9874
- Fabrikant:
- RS PRO
Bulkkorting beschikbaar
Subtotaal (1 zak van 10 eenheden)*
€ 15,63
(excl. BTW)
€ 18,91
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Op voorraad
- Plus verzending 220 stuk(s) vanaf 04 mei 2026
- Plus verzending 3.650 stuk(s) vanaf 04 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per Zak* |
|---|---|---|
| 10 - 140 | € 1,563 | € 15,63 |
| 150 - 490 | € 1,487 | € 14,87 |
| 500 + | € 1,407 | € 14,07 |
*prijsindicatie
- RS-stocknr.:
- 819-9874
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Splice Type | Heat Shrink | |
| Product Type | Splice Connector | |
| Overall Length | 36mm | |
| Minimum Wire Size AWG | 22AWG | |
| Diameter | 6.9mm | |
| Maximum Wire Size AWG | 16AWG | |
| Insulation | Uninsulated | |
| Colour | Blue | |
| Series | TM-HS-BU | |
| Contact Material | Copper | |
| Termination Type | Crimp | |
| Standards/Approvals | No | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Splice Type Heat Shrink | ||
Product Type Splice Connector | ||
Overall Length 36mm | ||
Minimum Wire Size AWG 22AWG | ||
Diameter 6.9mm | ||
Maximum Wire Size AWG 16AWG | ||
Insulation Uninsulated | ||
Colour Blue | ||
Series TM-HS-BU | ||
Contact Material Copper | ||
Termination Type Crimp | ||
Standards/Approvals No | ||

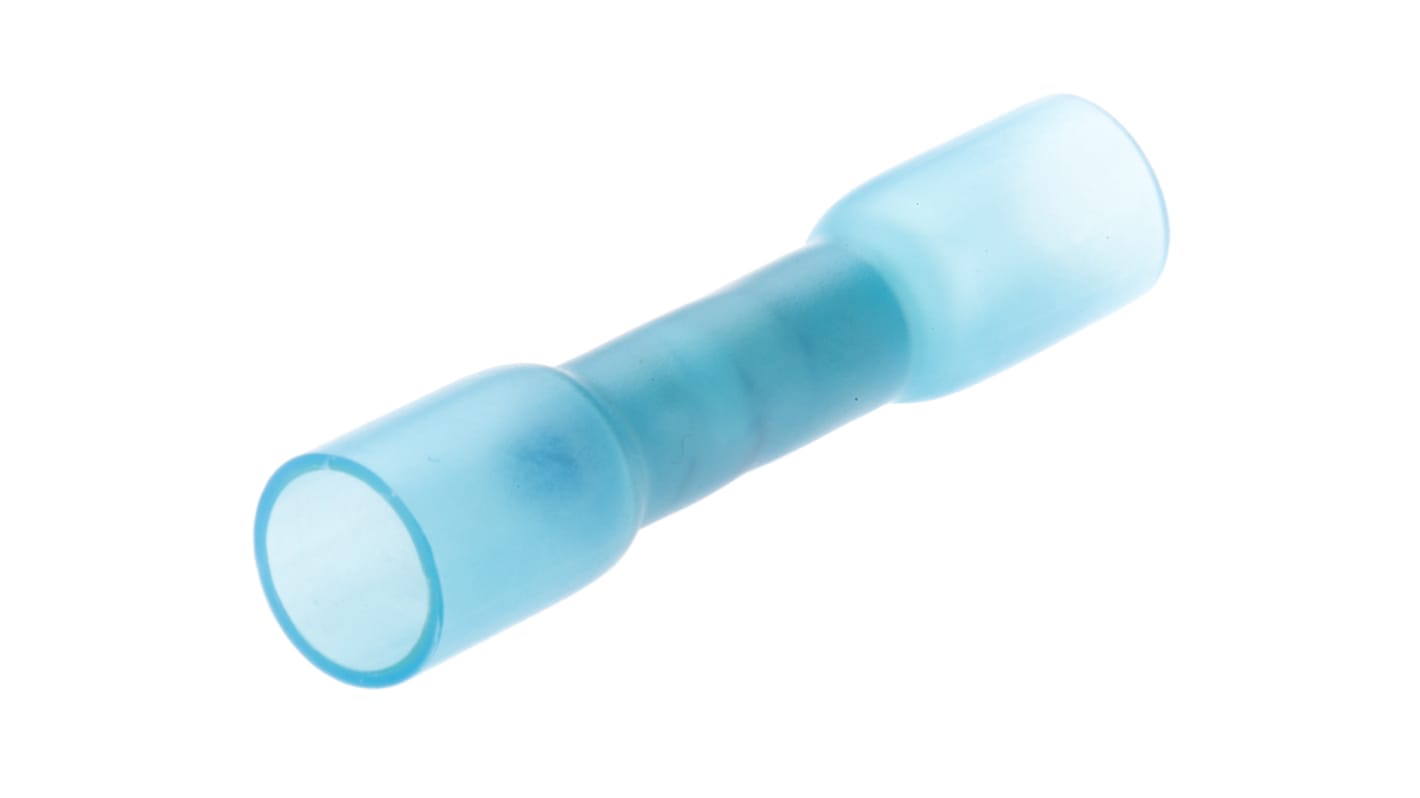

RS PRO Blue Crimp Splice
This crimp splice from RS PRO provides a secure join between electrical wires and seals them from moisture, strain and environmental damage. You don't need special tools to apply it as it's made from heat-shrinkable material that contracts when warmed with a heat gun.
The crimp splice is ready-to-use and has durable thermoplastic sealing rings on either end for a watertight connection. Inside, there are solder rings that melt around the joining wires. This creates an integral seal and guarantees that no contaminates or dirt will disrupt the function of your conductors.
You can use this connector to splice two or more electrical wires together. It's made of copper which has high electrical conductivity and won't interfere with the power supply of your cables. Copper is also corrosion-resistant and will stop your connection from rusting.
Features and Benefits
• Operating temperature range of -55°C to +125°C
• Shrink temperature of +150°C
• Voltage rating of 600 V
• Sleeve length of 35 mm
• RoHS (Restriction of Hazardous Substances) compliant
