RS PRO Open Barrel Double Crimp Receptacle, Uninsulated, Tin 18 AWG
- RS-stocknr.:
- 178-7178
- Fabrikant:
- RS PRO
Ontvang bulkkorting
Voeg 1000 meer toe om 8% te besparen
Bekijk bulkkortingSubtotaal (1 zak van 100 eenheden)*
€ 6,20
(excl. BTW)
€ 7,50
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Op voorraad
- Plus verzending 800 stuk(s) vanaf 20 november 2026
- Plus verzending 2.000 stuk(s) vanaf 05 januari 2027
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per Zak* | Bespaar |
|---|---|---|---|
| 100 - 900 | € 0,062 | € 6,20 | - |
| 1000 - 1900 | € 0,057 | € 5,70 | 8% |
| 2000 - 4900 | € 0,051 | € 5,10 | 17% |
| 5000 - 9900 | € 0,047 | € 4,70 | 24% |
| 10000 + | € 0,043 | € 4,30 | 30% |
*prijsindicatie
- RS-stocknr.:
- 178-7178
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Product Type | Double Crimp Receptacle | |
| Splice Type | Open Barrel | |
| Overall Length | 19mm | |
| Minimum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Maximum Wire Size mm² | 0.75mm² | |
| Insulation | Uninsulated | |
| Contact Dimensions | 19 x 6.5 mm | |
| Series | RS PRO | |
| Contact Length | 19mm | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Termination Type | Crimp | |
| Standards/Approvals | No | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Product Type Double Crimp Receptacle | ||
Splice Type Open Barrel | ||
Overall Length 19mm | ||
Minimum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 18AWG | ||
Maximum Wire Size mm² 0.75mm² | ||
Insulation Uninsulated | ||
Contact Dimensions 19 x 6.5 mm | ||
Series RS PRO | ||
Contact Length 19mm | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Termination Type Crimp | ||
Standards/Approvals No | ||
- Land van herkomst:
- TW

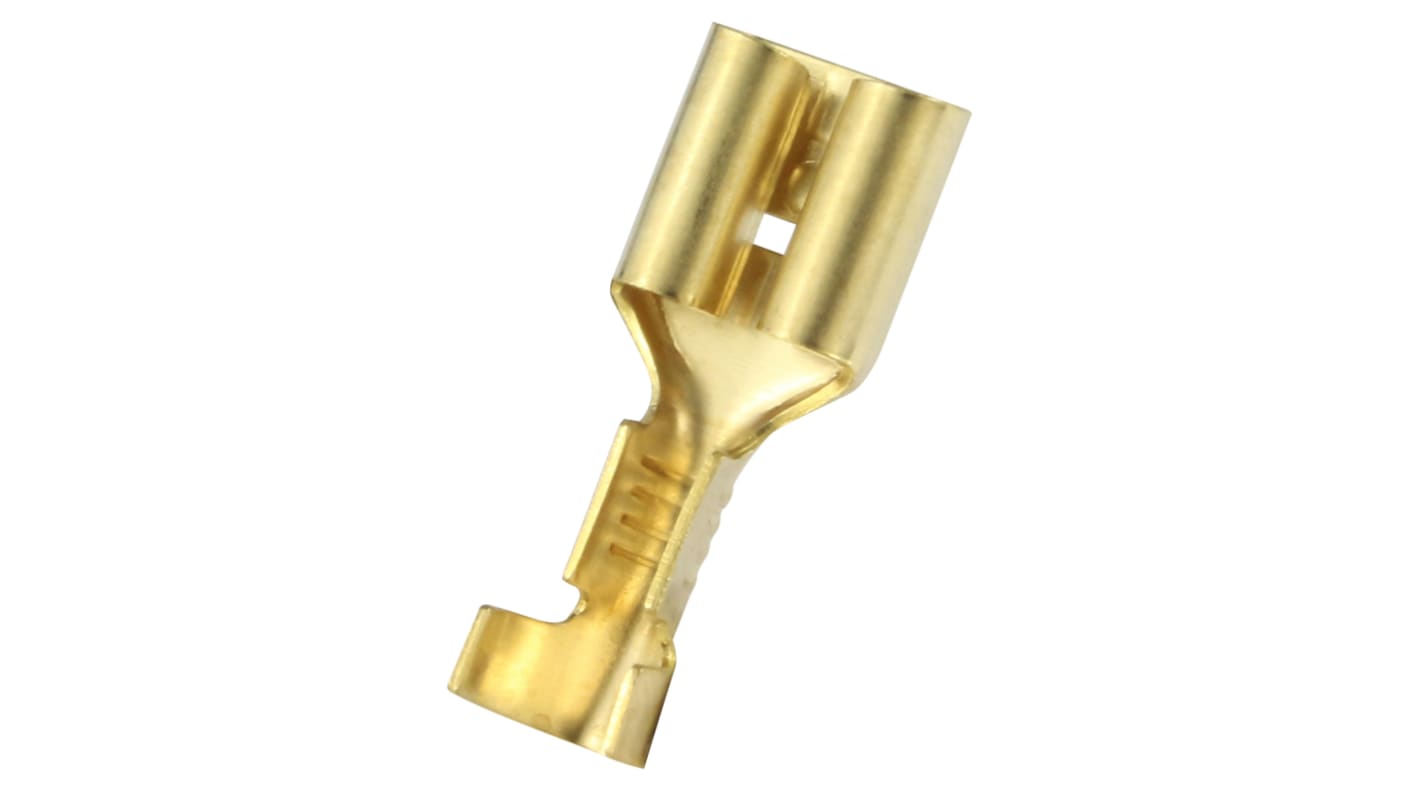

RS PRO Uninsulated Brass Open Barrel Crimp Connector, Female
From our trusted and reliable own brand RS PRO, a range of high quality and affordable female crimp receptacles, ideal for applications that require solderless crimping of wire strands. These robust female spade connectors feature a brass construction, offering excellent connectivity with great resistance to corrosion. RS PRO uninsulated spade connectors are available in a variety of sizes offering flexibility for a range of applications.
Features and Benefits
Applications
Open barrel crimp receptacles are a type of crimping connector ideal for wire strand installations that require quick and effective connect and disconnect solutions. They are available in a wide range of AWG sizes with male and female options available and are commonly used in are such as:
Why RS PRO?
RS PRO is our own brand range and brings you a wide selection of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
