TE Connectivity Tap Splice Connector, Blue, Insulated, Tin 12 AWG
- RS-stocknr.:
- 136-1656
- Fabrikantnummer:
- 735398-0
- Fabrikant:
- TE Connectivity
Subtotaal (1 zak van 100 eenheden)*
€ 158,40
(excl. BTW)
€ 191,70
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Op voorraad
- 100 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 3.000 stuk(s) vanaf 30 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per Zak* |
|---|---|---|
| 100 + | € 1,584 | € 158,40 |
*prijsindicatie
- RS-stocknr.:
- 136-1656
- Fabrikantnummer:
- 735398-0
- Fabrikant:
- TE Connectivity
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | TE Connectivity | |
| Splice Type | Tap | |
| Product Type | Splice Connector | |
| Overall Length | 17.5mm | |
| Minimum Wire Size AWG | 16AWG | |
| Diameter | 12.5mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 12AWG | |
| Colour | Blue | |
| Insulation Material | Glass Filled Nylon | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Termination Type | Crimp | |
| Standards/Approvals | RoHS | |
| Alles selecteren | ||
|---|---|---|
Merk TE Connectivity | ||
Splice Type Tap | ||
Product Type Splice Connector | ||
Overall Length 17.5mm | ||
Minimum Wire Size AWG 16AWG | ||
Diameter 12.5mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 12AWG | ||
Colour Blue | ||
Insulation Material Glass Filled Nylon | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Termination Type Crimp | ||
Standards/Approvals RoHS | ||

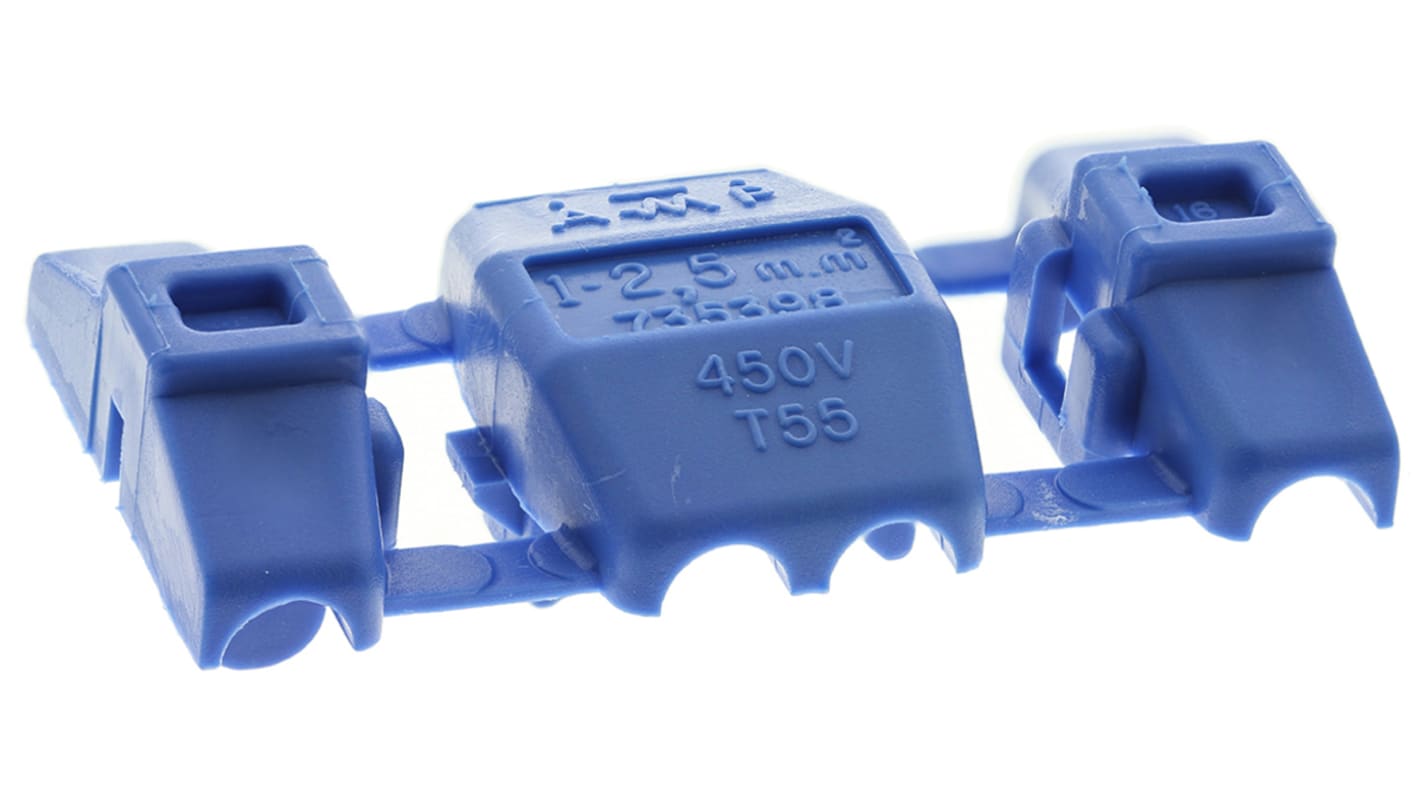

TE Connectivity ELECTRO-TAP Splices
ELECTRO-TAP splices offer an economic method of joining branch or tap wire to solid or stranded for wire ranges 0.5mm - 6.0mm² using insulation displacement self-stripping contacts. These ELECTRO-TAP splice connectors have colour coded nylon housings which double lock when closed. Please see additional data table for insulation diameter and tap wire range.
Can be applied using standard pliers
Approvals
-
