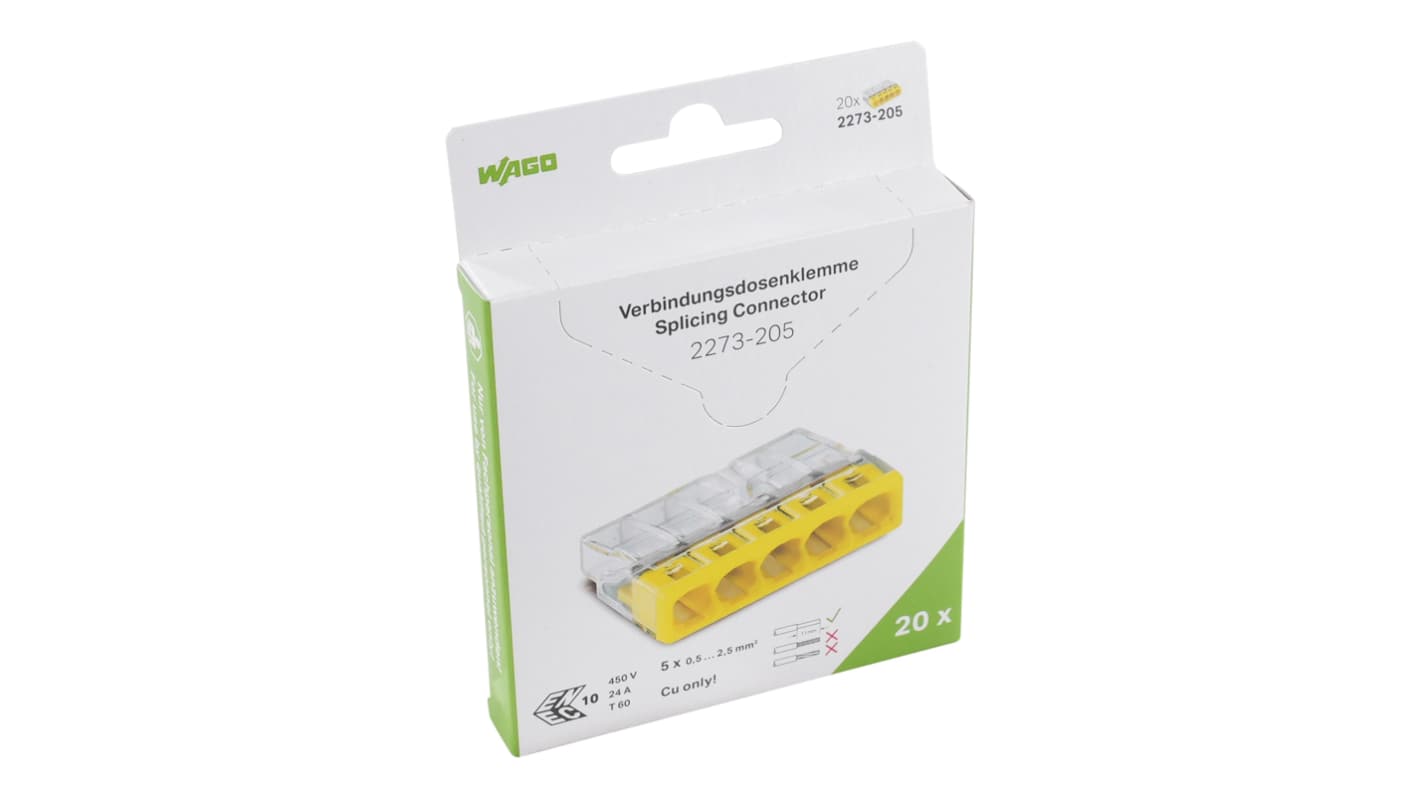

WAGO, 2273 Wire Splice Splice Connector, Clear Insulation, Tin 2.5 mm²

The Wago PUSH WIRE splicing connector is designed for solid conductors with a maximum cross-section of 2.5 mm² and supports up to 5 conductors. It features a transparent housing with a yellow cover and operates at a surrounding air temperature of up to 60°C (T60). The connector offers convenient wiring due to its extremely compact design and allows push-in termination of up to eight solid conductors. It supports a cross-section range of 0.5 to 2.5 mm², with any combination of conductor sizes being possible. The PUSH WIRE® connection is specifically designed for terminating solid copper conductors.

Color transparent
Cover color yellow
Insulation material main housing Polycarbonate PC
