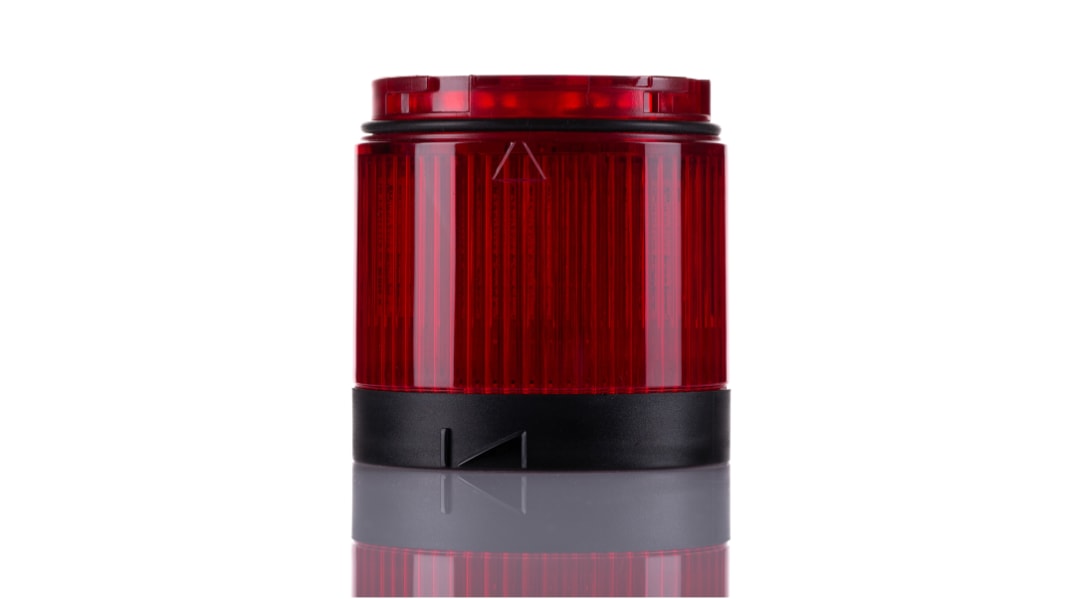

Allen Bradley 856T Series Red Rotating Effect Beacon Tower, LED Bulb 24V ac/dc, AC/DC, IP67, IP66
- RS-stocknr.:
- 183-4406
- Artikelnummer Distrelec:
- 302-27-812
- Fabrikantnummer:
- 856T-BR4
- Fabrikant:
- Allen Bradley
Subtotaal (1 eenheid)*
€ 204,71
(excl. BTW)
€ 247,70
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Op voorraad
- Plus verzending 1 stuk(s) vanaf 17 november 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 204,71 |
*prijsindicatie
- RS-stocknr.:
- 183-4406
- Artikelnummer Distrelec:
- 302-27-812
- Fabrikantnummer:
- 856T-BR4
- Fabrikant:
- Allen Bradley
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Allen Bradley | |
| Series | 856T | |
| Product Type | Beacon Tower | |
| Minimum Sound Level | 85dB | |
| Component Type | Beacon | |
| Multifunction | No | |
| Current Type | AC/DC | |
| Sounder Type | Horn | |
| Current Consumption | 57mA | |
| Light Effect | Rotating | |
| Mount Type | Base | |
| Lens Colour | Red | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Terminal Type | Plug-In | |
| Maximum Supply Voltage | 24V ac/dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Sound Level | 105dB | |
| Maximum Operating Temperature | 70°C | |
| Height | 80mm | |
| Standards/Approvals | CE, RoHS | |
| Hazardous Area Certification | No | |
| IP Rating | IP67, IP66 | |
| Base Diameter | 70mm | |
| Housing Colour | Black | |
| Alles selecteren | ||
|---|---|---|
Merk Allen Bradley | ||
Series 856T | ||
Product Type Beacon Tower | ||
Minimum Sound Level 85dB | ||
Component Type Beacon | ||
Multifunction No | ||
Current Type AC/DC | ||
Sounder Type Horn | ||
Current Consumption 57mA | ||
Light Effect Rotating | ||
Mount Type Base | ||
Lens Colour Red | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Terminal Type Plug-In | ||
Maximum Supply Voltage 24V ac/dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Sound Level 105dB | ||
Maximum Operating Temperature 70°C | ||
Height 80mm | ||
Standards/Approvals CE, RoHS | ||
Hazardous Area Certification No | ||
IP Rating IP67, IP66 | ||
Base Diameter 70mm | ||
Housing Colour Black | ||
- Land van herkomst:
- AT
Allen Bradley Beacon Tower, Rotating LED, Red Lens - 856T-BR4
Use this beacon tower from Rockwell Automations Allen Bradley range to draw attention to potential hazards in your workplace. To ensure it draws maximum attention, the unit has a red lens and gives off a light output of 5000mcd for reliable brightness. You can choose from a 90 or 180rpm rotating speed via a DIP switch, to suit the needs of your application. As it's compatible with important safety equipment such as push buttons, HMIs and contactors, you'll find this device used in many industries, from pharmaceutical production to packaging facilities.
• Bulb included so you can start using it straight away
• 45mA nominal current for wide compatibility
• Compact dimensions of 70 (base diameter) x 80mm (height) mean this unit offers maximum impact without adding bulk to your setup
• LED bulb for energy efficiency
• 24V AC/DC supply voltage supports high-power connections
Standards and Certifications
• KCC
• EN 61000-6-3:2007 + A1:2011
• CE Marked
856T 70 mm Light Modules, Black Housing colour, Rotating LED, Red Output colour, Standard Lens Finish.
What's the mechanical lifespan of this beacon tower?
This unit has a mechanical lifespan of at least 40,000 hours, meaning you can rely on it for long-term use.
