Phoenix Contact Female D-Sub 9-Pin to Female Free End Serial Cable, 1 m Polyvinyl Chloride, CABLE-D-
- RS-stocknr.:
- 802-8025
- Fabrikantnummer:
- 2926027
- Fabrikant:
- Phoenix Contact
Subtotaal (1 eenheid)*
€ 55,92
(excl. BTW)
€ 67,66
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 55,92 |
*prijsindicatie
- RS-stocknr.:
- 802-8025
- Fabrikantnummer:
- 2926027
- Fabrikant:
- Phoenix Contact
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Phoenix Contact | |
| Product Type | Serial Cable | |
| Connector Type A | D-Sub 9-Pin | |
| Connector Type B | Free End | |
| Number of Contacts A | 9 | |
| Connector Gender A | Female | |
| Number of Contacts B | 9 | |
| Connector Gender B | Female | |
| Voltage | 125V ac/dc | |
| Cable Length | 1m | |
| Jacket Colour | Grey | |
| Standards/Approvals | CSA | |
| Series | CABLE-D- 9SUB/F/OE/0.25/S/1.0M | |
| Jacket Material | Polyvinyl Chloride | |
| Alles selecteren | ||
|---|---|---|
Merk Phoenix Contact | ||
Product Type Serial Cable | ||
Connector Type A D-Sub 9-Pin | ||
Connector Type B Free End | ||
Number of Contacts A 9 | ||
Connector Gender A Female | ||
Number of Contacts B 9 | ||
Connector Gender B Female | ||
Voltage 125V ac/dc | ||
Cable Length 1m | ||
Jacket Colour Grey | ||
Standards/Approvals CSA | ||
Series CABLE-D- 9SUB/F/OE/0.25/S/1.0M | ||
Jacket Material Polyvinyl Chloride | ||
- Land van herkomst:
- DE

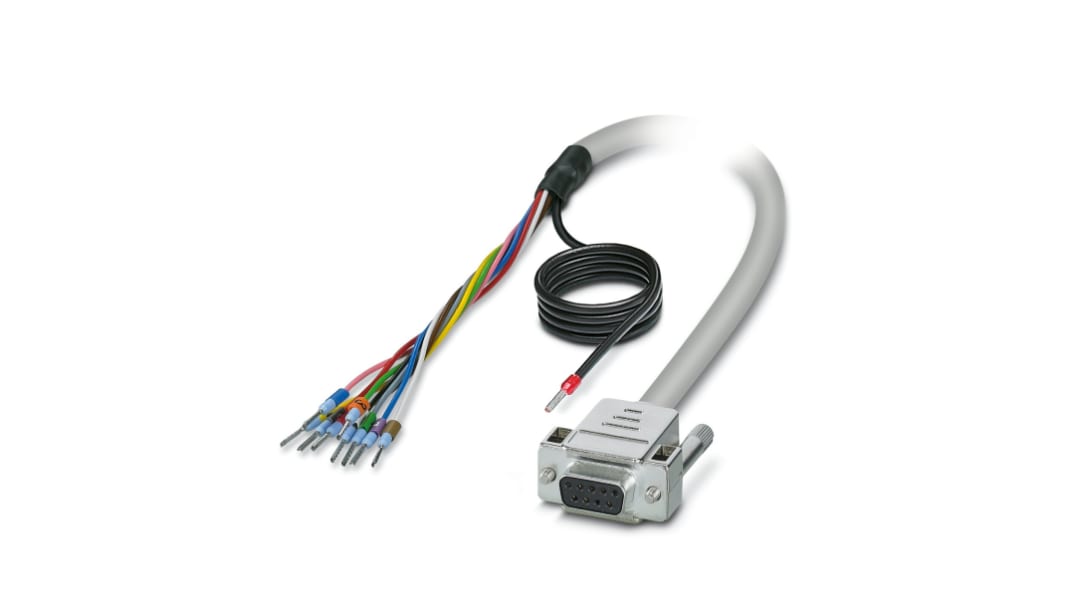

Phoenix Contact Serial Cable, PVC Sheath Material, 24AWG - CABLE-D- 9SUB/F/OE/0,25/S/1,0M - 2926027
Need a flexible data transfer solution for your PLC? Grab this serial cable from Phoenix Contact. It has a 9-pin D-sub socket at the module side and nine unterminated connections at the controller end. This means it's ideal for linking an I/O interface to a terminal board. You'll find cables like this used in industrial automation, point-of-sale technology and motor drives.
For hassle-free installation, the unterminated end has colour-coded wires, so it's easy to identify your connections. Ferrules protect the bare strands to prevent fraying and other damage during insertion and removal from the terminal. At the plug end, two UNC 4-40 screws either side of the female socket lock it firmly in place and provide mechanical strain relief to the cable. To minimise disruption from EMI, this robust piece of kit includes a tinned copper braided shield, meaning you get a clean, noise-free signal.
Features & Benefits
• Low conductor resistance of up to 0.09Ω/m minimises power loss and ensures energy efficiency
• Wide operating temperature range of -20°C to +50°C means it's compatible with tough conditions
• Long-lasting performance, thanks to its durability rating of more than 200 insertion and withdrawal cycles
