Phoenix Contact Female 15 Pin D-sub Unterminated Cable, 2m PVC, D15SUB Series

Bekijk alle Serial Cables

Subtotaal (1 eenheid)*

€ 71,41

(excl. BTW)

€ 86,41

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 4 stuk(s) klaar voor verzending
  • 5 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 71,41

*prijsindicatie

RS-stocknr.:
201-6814
Fabrikantnummer:
2926111
Fabrikant:
Phoenix Contact
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Phoenix Contact

Connector 1

15 Pin D-sub

Connector 2

Unterminated

Connector 1 Gender

Female

Length

2m

Sheath Colour

Grey

Standards Met

EAC

Shielding

Shielded

Series

D15SUB

Outer Sheath Material

PVC

Voltage Rating

30 V ac

Current Rating

2 A

Land van herkomst:
DE

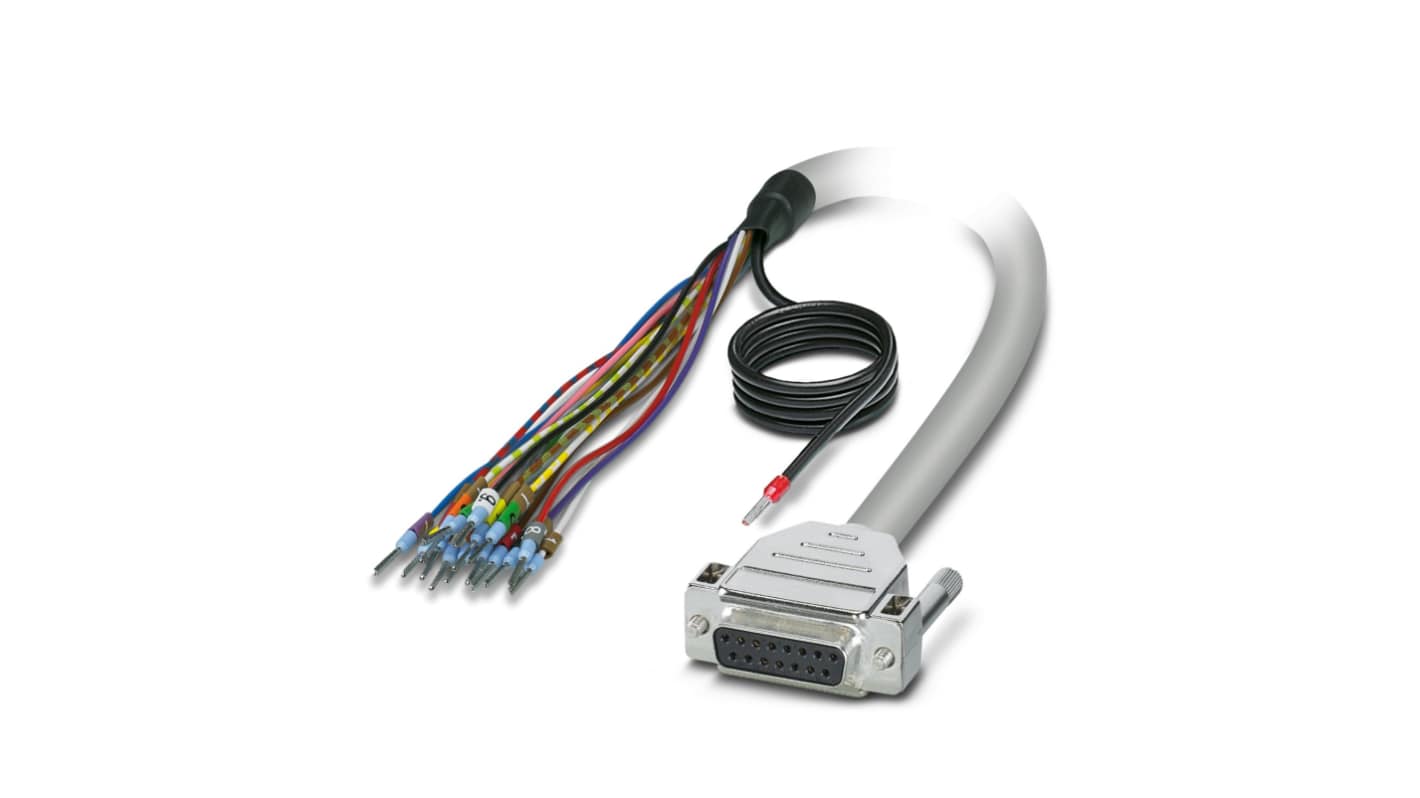

Phoenix Contact D15SUB Series Cable, 2A Current Rating, 2m Length - 2926111


This cable is intended for robust connections in industrial settings. It features a female D-sub connector along with an unterminated end, offering versatility for various applications. The shielded design enhances protection against interference, making it suitable for automation and electronic projects where precision is essential.

Features & Benefits


• Equipped with individual wire marking for clear identification
• Includes ferrules for secure wire connections
• Rated for 2A current to provide effective power transmission
• Compliant with IEC 60807-2 and DIN 41652 standards
• Length of 2m allows for adaptable installations

Applications


• Ideal for linking devices within electrical enclosures
• Utilised for signal transmission in control systems
• Enables the creation of custom-length D-sub connections
• Appropriate for both fixed and flexible installations in various machinery

What is the maximum operating voltage?


The maximum permissible operating voltage is 25V AC and 60V DC.

How should the cable be handled during installation?


It is advisable to maintain a bending radius of at least 67mm for fixed installations and 126mm for movable applications to ensure longevity.

What environmental conditions can it withstand?


This cable operates effectively within a temperature range of -40°C to 70°C for fixed installations and can be stored safely between -40°C and 80°C.

What type of wires are used in the assembly?


The cable comprises 14 uninsulated copper litz wires with a cross-section of 0.25mm², ensuring efficient signal transmission.
