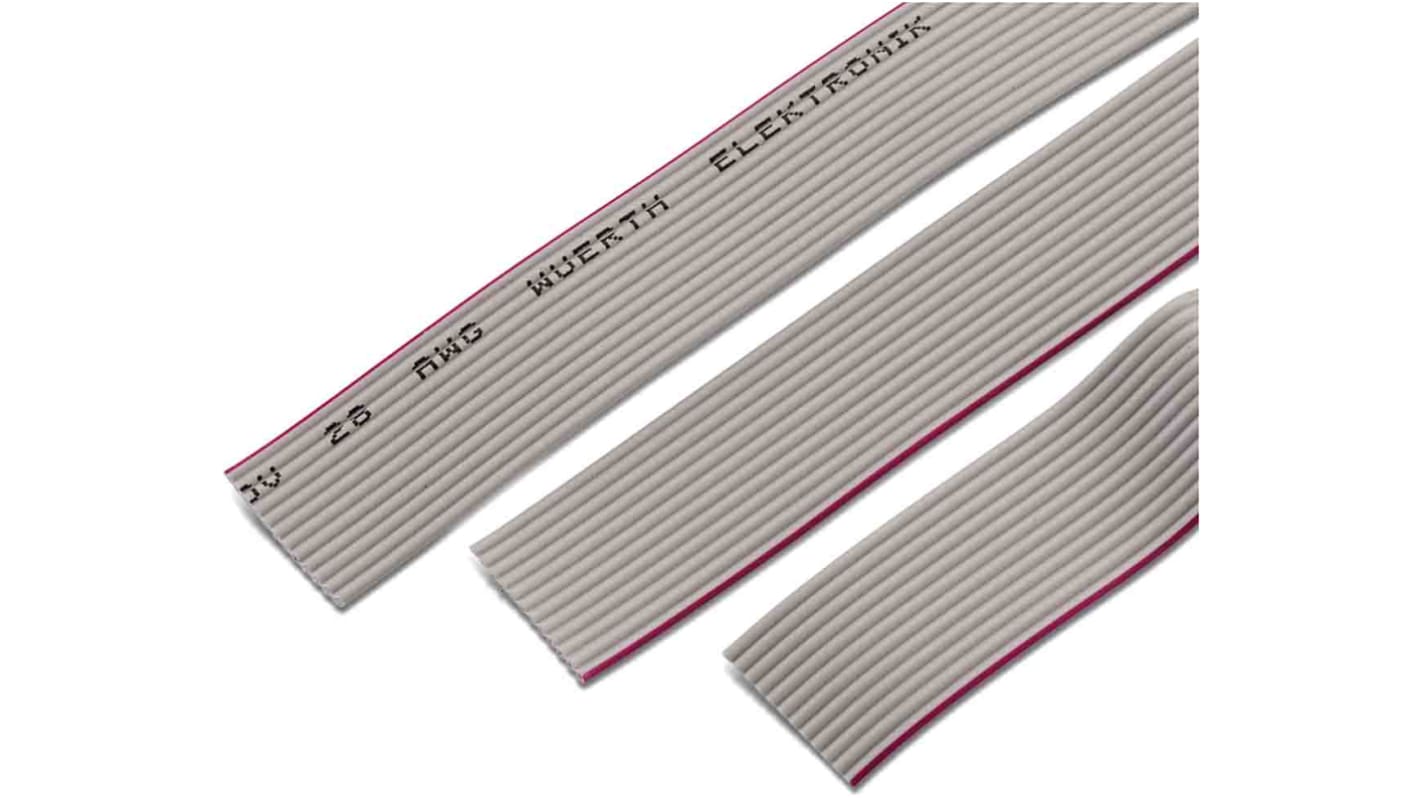

Wurth Elektronik WR-CAB Series Ribbon Cable, Flat Ribbon, 1.27 mm Pitch, 6, 1 m Length
- RS-stocknr.:
- 197-3371
- Artikelnummer Distrelec:
- 301-21-696
- Fabrikantnummer:
- 63910615521CAB
- Fabrikant:
- Wurth Elektronik
Subtotaal (1 eenheid)*
€ 2,18
(excl. BTW)
€ 2,64
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Op voorraad
- Plus verzending 33 stuk(s) vanaf 04 mei 2026
- Plus verzending 91 stuk(s) vanaf 04 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 2,18 |
*prijsindicatie
- RS-stocknr.:
- 197-3371
- Artikelnummer Distrelec:
- 301-21-696
- Fabrikantnummer:
- 63910615521CAB
- Fabrikant:
- Wurth Elektronik
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Wurth Elektronik | |
| Cable Type | Flat Ribbon | |
| Product Type | Ribbon Cable | |
| Pitch | 1.27mm | |
| Voltage | 300V | |
| Screened/Unscreened | Unscreened | |
| Number of Conductors | 6 | |
| American Wire Gauge | 28AWG | |
| Jacket Material | Polyvinyl Chloride | |
| Series | WR-CAB | |
| Conductor Type | Stranded | |
| Cable Length | 1m | |
| Standards/Approvals | RoHS, IEC, UL | |
| Jacket Colour | Grey | |
| Conductor Material | Copper | |
| Minimum Operating Temperature | -25°C | |
| Fire Behaviour | IEC 1-332 VW-1 | |
| Maximum Operating Temperature | 105°C | |
| Alles selecteren | ||
|---|---|---|
Merk Wurth Elektronik | ||
Cable Type Flat Ribbon | ||
Product Type Ribbon Cable | ||
Pitch 1.27mm | ||
Voltage 300V | ||
Screened/Unscreened Unscreened | ||
Number of Conductors 6 | ||
American Wire Gauge 28AWG | ||
Jacket Material Polyvinyl Chloride | ||
Series WR-CAB | ||
Conductor Type Stranded | ||
Cable Length 1m | ||
Standards/Approvals RoHS, IEC, UL | ||
Jacket Colour Grey | ||
Conductor Material Copper | ||
Minimum Operating Temperature -25°C | ||
Fire Behaviour IEC 1-332 VW-1 | ||
Maximum Operating Temperature 105°C | ||
This Wurth Elektronik WR-CAB series 6 wire 1m ribbon flat cable is designed and developed with the intention for use in general electronics equipment. The rated current of the cable is 1A and rated voltage is 300V.
Operating temperature range is from -25°C to +105°C
Stranded wire section 28(AWG)
PVC insulator material
Conductor material is made of copper
Tin conductor plating
