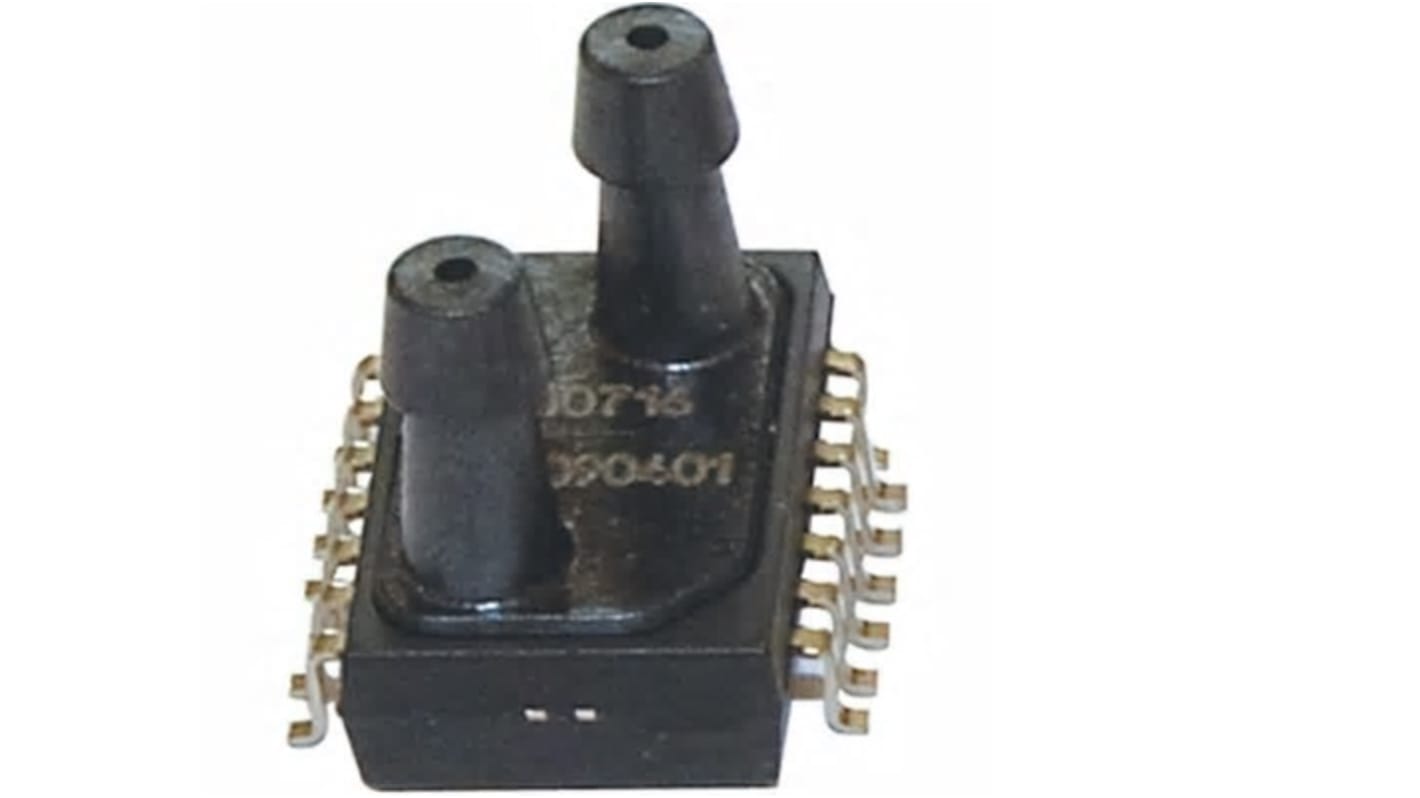

Amphenol Advanced Sensors NPA-700B-10WD Pressure SensorSurface 14 SOIC-14
- RS-stocknr.:
- 257-9556
- Fabrikantnummer:
- NPA-700B-10WD
- Fabrikant:
- Amphenol Advanced Sensors
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 29,36
(excl. BTW)
€ 35,53
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Op voorraad
- 93 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 9 | € 29,36 |
| 10 - 24 | € 27,28 |
| 25 - 49 | € 25,13 |
| 50 - 74 | € 23,81 |
| 75 + | € 23,22 |
*prijsindicatie
- RS-stocknr.:
- 257-9556
- Fabrikantnummer:
- NPA-700B-10WD
- Fabrikant:
- Amphenol Advanced Sensors
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Amphenol Advanced Sensors | |
| Maximum Overload Pressure | 60psi | |
| Sensor Type | Differential Pressure Sensor | |
| Product Type | Pressure Sensor | |
| Mount Type | Surface | |
| Package Type | SOIC-14 | |
| Pin Count | 14 | |
| Minimum Supply Voltage | 3.135V | |
| Maximum Operating Pressure | 60 psi | |
| Maximum Supply Voltage | 5.25V | |
| Accuracy | ±1.5% FSO | |
| Port Type | Manifold, Barb | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | NPA | |
| Length | 11.36mm | |
| Height | 9.5mm | |
| Width | 10.32 mm | |
| Minimum Operating Pressure | 2490.89Pa | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -40°C | |
| Alles selecteren | ||
|---|---|---|
Merk Amphenol Advanced Sensors | ||
Maximum Overload Pressure 60psi | ||
Sensor Type Differential Pressure Sensor | ||
Product Type Pressure Sensor | ||
Mount Type Surface | ||
Package Type SOIC-14 | ||
Pin Count 14 | ||
Minimum Supply Voltage 3.135V | ||
Maximum Operating Pressure 60 psi | ||
Maximum Supply Voltage 5.25V | ||
Accuracy ±1.5% FSO | ||
Port Type Manifold, Barb | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series NPA | ||
Length 11.36mm | ||
Height 9.5mm | ||
Width 10.32 mm | ||
Minimum Operating Pressure 2490.89Pa | ||
Automotive Standard No | ||
Minimum Operating Temperature -40°C | ||
- Land van herkomst:
- TH
The Amphenol Advanced Sensors nova sensor NPA series of surface-mount pressure sensors is provided in a miniature size as a cost effective solution for applications that require calibrated performance. Packaged in a SOIC14 pin surface mount, the NPA series is available in gauge, absolute and differential pressure ranges with either mV, amplified analogue or digital outputs, the sensor is intended for printed circuit board mounting and delivered in tape and reel form to simplify manufacturing handling.
Surface-mountable
Differential, gauge, absolute and low pressure
2” H2O to 30 PSI full scale
On-chip temperature sensor in digital mode
-40°C to 125°C operating temperature range
Total error band < ±1.5% FSO
Proof pressure Up to 60 psi
