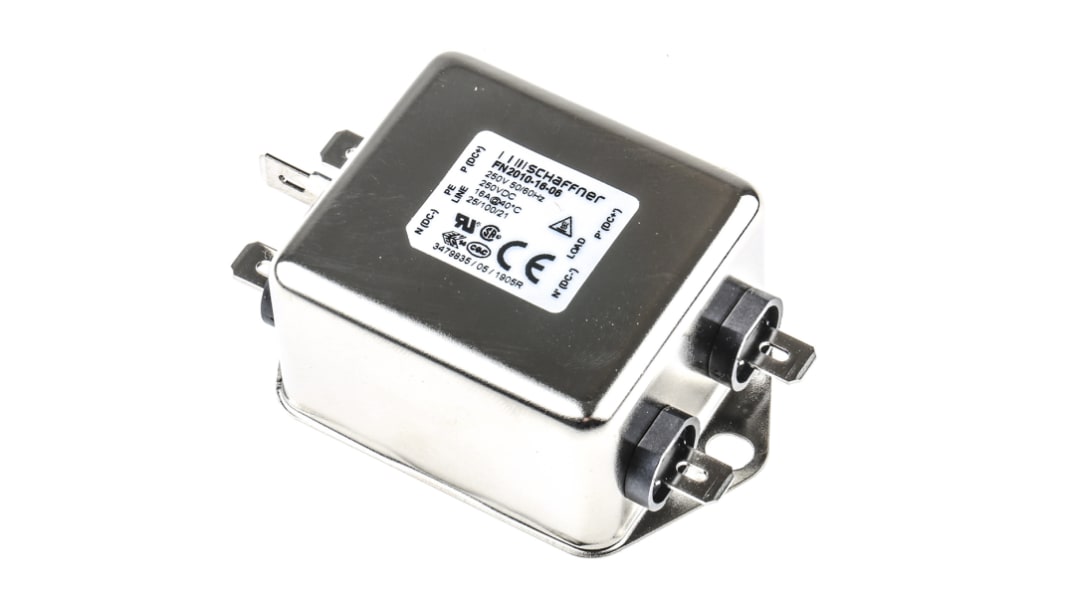

Schaffner, FN2010 16A 250 V ac/dc 0 → 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase
- RS-stocknr.:
- 170-4997
- Fabrikantnummer:
- FN2010-16-06
- Fabrikant:
- Schaffner
Subtotaal (1 doos van 60 eenheden)*
€ 988,56
(excl. BTW)
€ 1.196,16
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Tijdelijk niet op voorraad
- Verzending 1.080 stuk(s) vanaf 22 januari 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per Doos* |
|---|---|---|
| 60 + | € 16,476 | € 988,56 |
*prijsindicatie
- RS-stocknr.:
- 170-4997
- Fabrikantnummer:
- FN2010-16-06
- Fabrikant:
- Schaffner
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schaffner | |
| Maximum Current Rating | 16A | |
| Maximum Voltage Rating | 250 V ac/dc | |
| Mounting Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Number of Phases | 1 | |
| Series | FN2010 | |
| Number of Stages | Single Stage | |
| Operating Frequency | 0 → 400Hz | |
| Length | 46.6mm | |
| Depth | 71mm | |
| Height | 29.3mm | |
| Capacitance | 4.7 nF, 100nF | |
| Dimensions | 46.6 x 71 x 29.3mm | |
| Inductance | 700 μH | |
| Leakage Current | 0.74 mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +100°C | |
| Resistance | 1MΩ | |
| Alles selecteren | ||
|---|---|---|
Merk Schaffner | ||
Maximum Current Rating 16A | ||
Maximum Voltage Rating 250 V ac/dc | ||
Mounting Type Chassis Mount | ||
Termination Style Fast-On | ||
Number of Phases 1 | ||
Series FN2010 | ||
Number of Stages Single Stage | ||
Operating Frequency 0 → 400Hz | ||
Length 46.6mm | ||
Depth 71mm | ||
Height 29.3mm | ||
Capacitance 4.7 nF, 100nF | ||
Dimensions 46.6 x 71 x 29.3mm | ||
Inductance 700 μH | ||
Leakage Current 0.74 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +100°C | ||
Resistance 1MΩ | ||
FN2010 Series
Low cost chassis mount filters in an aluminium case
General purpose filtering applications
Connection by Faston type terminals
General purpose filtering applications
Connection by Faston type terminals
Approvals
UL recognised component, CSA certified, VDE
Approvals
UL; CSA ; VDE
