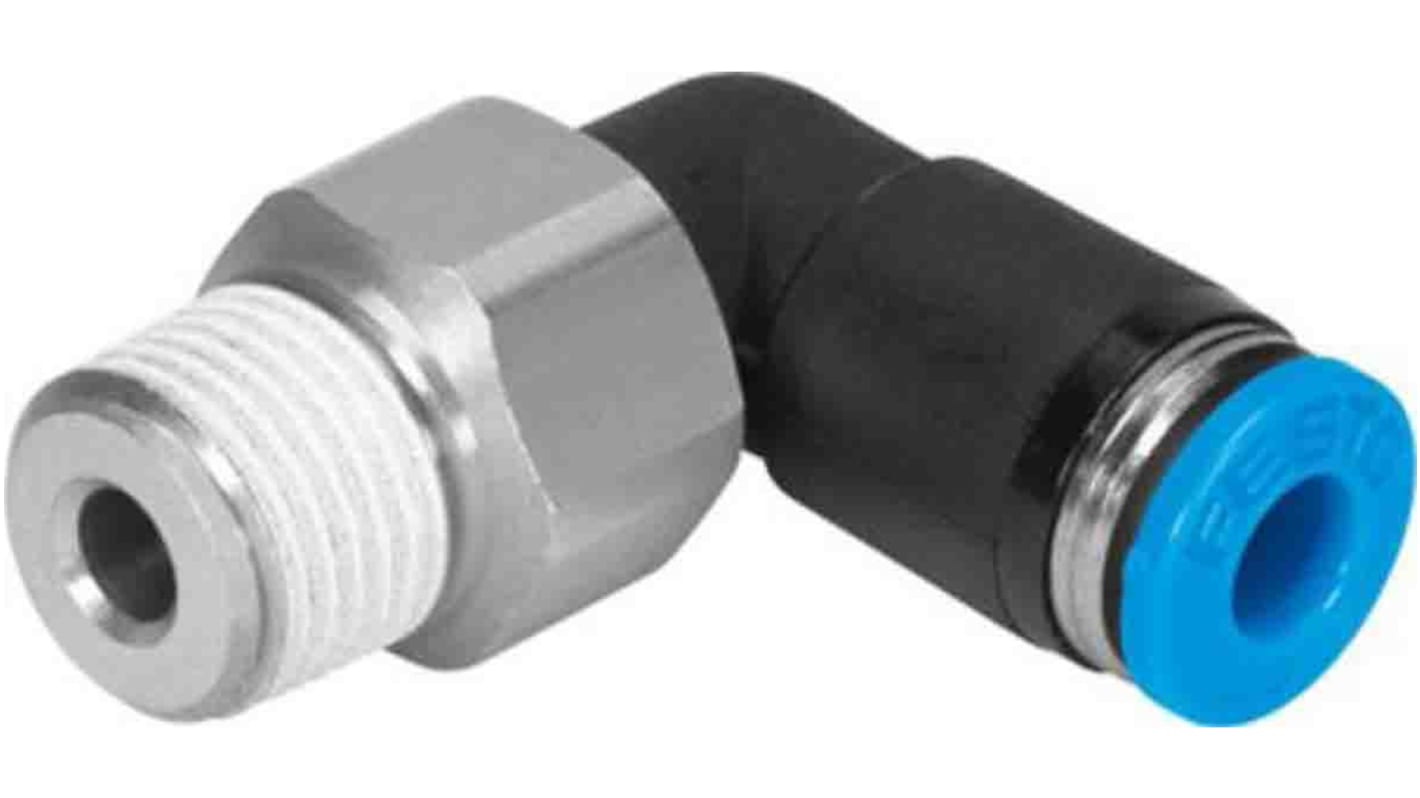

Festo QSRL PBT Pneumatic Rotary Union, R 1/8 Male, Push In 4mm

Bekijk alle Pneumatic Rotary Unions

Subtotaal (1 eenheid)*

€ 18,30

(excl. BTW)

€ 22,14

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • Plus verzending 16 stuk(s) vanaf 22 december 2025
  • Plus verzending 1 stuk(s) vanaf 22 december 2025
  • Plus verzending 17 stuk(s) vanaf 16 januari 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 18,30

*prijsindicatie

RS-stocknr.:
202-2778
Fabrikantnummer:
QSRL-1/8-4
Fabrikant:
Festo
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Festo

Tube Connection

Push In 4mm

Tube Connection - Tube Size

4mm

Threaded Connection

R 1/8 Male

Manufacturer Series

QSRL

Material

PBT

Maximum Operating Pressure

6 bar

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+60°C

Tube Connection - Type

Push In

Standards Met

ISO8573-1:2010, RoHS Compliant

Land van herkomst:
JP

Festo Pneumatic Rotary Union, 1.8mm Nominal Size, -0.95 to 14 Bar Operating Pressure - QSRL-1/8-4


Use this pneumatic rotary union from Festo to connect moving parts to your air-powered machinery. It achieves rotation speeds up to 500rpm, giving you effective performance with fast-paced equipment. As the component turns through 360°, it's suitable for just about any kind of rotating pneumatic hardware for versatility. The simple push-in design features a stainless steel retaining claw to quickly achieve a secure connection for fast assembly. Thanks to its nickel-plated brass housing, this rotary union is corrosion-resistant to maintain efficient airflow in damp conditions.

• Operating pressure range between -0.95 and 14 bar for handling high pressures
• Integrated NBR ring provides tight self-sealing connection with minimal leakage
• R1/8 thread port for wide compatibility with standard air-powered devices
• Works at temperatures between 0°C and +60°C to suit demanding industrial conditions

Applications


• Semiconductor manufacture
• Cleanrooms
• Packing plants
• Automotive industry

What size tubing can I use this pneumatic rotary union with?


This push-in L-fitting is suitable for tubing with a 4mm outer diameter.

Can I reuse this push-in fitting?


By carefully disconnecting it, you can use this L-fitting up to five times for convenience.
