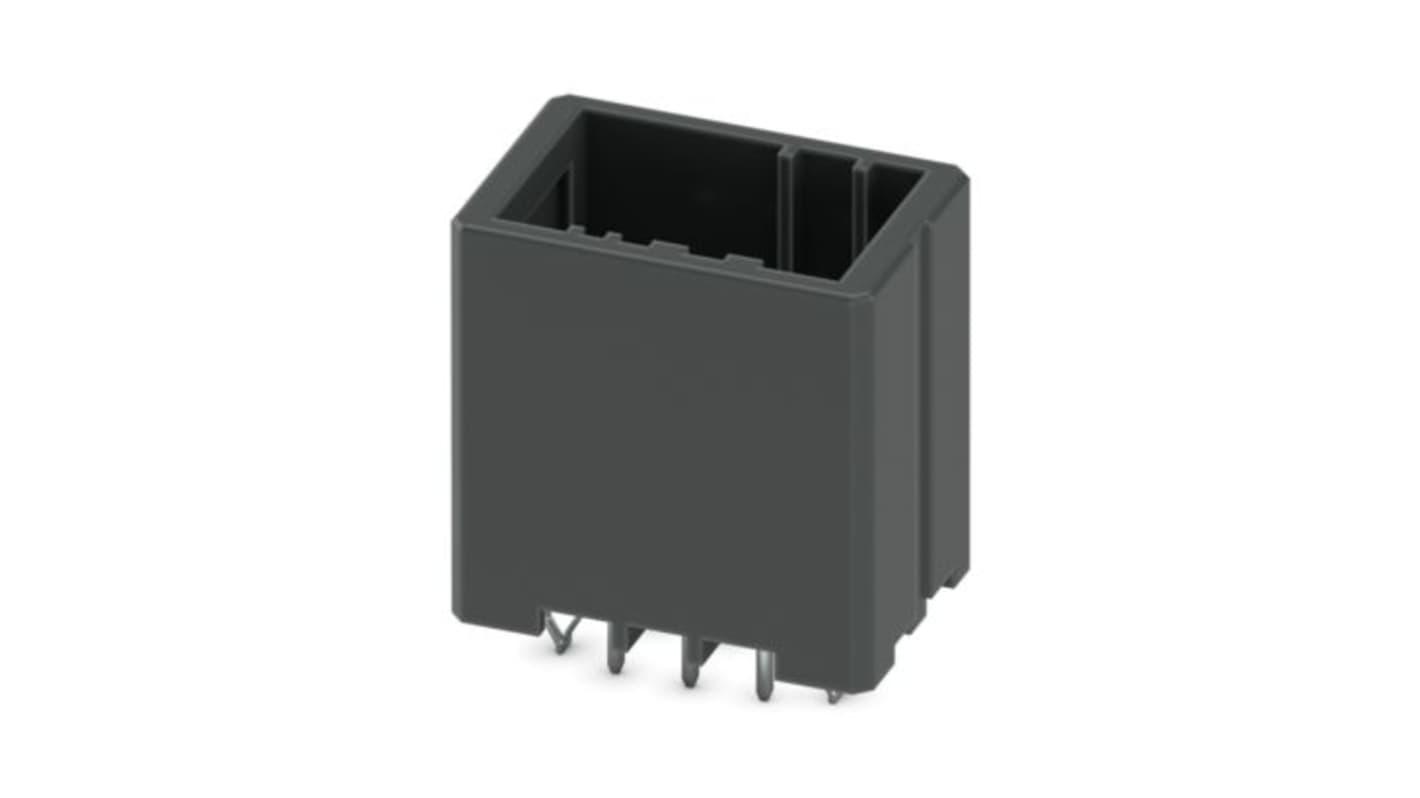

Phoenix Contact DD31H Series Wave Soldering Mount PCB Header, 6 Contact(s), 3.81 mm Pitch, 2 Row, Shrouded
- RS-stocknr.:
- 521-613
- Fabrikantnummer:
- 1341402
- Fabrikant:
- Phoenix Contact
Subtotaal (1 verpakking van 50 eenheden)*
€ 116,10
(excl. BTW)
€ 140,48
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Tijdelijk niet op voorraad
- Verzending vanaf 05 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Verpakking(en) | Per verpakking | Per stuk* |
|---|---|---|
| 1 + | € 116,10 | € 2,322 |
*prijsindicatie
- RS-stocknr.:
- 521-613
- Fabrikantnummer:
- 1341402
- Fabrikant:
- Phoenix Contact
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | DD31H | |
| Current | 8A | |
| Pitch | 3.81mm | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | CONNEXIS | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 3.81mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Standards/Approvals | cULus Recognised, DIN EN 61984, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, UL 94 V0, UL Recognised | |
| Mating Pin Length | 3.8mm | |
| Voltage | 160 V | |
| Alles selecteren | ||
|---|---|---|
Merk Phoenix Contact | ||
Product Type PCB Header | ||
Series DD31H | ||
Current 8A | ||
Pitch 3.81mm | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System CONNEXIS | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 3.81mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Standards/Approvals cULus Recognised, DIN EN 61984, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, UL 94 V0, UL Recognised | ||
Mating Pin Length 3.8mm | ||
Voltage 160 V | ||
- Land van herkomst:
- CN
The Phoenix Contact DD31H 2.2/6-V-3.81-Y is a state-of-the-art PCB header designed to elevate your connectivity solutions. Crafted for simplicity and efficiency, this connector is ideal for applications requiring a secure, multi-row arrangement on a PCB. The device features a robust snap-in locking mechanism that ensures a reliable connection, preventing accidental disconnections. Offered in a sleek black housing, it conforms to stringent standards, providing users with peace of mind regarding its durability and performance. With its exceptional packing density, this connector is perfect for tight spaces, making it a versatile choice for various projects. Experience effortless PCB replacement made possible by its intuitive plug-in modules that save time and resources while streamlining your workflow. Dive into the future of reliable connections with this PCB header.
Easy installation through wave soldering
Durable design supports a wide range of applications
Lightweight construction optimises handling during assembly
Environmentally friendly, compliant with WEEE and RoHS standards
High packing density allows for efficient use of space on PCBs
Intuitive design facilitates effortless maintenance and replacement
Enhanced electrical properties ensure superior performance
Robust locking mechanism provides security and reliability
