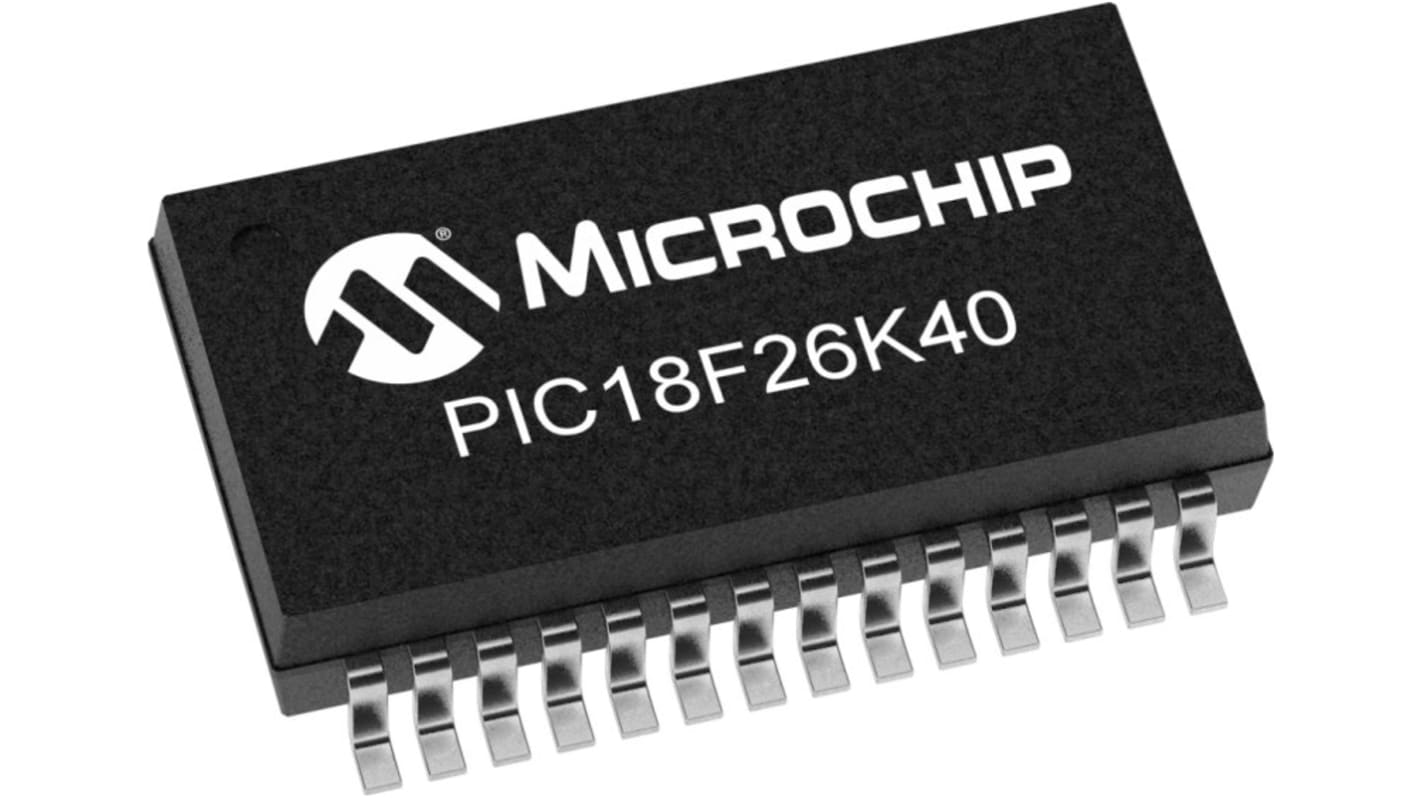

Microchip PIC18F26K40T-I/SS PIC, PIC18 Microcontroller, 64kB FLASH, 28-Pin SSOP

Bekijk alle Microcontrollers
Bulkkorting beschikbaar

Subtotaal (1 verpakking van 5 eenheden)*

€ 7,98

(excl. BTW)

€ 9,655

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 2.100 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
Per verpakking*
5 - 45€ 1,596€ 7,98
50 - 95€ 1,456€ 7,28
100 - 245€ 1,444€ 7,22
250 - 995€ 1,418€ 7,09
1000 +€ 1,39€ 6,95

*prijsindicatie

Verpakkingsopties
RS-stocknr.:
264-8073
Fabrikantnummer:
PIC18F26K40T-I/SS
Fabrikant:
Microchip
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Microchip

Series

PIC18

Product Type

Microcontroller

Package Type

SSOP

Mount Type

Surface

Pin Count

28

Device Core

PIC

Program Memory Size

64kB

RAM Size

4bit

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Analogue Comparators

2

Maximum Operating Temperature

85°C

Standards/Approvals

No

Minimum Supply Voltage

2V

ADCs

8 bit

Automotive Standard

No

Instruction Set Architecture

MCU

Program Memory Type

FLASH

The Microchip PIC series 8bit low power, high performance MCU features analog, core independent peripherals and communication peripherals, combined with eXtreme Low-Power (XLP) technology for a wide range of general purpose and low-power applications. It is equipped with a 10-bit ADC with computation (ADCC) automating capacitive voltage divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and performing automatic threshold comparisons. It has 64 KB flash memory, 4KB RAM and 28 pins. It's operating temperature ranges between -40°C to +85°C (Industrial).

PIC18 Core with 83 instructions, 31 stack levels

Internal 64MHz oscillator

24 x 10-bit ADC channels

Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders

CRC with memory scan

Windowed Watchdog Timer (WWDT)

Three 8-bit Timers/Counters

Four 16-bit Timers/Counters

Three power saving operating mode

Low Current Power-on Reset (POR)
