RS PRO RS 1107 Differential Manometer With 2 Pressure Port/s, Max Pressure Measurement 200mbar With RS Calibration

RS-stocknr.:: 273-9926
Fabrikant:: RS PRO

RS PRO RS 1107 Differential Manometer With 2 Pressure Port/s, Max Pressure Measurement 200mbar With RS Calibration

Subtotaal (1 eenheid)*

€ 339,82

(excl. BTW)

€ 411,18

(incl. BTW)

GRATIS bezorging voor bestellingen vanaf € 75,00

Op voorraad

6 stuk(s) klaar voor verzending
22 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 339,82

*prijsindicatie

RS-stocknr.:: 273-9926
Fabrikant:: RS PRO

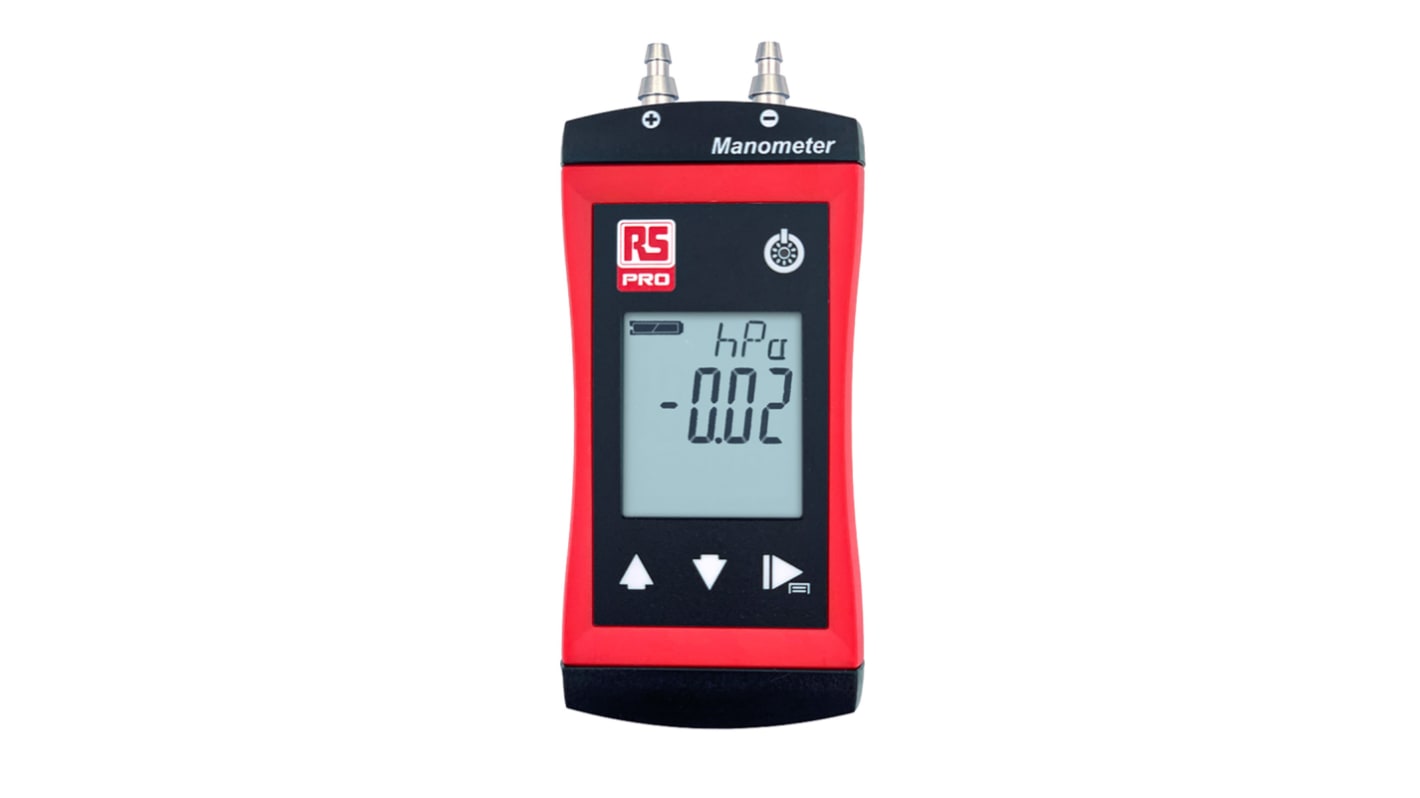

RS PRO Differential Pressure Manometer

Introducing the compact RS PRO Differential Pressure Manometer. This high-quality device from RS PRO measures airflow and pressure with high accuracy and is a compact and rugged HVAC test and measurement instrument that offers a wide variety of measurement unit options, meaning that this is a functional and versatile tool that can be used across a wide range of pressure measurement applications, whilst offering fast, reliable and accurate readings. This modern and super portable RS PRO manometer has been designed for single-handed operation and offers the most essential features that are necessary for routine maintenance and system troubleshooting applications.

Features and Benefits:

This RS PRO compact manometer features 5 selectable units of measurement including mbar, Pa, hPa, psi and mmHg for flexibility and additional versatility across a wide range of applications

This device offers a simultaneous display of pressure, air velocity, airflow and temperature when required, without any delay and affecting the accuracy of the results at that point in time and improving testing efficiency

Thanks to the universal pressure connection, the unit is equipped with barbed ports for 6 mm and 8 mm hoses and can be adapted to many standard G1/8 in ports, based on the user’s needs

The manometer offers a large, high-resolution LCD screen for easy viewing of results and data measurement and long battery life, while the backlit screen allows it to be used in low light environments and ducting

Heavy duty and hard-wearing, this RS PRO manometer is waterproof and durable with an IP67 rating (not sensor connection)

The device is powered by 2 x AA batteries with a low battery indicator and selectable ’auto power-off’ function to preserve battery life when not in use

Supplied with: Batteries and Instruction Manual

Technical Features:

NULL/Tare, Fine and AVG Functions

±0.2 hPa accuracy

±2000 mbar range

<1 second response time

Applications:

A manometer is a device that is used to measure pressure and the flow rate in the air, in gases or in liquids, depending on the application. These devices are generally compact and portable so that they can be taken to where the readings need to be measured and recorded. Manometers are versatile instruments that can be used across a wide range of industries and applications like:

HVAC systems maintenance

Meteorological and weather conditions monitoring

Gas pressure monitoring in piping systems

Fluid flow measurements

Physiological measurements such as blood pressure

Monitoring compressor systems operations

What is the difference between a manometer and a barometer?

Barometers or mercury manometers are devices that measure the atmospheric pressure around you. It is a very basic device that comes in a closed-end tube with a vacuum on the other end and measures as the pressure goes up or back down to the absolute pressure point. Manometers also measure atmospheric pressure this, however, in addition to this, manometers have additional features that can measure absolute pressure, differential pressure and gauge pressure and can be used in a wide range of servicing and maintenance applications to ensure that all parts that work using pressure are maintained and fully functional to ensure that downtime is limited.

What are the measurement units that this manometer can read?

This manometer measures in 5 different units: mbar, bar, hPa, psi and mmHg

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	RS PRO
	Best Accuracy	±0.2 %
	Calibrated	RSCAL
	Number of Pressure Ports	2
	Maximum Pressure Measurement	200mbar
	Minimum Pressure Measurement	-200mbar
	Pressure Port Type	Differential
	Leak Testing	No
	Minimum/Maximum Recordings	Yes
	Data Logging	No
	Model Number p	RS 1107
	Intrinsically Safe	No
	IP Rating	IP67
	Battery Type	AA
	Display Type	Backlit LCD
	Overpressure Maximum	1700hPa
	Weight	140g
	Maximum Operating Temperature	+50°C
	Height	108mm
	Length	54mm
	Dimensions	108 x 54 x 28mm
	Minimum Operating Temperature	-20°C
	Width	28mm

	Alles selecteren
	Merk RS PRO
	Best Accuracy ±0.2 %
	Calibrated RSCAL
	Number of Pressure Ports 2
	Maximum Pressure Measurement 200mbar
	Minimum Pressure Measurement -200mbar
	Pressure Port Type Differential
	Leak Testing No
	Minimum/Maximum Recordings Yes
	Data Logging No
	Model Number p RS 1107
	Intrinsically Safe No
	IP Rating IP67
	Battery Type AA
	Display Type Backlit LCD
	Overpressure Maximum 1700hPa
	Weight 140g
	Maximum Operating Temperature +50°C
	Height 108mm
	Length 54mm
	Dimensions 108 x 54 x 28mm
	Minimum Operating Temperature -20°C
	Width 28mm
