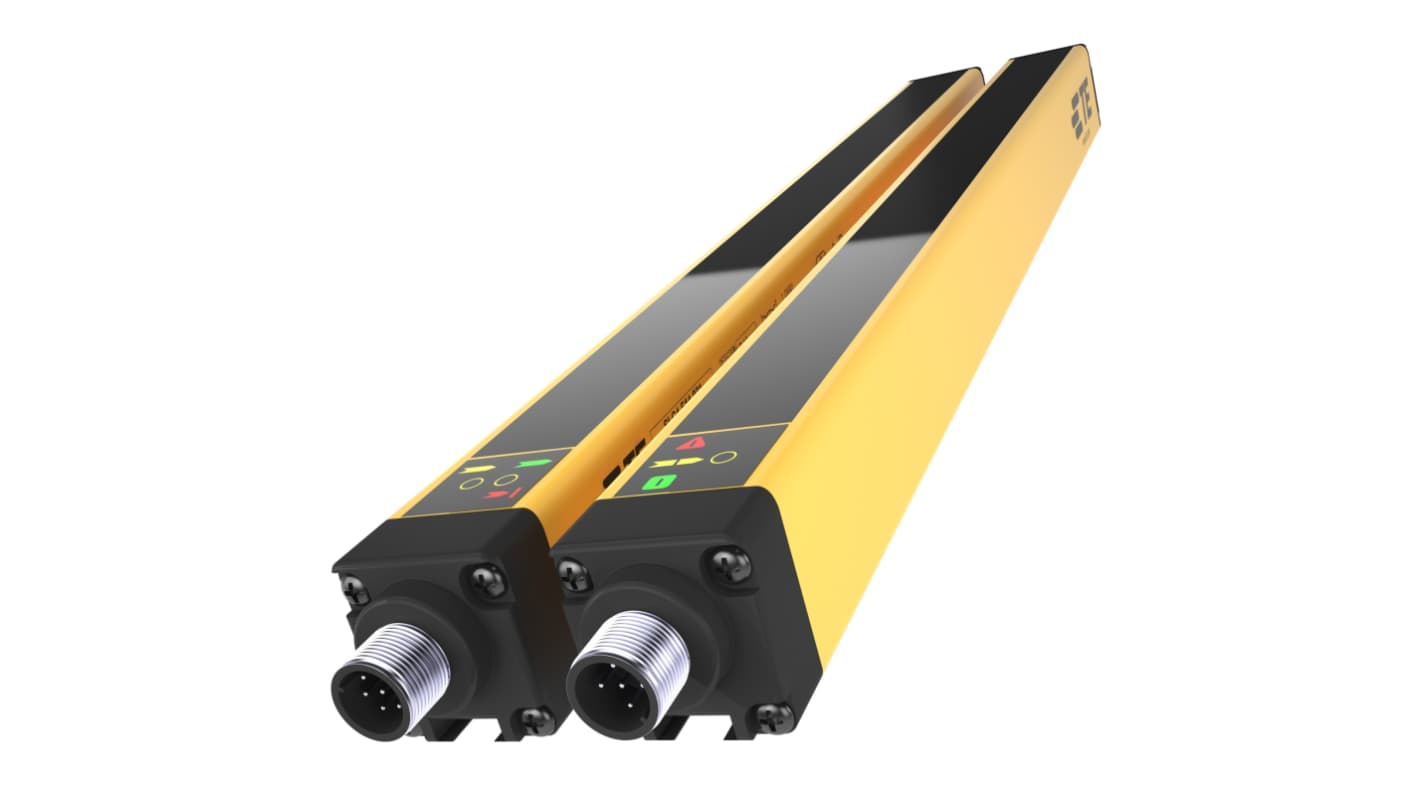

TE Connectivity 2447900 Series Light Curtain Receiver, Sender, 3 Beam(s), 20 mm Resolution
- RS-stocknr.:
- 283-552
- Fabrikantnummer:
- 2447900-8
- Fabrikant:
- TE Connectivity
Subtotaal (1 eenheid)*
€ 833,89
(excl. BTW)
€ 1.009,01
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Tijdelijk niet op voorraad
- Verzending 1 stuk(s) vanaf 14 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 833,89 |
*prijsindicatie
- RS-stocknr.:
- 283-552
- Fabrikantnummer:
- 2447900-8
- Fabrikant:
- TE Connectivity
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | TE Connectivity | |
| Product Type | Light Curtain | |
| Series | 2447900 | |
| Beam Resolution | 20mm | |
| Component Type | Receiver, Sender | |
| Safety Type | Type 4 | |
| Standards/Approvals | PL e | |
| Number of Beams | 3 | |
| Protective Height | 810mm | |
| Maximum Supply Voltage | 24V dc | |
| Minimum Scanning Distance | 4m | |
| Maximum Scanning Distance | 12m | |
| Maximum Response Time | 3ms | |
| Width | 28mm | |
| Height | 953mm | |
| Length | 30mm | |
| Terminal Type | M12 Connector | |
| Alles selecteren | ||
|---|---|---|
Merk TE Connectivity | ||
Product Type Light Curtain | ||
Series 2447900 | ||
Beam Resolution 20mm | ||
Component Type Receiver, Sender | ||
Safety Type Type 4 | ||
Standards/Approvals PL e | ||
Number of Beams 3 | ||
Protective Height 810mm | ||
Maximum Supply Voltage 24V dc | ||
Minimum Scanning Distance 4m | ||
Maximum Scanning Distance 12m | ||
Maximum Response Time 3ms | ||
Width 28mm | ||
Height 953mm | ||
Length 30mm | ||
Terminal Type M12 Connector | ||
- Land van herkomst:
- IT
The TE Connectivity Safety light curtain (SLC) is compact with competitive performance and innovative features. Includes models with integrated safety functions, including self-monitoring of static outputs, control of external contactors (EDM) and selectable automatic/ manual restart. 2 safety PNP static outputs. Easy connection and installation due to M12 connectors and the use of unshielded cables.
Reliable and compact
High ingress protection ratings
Fast and simple installation
Compact size
Robustness
