MOXA MGate Gateway, RJ45, RS232

RS-stocknr.:: 255-2473
Artikelnummer Distrelec:: 300-27-602
Fabrikantnummer:: MGate 5102-PBM-PN
Fabrikant:: MOXA

Subtotaal (1 eenheid)*

€ 1.396,60

(excl. BTW)

€ 1.689,89

(incl. BTW)

GRATIS bezorging voor bestellingen vanaf € 90,00

Op voorraad

1 stuk(s) klaar voor verzending

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 1.396,60

*prijsindicatie

RS-stocknr.:: 255-2473
Artikelnummer Distrelec:: 300-27-602
Fabrikantnummer:: MGate 5102-PBM-PN
Fabrikant:: MOXA

Specificaties

Datasheets

Wetgeving en conformiteit

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	MOXA
	Product Type	Gateway
	System Memory Capacity	32GB
	System Memory Type	microSD
	Series	MGate
	Media Interfaces	Profibus, Ethernet, Profinet
	COM Port Type	RJ45, RS232
	Minimum Operating Temperature	0°C
	Minimum Voltage	12V
	Maximum Voltage	48V
	Maximum Operating Temperature	60°C
	Standards/Approvals	IEC 61000-4-3, IEC 61000-4-8, IEC 61000-4-2, EN 55032/24, UL 508, IECEX, Class I Division 2, EN 60950-1, ATEX, IEC 61000-4-6, IEC 61000-4-5, IEC 61000-4-4

	Alles selecteren
	Merk MOXA
	Product Type Gateway
	System Memory Capacity 32GB
	System Memory Type microSD
	Series MGate
	Media Interfaces Profibus, Ethernet, Profinet
	COM Port Type RJ45, RS232
	Minimum Operating Temperature 0°C
	Minimum Voltage 12V
	Maximum Voltage 48V
	Maximum Operating Temperature 60°C
	Standards/Approvals IEC 61000-4-3, IEC 61000-4-8, IEC 61000-4-2, EN 55032/24, UL 508, IECEX, Class I Division 2, EN 60950-1, ATEX, IEC 61000-4-6, IEC 61000-4-5, IEC 61000-4-4

Land van herkomst:: TW

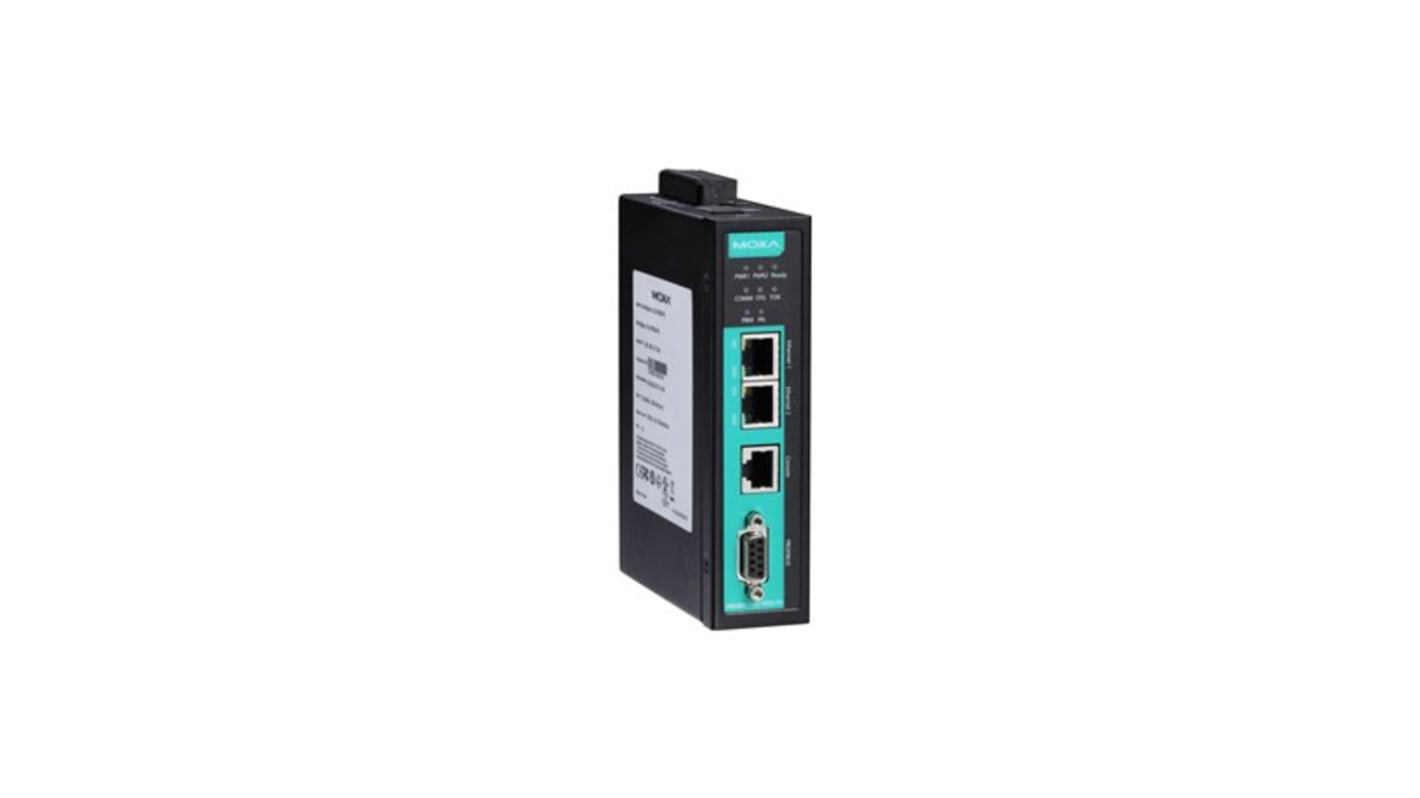

MOXA Gateway, 48V Maximum Voltage, 0°C Minimum Operating Temperature - MGate 5102-PBM-PN

This gateway converts between Profibus and Profinet networks to enable seamless communication in industrial control systems. It links Profibus field devices with Ethernet-based automation equipment and supports serial interfacing via RS232 over RJ45 connectors. Designed for harsh industrial environments, it operates across typical control-room and field installations without fibre media.

Features and Benefits:

• Supports 32GB microSD for extended system memory and logging
• Operates between 0°C and+60°C to withstand high temperatures
• Accepts 12V to 48V input for flexible power sourcing
• Provides Profibus, Ethernet and Profinet media interfaces for protocol bridging
• Complies with IEC 61000 series electromagnetic immunity standards for noisy sites
• Certified for IECEx, ATEX and Class I Division 2 hazardous areas for explosive atmospheres

Applications

• Suitable for integrating Profibus fieldbus devices into Profinet automation networks
• Ideal for DIN-rail installations in factory automation cabinets
• Used with RS232 peripherals requiring RJ45 serial connectivity
• Can be used for remote protocol conversion in oil, gas and chemical plants
• Used for data logging and firmware storage via removable microSD media

What power voltages can it accept for different installations?

It supports input voltages ranging from 12V up to 48V, allowing direct connection to common industrial power supplies.

How does it cope with electromagnetic interference on-site?

It meets multiple IEC 61000 standards and EN 55032/24 to resist radiated and conducted disturbances in industrial environments.

Which certifications allow use in hazardous locations?

It carries IECEx, ATEX and Class I Division 2 markings permitting deployment in specified explosive-atmosphere zones.

What serial and network interfaces are available for device connectivity?

It provides RS232 serial communication via RJ45 and native Profibus and Ethernet ports for deterministic field-to-network bridging.
