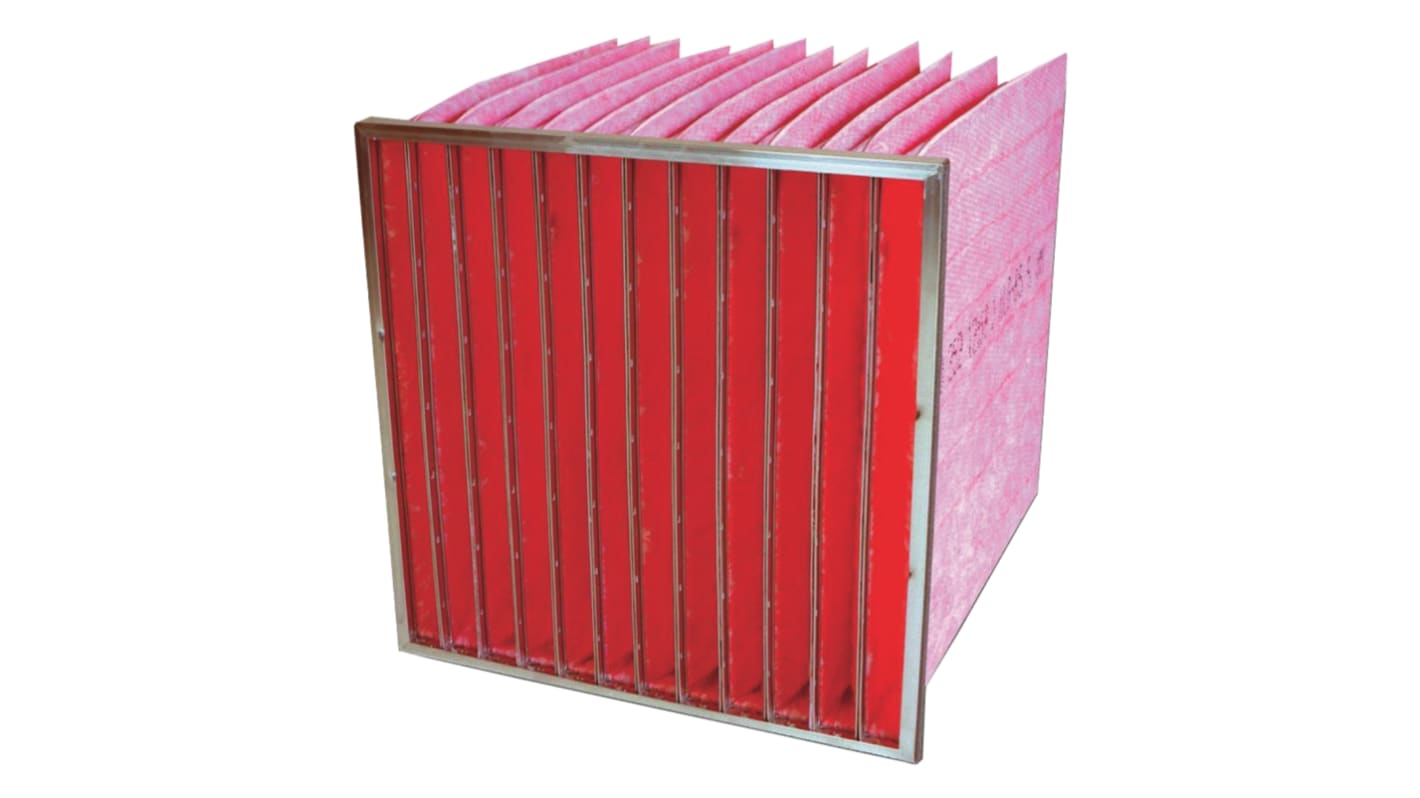

RS PRO Jayflow Series Micro Glass Bag Filter, F7 Grade 535 mm 592 mm 592 mm

Bekijk alle HVAC Air Filters

Subtotaal (1 eenheid)*

€ 145,66

(excl. BTW)

€ 176,25

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Tijdelijk niet op voorraad
  • Verzending vanaf 13 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 145,66

*prijsindicatie

RS-stocknr.:
827-9819
Fabrikant:
RS PRO
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

RS PRO

Filter Type

Bag

Product Type

HVAC Air Filter

Media Area

5.2m²

Number of Pockets

8

Filter Grade

F7

Maximum Air Flow

2700m³/h

Initial Pressure Drop

95Pa

Final Pressure Drop

95Pa

Colour

Pink

Case Material

Galvanised Steel

Media Material

Micro Glass

Standards/Approvals

ISO, BS EN, RoHS

Actual Depth

535mm

Header Size

20mm

Actual Height

592mm

Nominal Width

609.6mm

Nominal Height

609.6mm

Actual Width

592mm

Series

Jayflow

Nominal Depth

508mm

Land van herkomst:
GB

RS Jayflow85 Fine Efficiency Rated Glass Bag Filters


The RS Jayflow85 range of fine efficiency glass bag filters are used widely in government buildings, hospitals and other sensitive areas. the grade of filter is effective against dust and soots and is suitable for air conditioning in hospitals, laboratories, offices, theatres and computer rooms.

Jayflow filters are manufactured by mounting the microfine glass fibre media pockets into a galvanised steel header frame. Each pocket rim is fixed to a rigid steel collar and these frames are joined together before fixing into the outside header frame.

The glass fibre pockets are stitched to allow them to open fully just far enough to prevent them from touching each adjacent pocket so allowing for maximum airflow. The conical shape of the pocket allows for a maximum of 12 pockets to be fitted across a width of 600mm nominal. A side gasket is applied to each filter as standard, however, for

the front or rear face of the frame for front or rear mounting frames, please see RS 619-1720 for a roll of EPDM foam sealing tape.

Microfine glass fibre filter media

Galvanised steel header frame

Stitched conical pockets

Side gasket applied to each filter as standard

Filter Efficiency to BS EN 779:2012 = F7

MTE (Minimum Test Efficiency @ 0.4micron) = 55%

Note

Please refer to this list when consulting the datasheet:
827-9535 = JBF121/3
827-9787 = JBF123/4/1
827-9796 = JBF122/3
827-9790 = JBF122/3/1
827-9807 = JBF243/4
827-9819 = JBF242/3
827-9838 = JBF242/3/1
