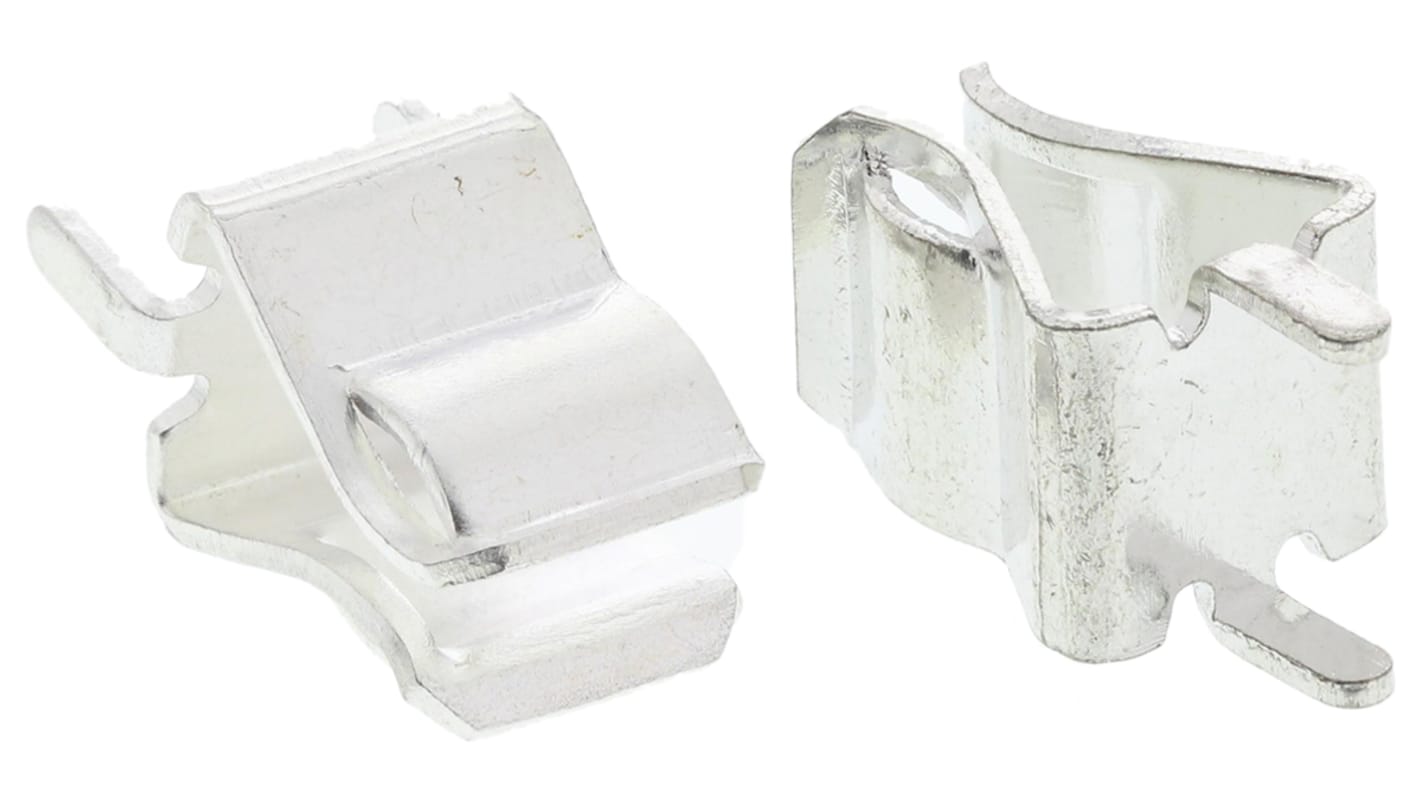

Schurter Tin Plated Beryllium Copper PCB Mount Fuse Clip for 6.3 x 32mm Cartridge Fuse

RS-stocknr.:: 703-2798
Fabrikantnummer:: 8040.0001
Fabrikant:: Schurter

Schurter Tin Plated Beryllium Copper PCB Mount Fuse Clip for 6.3 x 32mm Cartridge Fuse

Bulkkorting beschikbaar

Subtotaal (1 zak van 10 eenheden)*

€ 9,83

(excl. BTW)

€ 11,89

(incl. BTW)

GRATIS bezorging voor bestellingen vanaf € 75,00

Tijdelijk niet op voorraad

Verzending 10 stuk(s) vanaf 30 december 2025
Plus verzending 2.000 stuk(s) vanaf 26 januari 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk	Per Zak*
10 - 90	€ 0,983	€ 9,83
100 - 190	€ 0,934	€ 9,34
200 - 490	€ 0,874	€ 8,74
500 +	€ 0,806	€ 8,06

*prijsindicatie

RS-stocknr.:: 703-2798
Fabrikantnummer:: 8040.0001
Fabrikant:: Schurter

Specificaties

Datasheets

Wetgeving en conformiteit

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Schurter
	Fuse Size	6.3 x 32mm
	Mounting Style	PCB Mount
	Fuse Type	Cartridge
	Clip Material	Tin Plated Beryllium Copper
	Width	7.2mm
	Length	8mm
	Height	14.3mm
	Contact Plating	Tin
	Current Rating	32A
	For Use With	6.3 x 32 mm Fuse
	Voltage Rating	600V ac/dc

	Alles selecteren
	Merk Schurter
	Fuse Size 6.3 x 32mm
	Mounting Style PCB Mount
	Fuse Type Cartridge
	Clip Material Tin Plated Beryllium Copper
	Width 7.2mm
	Length 8mm
	Height 14.3mm
	Contact Plating Tin
	Current Rating 32A
	For Use With 6.3 x 32 mm Fuse
	Voltage Rating 600V ac/dc

Datasheet

Land van herkomst:: CN

Schurter Fuseholder Clips

Professional range of Schurter fuse clips designed for 20 and 32A applications.Heavy duty fuse clips, the fuse clips offer minimal power dissipation due to high clamping force.
Applications include:
Photovoltaic applications.
Inverters.
Battery charge contollers.
String fuse holders.
DC applications.

Solder terminals and Screw Terminals

Schurter Fuse Clip

The Schurter fuse clip is a product made of silver-plated beryllium copper PCB mount fuse. It has an electric rating of 600VAC/VDC and 32A. It's designed to create a tight grip between the clip and the fuse itself and protect the fuse from the environment around it. It can be used as an alternative to fuse blocks in some cases.

Features and Benefits

• Fuse link size 6.3 x 32mm
• Heavy fuse clips offer minimal power dissipation due to high clamping force
• Operating temperature ranges between -55°C and 125°C
• Professional range of fuse clips designed for 20 and 32A applications

Applications

• Used in industrial electronic
• Photovoltaic
• Applications for high currents and voltages
• Three phase supply equipment
• Inverters
• String fuse holders
• DC applications

Certifications

• UL 4248-1 listed
• CSA 22.2 no. 4248.1
• UL File Number: E39328 listed

All fuses have Thermoplaste Polyamide bodies
