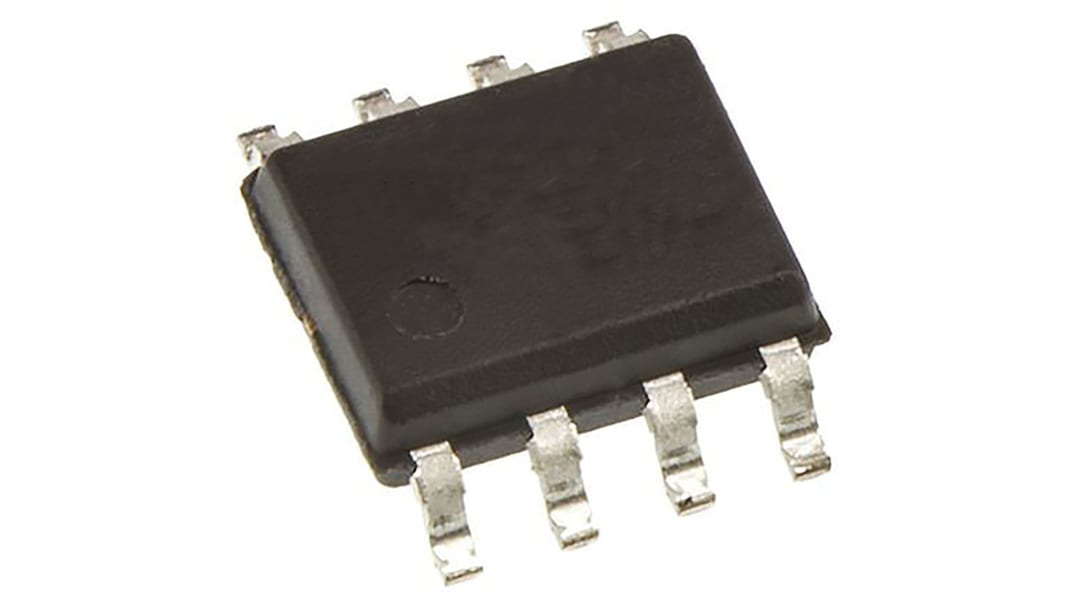

Infineon 128 kB SPI FRAM 8-Pin SOIC, FM25V01A-G
- RS-stocknr.:
- 124-2985P
- Fabrikantnummer:
- FM25V01A-G
- Fabrikant:
- Infineon
Subtotaal 2 eenheden (geleverd in een buis)*
€ 7,96
(excl. BTW)
€ 9,64
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Op voorraad
- Plus verzending 1.246 stuk(s) vanaf 02 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 2 + | € 3,98 |
*prijsindicatie
- RS-stocknr.:
- 124-2985P
- Fabrikantnummer:
- FM25V01A-G
- Fabrikant:
- Infineon
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Infineon | |
| Memory Size | 128kB | |
| Product Type | FRAM | |
| Organisation | 16k x 8 Bit | |
| Interface Type | SPI | |
| Data Bus Width | 8bit | |
| Maximum Random Access Time | 16ns | |
| Maximum Clock Frequency | 40MHz | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Width | 3.98 mm | |
| Standards/Approvals | No | |
| Length | 4.97mm | |
| Height | 1.38mm | |
| Maximum Operating Temperature | 85°C | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Supply Voltage | 2V | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | AEC-Q100 | |
| Number of Bits per Word | 8 | |
| Number of Words | 16k | |
| Alles selecteren | ||
|---|---|---|
Merk Infineon | ||
Memory Size 128kB | ||
Product Type FRAM | ||
Organisation 16k x 8 Bit | ||
Interface Type SPI | ||
Data Bus Width 8bit | ||
Maximum Random Access Time 16ns | ||
Maximum Clock Frequency 40MHz | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
Width 3.98 mm | ||
Standards/Approvals No | ||
Length 4.97mm | ||
Height 1.38mm | ||
Maximum Operating Temperature 85°C | ||
Maximum Supply Voltage 3.6V | ||
Minimum Supply Voltage 2V | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard AEC-Q100 | ||
Number of Bits per Word 8 | ||
Number of Words 16k | ||
FRAM, Cypress Semiconductor
Ferroelectric Random Access Memory (F-RAM) is energy-efficient and it has the highest-reliability of the non-volatile RAMs for both serial and parallel interfaces. Parts with suffix A are designed for automotive applications and are AEC-Q100 qualified.
Nonvolatile Ferroelectric RAM Memory
Fast write speed
High endurance
Low power consumption
FRAM (Ferroelectric RAM)
FRAM (Ferroelectric Random Access Memory) is a non-volatile memory that uses ferroelectric film as a capacitor for storing data. Possessing characteristics of both ROM and RAM devices, F-RAM features high-speed access, high endurance in write mode, low power consumption, non-volatility, and excellent tamper resistance. It is therefore ideal memory for use in smart cards which need high security and low power consumption, as well as cellular phones and other devices.
