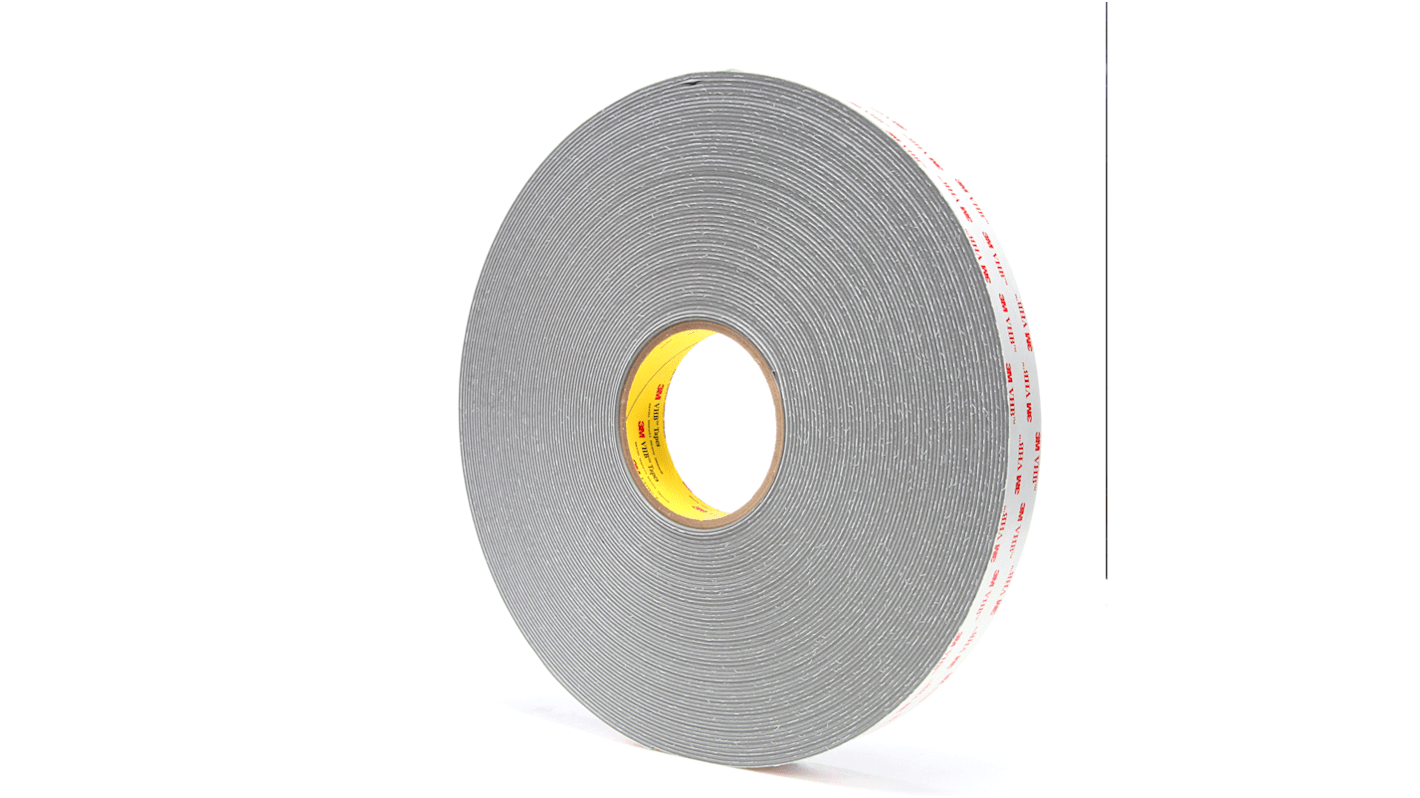

3M 4956 700007 Grey High-Strength Bonding Tape, 19mm x 33 m, 1.6 mm Thick

Bekijk alle Foam Tapes

Subtotaal (1 eenheid)*

€ 142,05

(excl. BTW)

€ 171,88

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks
Per stuk
1 +€ 142,05

*prijsindicatie

RS-stocknr.:
285-5809
Fabrikantnummer:
7000072504
Fabrikant:
3M
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

3M

Width

19mm

Product Type

High-Strength Bonding Tape

Thickness

1.6mm

Length

33m

Backing Material

Acrylic Foam

Colour

Grey

Trade Name

700007

Adhesive Material

Acrylic

Minimum Operating Temperature

90°C

Maximum Operating Temperature

+149°C

Standards/Approvals

ASTM D-3330, ASTM D-1002, ASTM D-897

Vrijgesteld

3M High-Strength Bonding Tape, 19mm Width, 1.6mm Thickness - 7000072504


This high-strength bonding tape provides a Durable adhesive solution for demanding industrial assembly and repair tasks. Designed for applications that require a robust, double-sided bond, it combines foam backing with an acrylic adhesive to perform in elevated-temperature environments and meet recognised test methods relevant to shear and peel performance.

Features & Benefits


• Acrylic foam backing delivers conformability to uneven surfaces
• Acrylic adhesive offers high initial tack for quick fixturing
• Rated for continuous use up to +149°C for high-temperature exposure
• Withstands down to 90°C for defined minimum operating conditions
• Meets ASTM D-3330, ASTM D-1002 and ASTM D-897 for standardised adhesive performance
• 1.6 mm thickness provides substantial gap-filling capability

**Applications**


• Suitable for attaching metal trim in automotive interiors
• Ideal for permanent mounting in electrical enclosures
• Used with metal panels during machine assembly operations
• Can be used for bonding components in electronic housings
• Used for securing profile sections in mechanical fabrication

What backing material assists with uneven surfaces?


The tape uses an acrylic foam backing that compresses to accommodate irregularities and maintain contact across bonded substrates.

How does the adhesive perform on metallic substrates?


The acrylic adhesive formulation is intended for structural bonding of metal and provides strong adhesion suitable for load-bearing joins when properly prepared.

What standards verify its adhesive properties?


It has been evaluated against ASTM D-3330, ASTM D-1002 and ASTM D-897, which assess peel, tensile and shear characteristics under standard test conditions.

What physical thickness influences bond behaviour?


The foam layer measures 1.6 mm, which enhances gap-filling and stress distribution across the bonded area.

How long is the tape for extended operations?


The product is supplied as a 33 m roll to support continuous use in production or long repair sessions.
