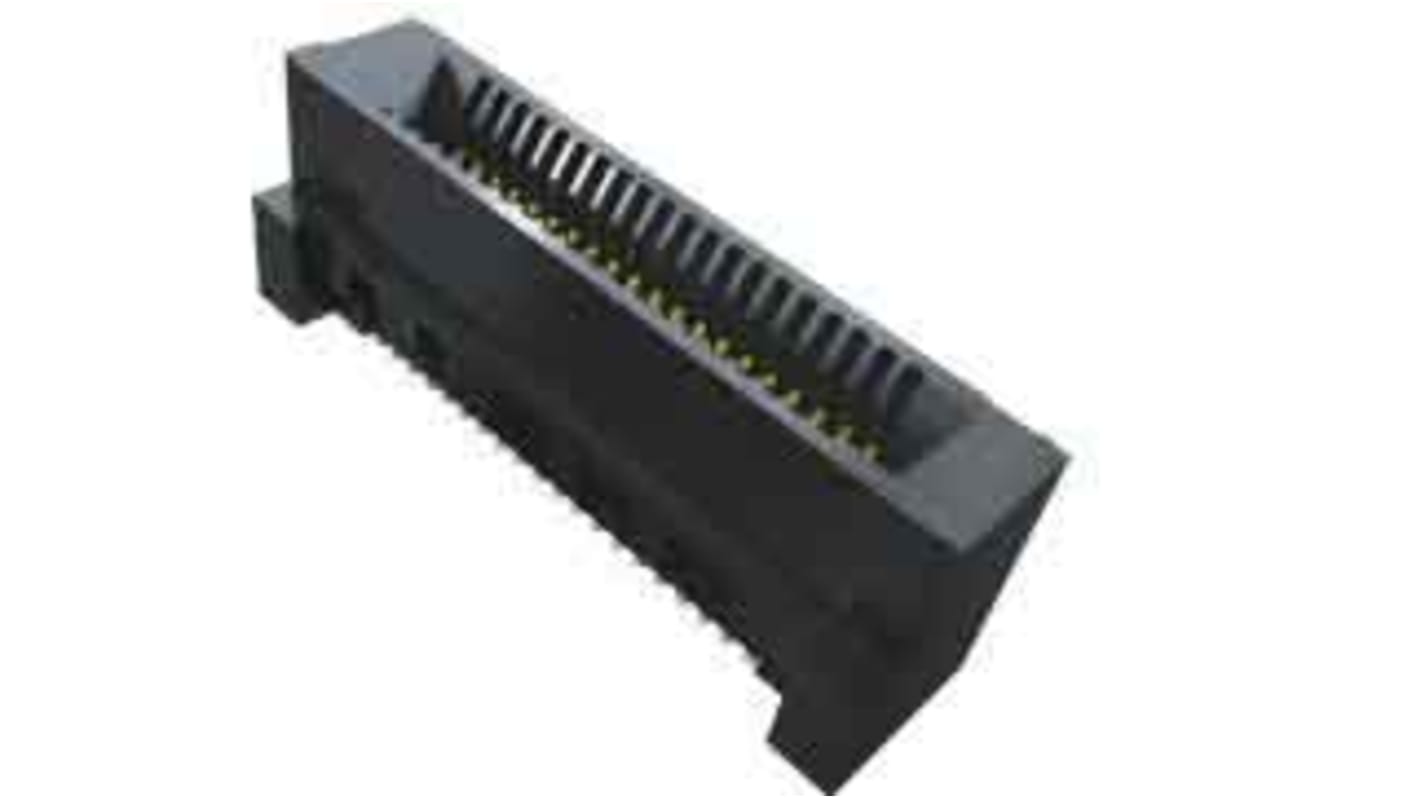

Samtec HSEC8-DV Series Vertical Edge Connector Female, Surface, 120-Contacts, 800 μm Pitch, 2 Row, Solder
- RS-stocknr.:
- 180-4899
- Fabrikantnummer:
- HSEC8-160-01-L-DV-A-BL
- Fabrikant:
- Samtec
Ontvang bulkkorting
Voeg 25 meer toe om 7% te besparen
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 8,15
(excl. BTW)
€ 9,86
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Op voorraad
- Plus verzending 8 stuk(s) vanaf 13 november 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Bespaar |
|---|---|---|
| 1 - 24 | € 8,15 | - |
| 25 - 99 | € 7,55 | 7% |
| 100 - 249 | € 7,03 | 13% |
| 250 - 499 | € 6,58 | 19% |
| 500 + | € 6,19 | 24% |
*prijsindicatie
- RS-stocknr.:
- 180-4899
- Fabrikantnummer:
- HSEC8-160-01-L-DV-A-BL
- Fabrikant:
- Samtec
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Samtec | |
| Product Type | Edge Connector | |
| Orientation | Vertical | |
| Number of Contacts | 120 | |
| Current | 2.8A | |
| Number of Rows | 2 | |
| Connector Gender | Female | |
| Pitch | 800μm | |
| Mount Type | Surface | |
| Contact Plating | Gold | |
| Contact Material | Beryllium Copper Alloy | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Card Thickness | 1.6mm | |
| Voltage | 240V | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Housing Material | Liquid Crystal Polymer | |
| Standards/Approvals | No | |
| Series | HSEC8-DV | |
| Card Type | Edge | |
| Alles selecteren | ||
|---|---|---|
Merk Samtec | ||
Product Type Edge Connector | ||
Orientation Vertical | ||
Number of Contacts 120 | ||
Current 2.8A | ||
Number of Rows 2 | ||
Connector Gender Female | ||
Pitch 800μm | ||
Mount Type Surface | ||
Contact Plating Gold | ||
Contact Material Beryllium Copper Alloy | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Card Thickness 1.6mm | ||
Voltage 240V | ||
Contact Gender Female | ||
Maximum Operating Temperature 125°C | ||
Housing Material Liquid Crystal Polymer | ||
Standards/Approvals No | ||
Series HSEC8-DV | ||
Card Type Edge | ||
- Land van herkomst:
- MY
Rugged Edge Rate® contact
Single-ended and differential pairs
Card slot: .062" (1.60 mm)
Pass-through option available
Optional board locks and cable latching features
Optional weld tab for mechanical strength
Samtec 28+ Gbps Solution
Extended Life Product™ (E.L.P.™)
