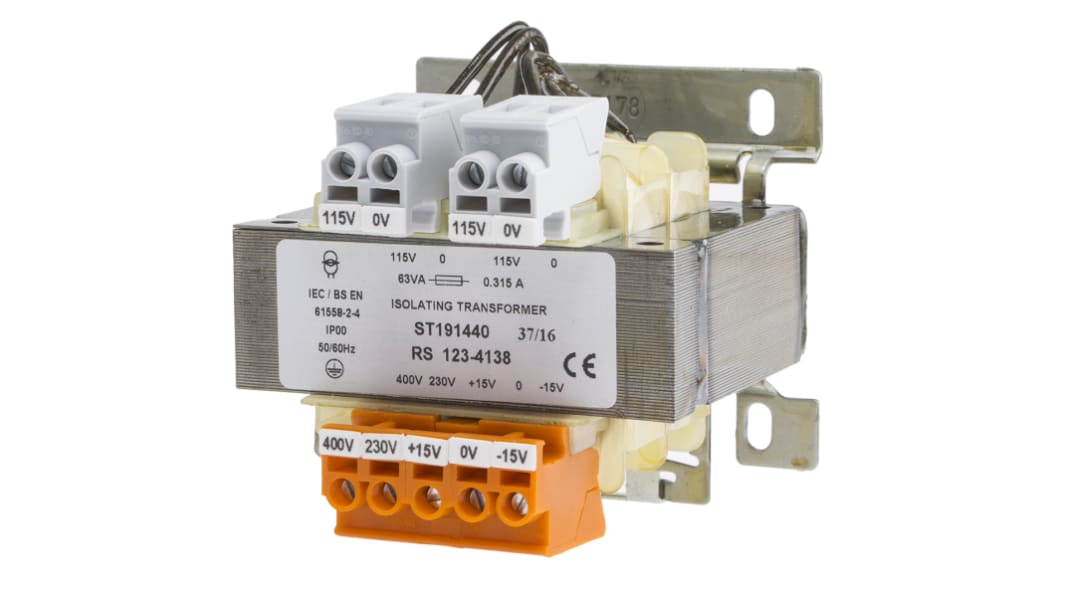

RS PRO 63VA DIN Rail Transformer, 230 → 400V ac Primary, 115V Secondary
- RS-stocknr.:
- 123-4138
- Fabrikant:
- RS PRO
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 106,98
(excl. BTW)
€ 129,45
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Op voorraad
- Plus verzending 2 stuk(s) vanaf 15 december 2025
- Plus verzending 112 stuk(s) vanaf 15 december 2025
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 9 | € 106,98 |
| 10 - 24 | € 91,04 |
| 25 - 49 | € 80,23 |
| 50 + | € 69,54 |
*prijsindicatie
- RS-stocknr.:
- 123-4138
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Primary Voltage Rating | 230 → 400V ac | |
| Secondary Voltage Rating | 115V | |
| Power Rating | 63VA | |
| Mounting Type | DIN Rail | |
| Length | 78mm | |
| Width | 60mm | |
| Depth | 94mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Weight | 1.2kg | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Primary Voltage Rating 230 → 400V ac | ||
Secondary Voltage Rating 115V | ||
Power Rating 63VA | ||
Mounting Type DIN Rail | ||
Length 78mm | ||
Width 60mm | ||
Depth 94mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Weight 1.2kg | ||
- Land van herkomst:
- PL
RS PRO 63 VA Isolation Transformer, 15 to 400 V AC Primary, 115 V AC Secondary
This isolation transformer from RS PRO transfers power safely to electrical equipment from an AC source. It's ideal for any situation where you need your equipment to function at a high level without the risk of power surges causing it to malfunction.
The transformer's primary winding has the option of a +/- 15 V adjustment, giving you flexibility in stepping voltages up or down. Lamination keeps electrical noise to low levels and the unit's coils are fully varnish-impregnated to guard against humidity and rust. Brackets allow you to fix the transformer in place with screws or on a DIN rail with ease.
Full electrical and flash testing ensures the transformer can withstand high voltages. It's frequently used for running 120 V North American electrical equipment on a 230 V UK power supply.
The transformer's primary winding has the option of a +/- 15 V adjustment, giving you flexibility in stepping voltages up or down. Lamination keeps electrical noise to low levels and the unit's coils are fully varnish-impregnated to guard against humidity and rust. Brackets allow you to fix the transformer in place with screws or on a DIN rail with ease.
Full electrical and flash testing ensures the transformer can withstand high voltages. It's frequently used for running 120 V North American electrical equipment on a 230 V UK power supply.
Features and Benefits
• Operating frequency range of 50 to 60 Hz
• Primary voltage rating of 15 V to 400 V AC
• Secondary voltage rating of 15 V AC
• Power rating of 63 VA
• Length of 78 mm
• Width of 60 mm
• Depth of 94 mm
• Weight of 1.2 kg
• Certified to BS EN 61340-5-1:2007 Electrostatic Control Standards
• Primary voltage rating of 15 V to 400 V AC
• Secondary voltage rating of 15 V AC
• Power rating of 63 VA
• Length of 78 mm
• Width of 60 mm
• Depth of 94 mm
• Weight of 1.2 kg
• Certified to BS EN 61340-5-1:2007 Electrostatic Control Standards
