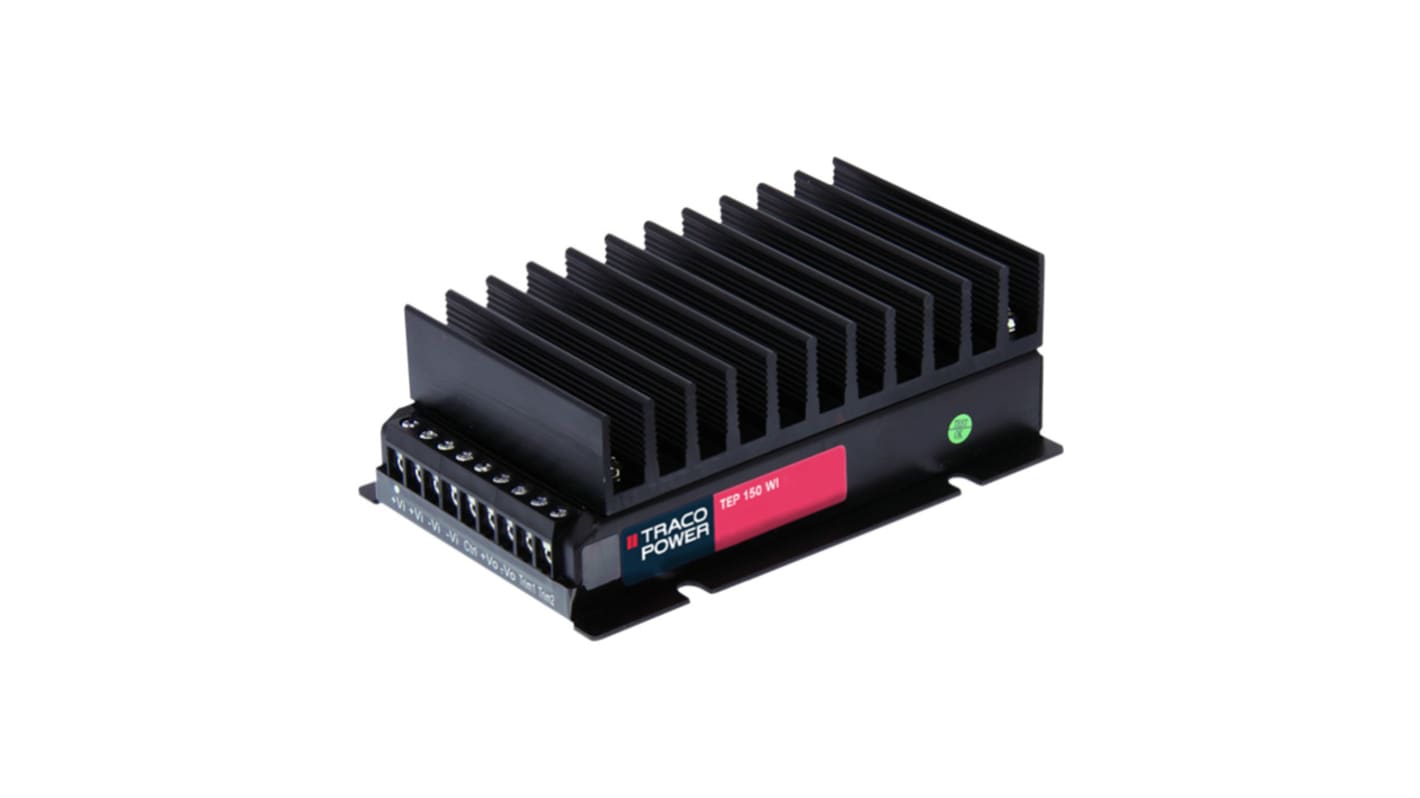

TRACOPOWER TEP 150WI DC/DC Converter, 48V dc/ 3.2 A, 36V dc Input, 9V Input 150 W, Chassis, 75 °C Max Temp -40 °C Min

RS-stocknr.:: 706-6369
Artikelnummer Distrelec:: 169-60-807
Fabrikantnummer:: TEP 150-2418WI
Fabrikant:: TRACOPOWER

TRACOPOWER TEP 150WI DC/DC Converter, 48V dc/ 3.2 A, 36V dc Input, 9V Input 150 W, Chassis, 75 °C Max Temp -40 °C Min

Bulkkorting beschikbaar

Bekijk bulkkorting

Subtotaal (1 eenheid)*

€ 228,71

(excl. BTW)

€ 276,74

(incl. BTW)

GRATIS bezorging voor bestellingen vanaf € 90,00

Op voorraad

Plus verzending 28 stuk(s) vanaf 19 oktober 2026
Plus verzending 6 stuk(s) vanaf 19 oktober 2026
Plus verzending 2 stuk(s) vanaf 23 november 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 4	€ 228,71
5 - 9	€ 221,85
10 - 24	€ 214,99
25 - 49	€ 205,84
50 +	€ 196,69

*prijsindicatie

RS-stocknr.:: 706-6369
Artikelnummer Distrelec:: 169-60-807
Fabrikantnummer:: TEP 150-2418WI
Fabrikant:: TRACOPOWER

Specificaties

Datasheets

Wetgeving en conformiteit

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	TRACOPOWER
	Output Voltage 1	48V dc
	Product Type	DC/DC Converter
	Minimum Input Voltage	9V
	Maximum Input Voltage	36V dc
	Output Current 1	3.2A
	Mount Type	Chassis
	Input Ratio	4:1
	MTBF	495000h
	Number of Outputs	1
	Output Voltage Adjustment Range	±20 %
	Isolation Voltage	2.25kV dc
	Number of Pins	9
	Maximum Output Power	150W
	Package Type	Metal case
	Length	98mm
	Series	TEP 150WI
	Width	65mm
	Standards/Approvals	No
	Depth	34mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	75°C
	Efficiency	86%

	Alles selecteren
	Merk TRACOPOWER
	Output Voltage 1 48V dc
	Product Type DC/DC Converter
	Minimum Input Voltage 9V
	Maximum Input Voltage 36V dc
	Output Current 1 3.2A
	Mount Type Chassis
	Input Ratio 4:1
	MTBF 495000h
	Number of Outputs 1
	Output Voltage Adjustment Range ±20 %
	Isolation Voltage 2.25kV dc
	Number of Pins 9
	Maximum Output Power 150W
	Package Type Metal case
	Length 98mm
	Series TEP 150WI
	Width 65mm
	Standards/Approvals No
	Depth 34mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 75°C
	Efficiency 86%

Land van herkomst:: TW

Traco Power DC-DC Converter, 2600μF Capactive Load, 203 to 330kHz Switching Frequency - TEP 150WI Series - TEP 150-2418WI

Send stable power to your devices with this DC-DC converter from Traco Power. It delivers a reliable output of 48V DC from a broad input voltage range between 9 and 36V DC. A remote On/Off function lets you manage operations from afar, saving you legwork. Space-efficient dimensions of 98 (L) x 65 (W) x 34mm (D) mean it's a cinch to slot into your setup. This converter handles demanding applications, thanks to an inbuilt convection cooling feature that dissipates thermal energy. Through-hole mounting means you can count on a quick and secure connection.

Features & Benefits

• 86% typical efficiency means it saves energy

• Mean time between failure of 495,000 hours indicates a long lifespan

• Maximum ripple and noise of 300mVp-p for glitch-free performance

• IP55-rated housing means it's protected from dust and low-pressure water jets from all directions

• Performs in temperatures between -40°C and +75°C

Applications

• Industrial automation

• Railway equipment

• Telecommunications networks

What's meant by ripple and noise?

Ripple is undesirable variability in DC that results in waste such as heat, while noise refers to random fluctuations in voltage. If left unchecked, they can disrupt the efficiency of your devices.
