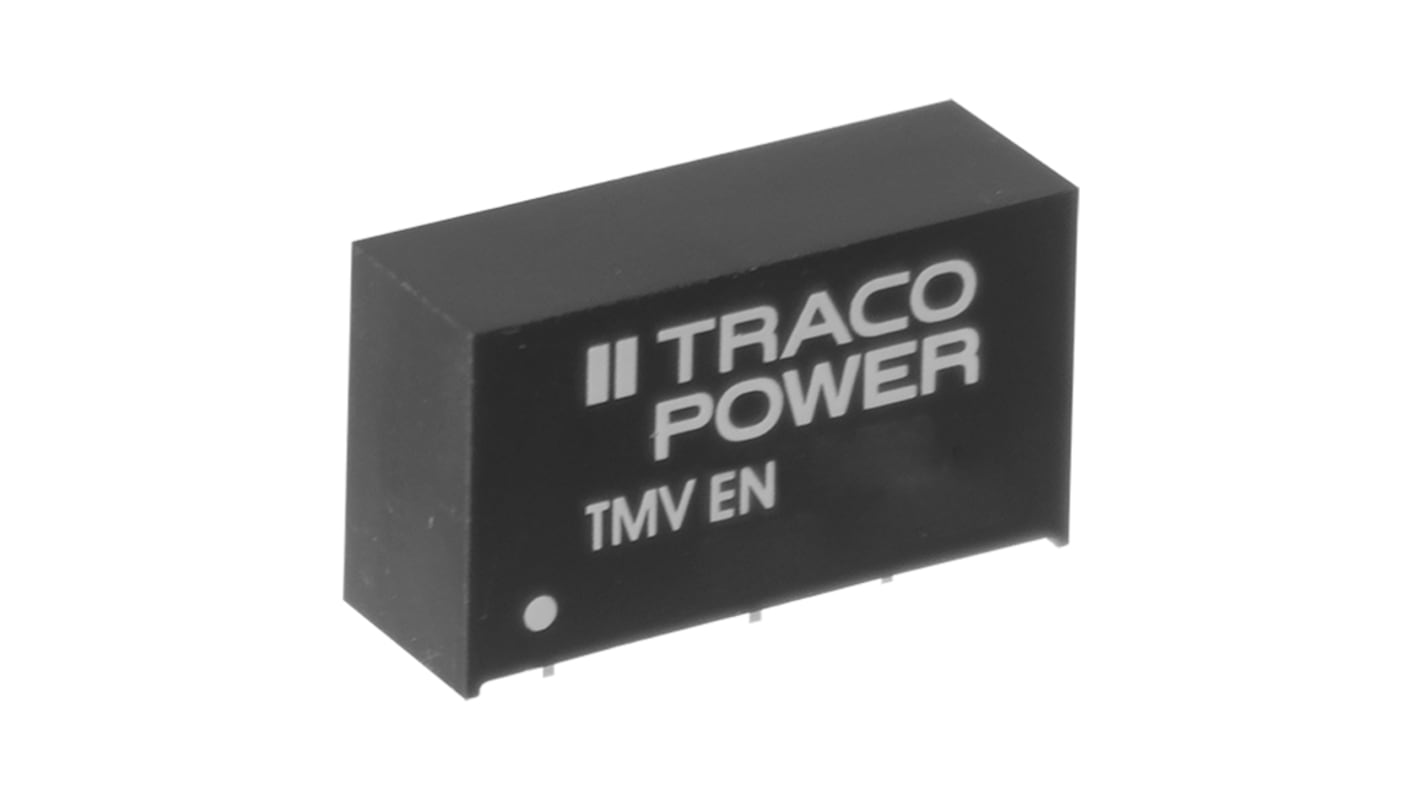

TRACO POWER TMV EN DC/DC Converter, 12V/ 34 mA, 5V dc Input, 0mV Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min
- RS-stocknr.:
- 161-6722
- Fabrikantnummer:
- TMV 0515DEN
- Fabrikant:
- TRACO POWER
Ontvang bulkkorting
Voeg 5 meer toe om € 18,95 te besparen
Bekijk bulkkortingSubtotaal (1 tube van 10 eenheden)*
€ 126,36
(excl. BTW)
€ 152,90
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Op voorraad
- Plus verzending 3 stuk(s) vanaf 10 november 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Tube(s) | Per tube | Per stuk* | Bespaar |
|---|---|---|---|
| 1 - 4 | € 126,36 | € 12,636 | - |
| 5 - 9 | € 122,57 | € 12,257 | € 18,95 |
| 10 - 24 | € 118,79 | € 11,879 | € 75,70 |
| 25 - 49 | € 113,73 | € 11,373 | € 315,75 |
| 50 + | € 108,67 | € 10,867 | € 884,50 |
*prijsindicatie
- RS-stocknr.:
- 161-6722
- Fabrikantnummer:
- TMV 0515DEN
- Fabrikant:
- TRACO POWER
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | TRACO POWER | |
| Output Voltage 1 | 12V | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 5V dc | |
| Minimum Input Voltage | 0mV | |
| Output Current 1 | 34mA | |
| Output Current 2 | 34mA | |
| Mount Type | Through Hole | |
| Output Voltage 2 | -12V | |
| Number of Outputs | 2 | |
| MTBF | 2000000h | |
| Output Voltage Adjustment Range | 5 to ±10 V | |
| Number of Pins | 5 | |
| Isolation Voltage | 3kV dc | |
| Maximum Output Power | 1W | |
| Package Type | SIL | |
| Depth | 12.5mm | |
| Standards/Approvals | No | |
| Length | 22mm | |
| Series | TMV EN | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 79% | |
| Minimum Operating Temperature | -40°C | |
| Alles selecteren | ||
|---|---|---|
Merk TRACO POWER | ||
Output Voltage 1 12V | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 5V dc | ||
Minimum Input Voltage 0mV | ||
Output Current 1 34mA | ||
Output Current 2 34mA | ||
Mount Type Through Hole | ||
Output Voltage 2 -12V | ||
Number of Outputs 2 | ||
MTBF 2000000h | ||
Output Voltage Adjustment Range 5 to ±10 V | ||
Number of Pins 5 | ||
Isolation Voltage 3kV dc | ||
Maximum Output Power 1W | ||
Package Type SIL | ||
Depth 12.5mm | ||
Standards/Approvals No | ||
Length 22mm | ||
Series TMV EN | ||
Maximum Operating Temperature 85°C | ||
Efficiency 79% | ||
Minimum Operating Temperature -40°C | ||
- Land van herkomst:
- TW
Traco 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - TMV-EN Series
The Traco TMV-EN Series is a family of 1W single/dual output semi-regulated DC/DC converters with an ultra- miniature design and high input/output isolation of 6000Vdc. These semi-regulated DC/DC converters are Ideal for use within power drivers where unregulated DC/DC converters do not meet the input voltage range at load change. The TMV-EN series is Ideal for applications such as distributed power systems, mixed analog/digital subsystems, portable test equipments, local power networks and battery backed systems.
High isolation test voltage, 6kV Peak
Reinforced insulation, rated for 250Vrms working voltage
Unregulated outputs
Short circuit protection, 1sec (limited)
UL94V-0 package material
Small footprint SIP-7 package
Note
De-rating 4% per °C above 70°C.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
Approvals
CB, CSA
Standards
IEC/EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1-03
