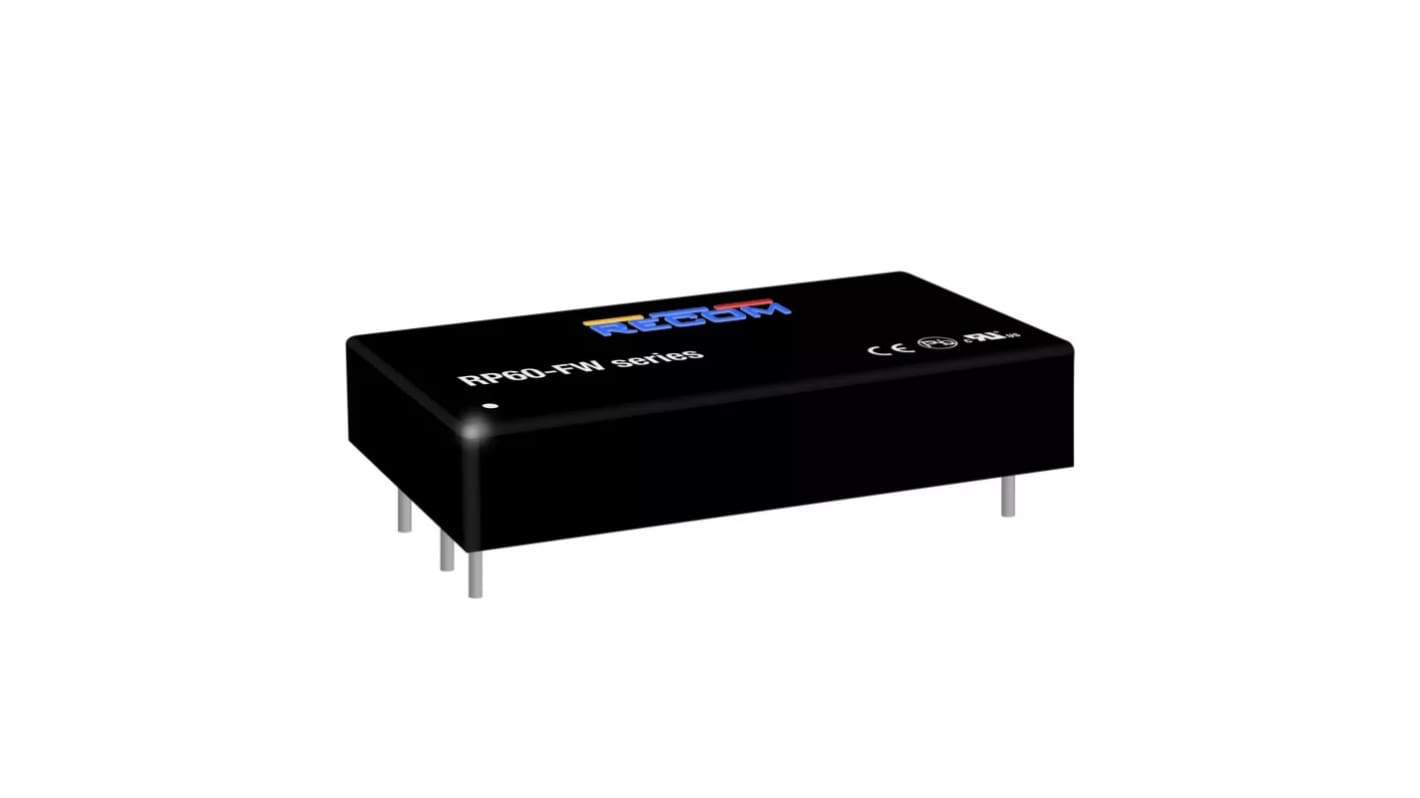

Recom RPA60-FW DC-DC Converter, 24V dc/ 2.5A Output, 9 → 36 V dc Input, 60W, Through Hole, +105°C Max Temp -40°C

Bekijk alle DC-DC Converters

Subtotaal (1 eenheid)*

€ 73,37

(excl. BTW)

€ 88,78

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Tijdelijk niet op voorraad
  • Verzending vanaf 23 februari 2027
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 73,37

*prijsindicatie

RS-stocknr.:
325-662
Fabrikantnummer:
RPA60-2424SFW/P
Fabrikant:
Recom
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Recom

Output Voltage

24V dc

Input Voltage Range

9 → 36 V dc

Power Rating

60W

Input Voltage Nominal

24 V dc

Output Current

2.5A

Mounting Type

Through Hole

Series

RPA60-FW

Maximum Temperature

+105°C

Minimum Temperature

-40°C

Land van herkomst:
TH
The Recom DC/DC Converter are high power density, wide input voltage range 60W DC/DC converters in an industry standard 2 x 1 inch case size. Despite their small size, the RPA60-FW converters are fully specified devices with output currents up to 12Amps, up to 93% efficiency, no minimum load, UVLO, 1500VDC / 1 minute isolation, tight regulation and low ripple/noise figures. The trim Mable outputs are also fully protected against over-temperature, short circuits, overcurrent and overvoltage. The converters are UL/IEC/EN60950 and EN50155 certified and will find many uses in railway and industrial applications where board space is at a premium.

4:1 wide input voltage range
1.5kVDC / 1 minute isolation
UL/IEC/EN60950 and EN50155 certified
Efficiency up to 93.3%
OVP, OCP & OTP
+105°C max case temperature
