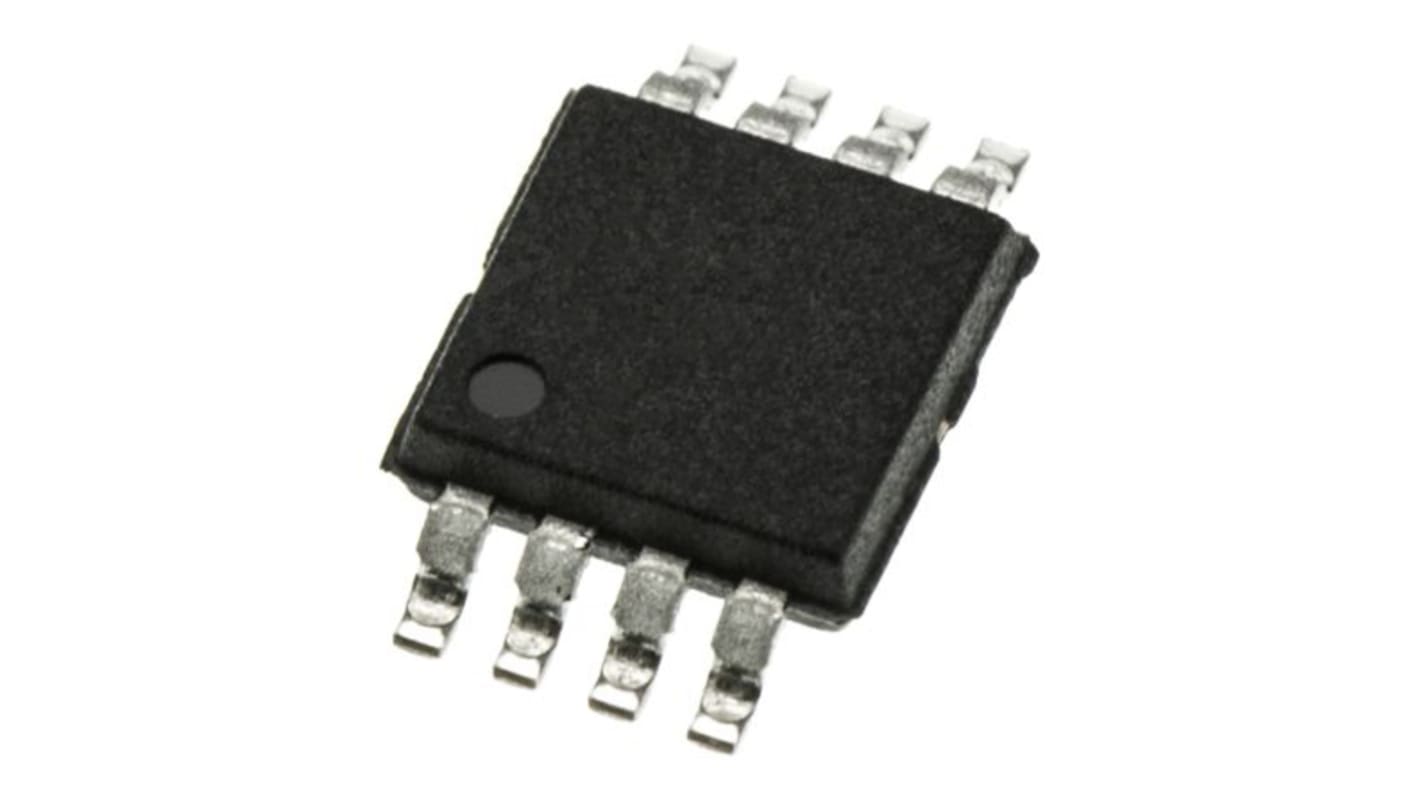

MAX4373TEUA+ Maxim Integrated, Current Sensing Amplifier Single Voltage 8-Pin μMAX
- RS-stocknr.:
- 190-6341
- Fabrikantnummer:
- MAX4373TEUA+
- Fabrikant:
- Maxim Integrated
Bekijk deze categorie
430 op voorraad - levertijd is 1 werkdag(en).
Prijs Each (In a Pack of 5)
5,11 €
(excl. BTW)
6,18 €
(incl. BTW)
| Aantal stuks | Per stuk | Per pak* |
| 5 - 5 | 5,11 € | 25,55 € |
| 10 - 20 | 4,60 € | 23,00 € |
| 25 - 95 | 4,344 € | 21,72 € |
| 100 + | 3,674 € | 18,37 € |
| *prijsindicatie | ||
Verpakkingsopties
- RS-stocknr.:
- 190-6341
- Fabrikantnummer:
- MAX4373TEUA+
- Fabrikant:
- Maxim Integrated
Datasheets
Wetgeving en conformiteit
- Land van herkomst:
- TH
Productomschrijving
Integrated Current-Sensing Solution Simplifies High-Side Current Monitoring
Current-Sense Amplifier plus Internal Comparator and Bandgap Reference with Improved Accuracy
1mV (max) Input Offset Voltage
2% (max) Full-Scale Accuracy
Internal Bandgap Reference (±1.6% Accuracy)
High Accuracy +2V to +28V Common-Mode Range, Functional Down to 0V Supply Voltage Ensures Current Monitoring Even In Deep Discharge of Battery Pack
Low Power Consumption Extends Battery Life
50μA Supply Current
Single +2.7V to +28V Operating Supply
Latching Comparator Output Eliminates Oscillation
Three Gain Versions (+20V/V, +50V/V, +100V/V) Support Different Size Battery Packs
Applications
Cell Phones
General-System/Board-Level Current Monitoring
Notebook Computers
Portable Battery-Powered Systems
Power-Management Systems
Precision Current Sources
Smart Battery Packs/Chargers
Current-Sense Amplifier plus Internal Comparator and Bandgap Reference with Improved Accuracy
1mV (max) Input Offset Voltage
2% (max) Full-Scale Accuracy
Internal Bandgap Reference (±1.6% Accuracy)
High Accuracy +2V to +28V Common-Mode Range, Functional Down to 0V Supply Voltage Ensures Current Monitoring Even In Deep Discharge of Battery Pack
Low Power Consumption Extends Battery Life
50μA Supply Current
Single +2.7V to +28V Operating Supply
Latching Comparator Output Eliminates Oscillation
Three Gain Versions (+20V/V, +50V/V, +100V/V) Support Different Size Battery Packs
Applications
Cell Phones
General-System/Board-Level Current Monitoring
Notebook Computers
Portable Battery-Powered Systems
Power-Management Systems
Precision Current Sources
Smart Battery Packs/Chargers
Specificaties
| Kenmerk | Waarde |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 28 V |
| Minimum CMRR | 85 (Typ.)dB |
| Number of Channels per Chip | 1 |
| Output Type | Voltage |
| Maximum Supply Current | 100 μA |
| Mounting Type | Surface Mount |
| Package Type | μMAX |
| Pin Count | 8 |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Height | 0.95mm |
| Length | 3.1mm |
| Maximum Operating Supply Voltage | 28 V |
| Width | 3.1mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Minimum Operating Temperature | -40 °C |
