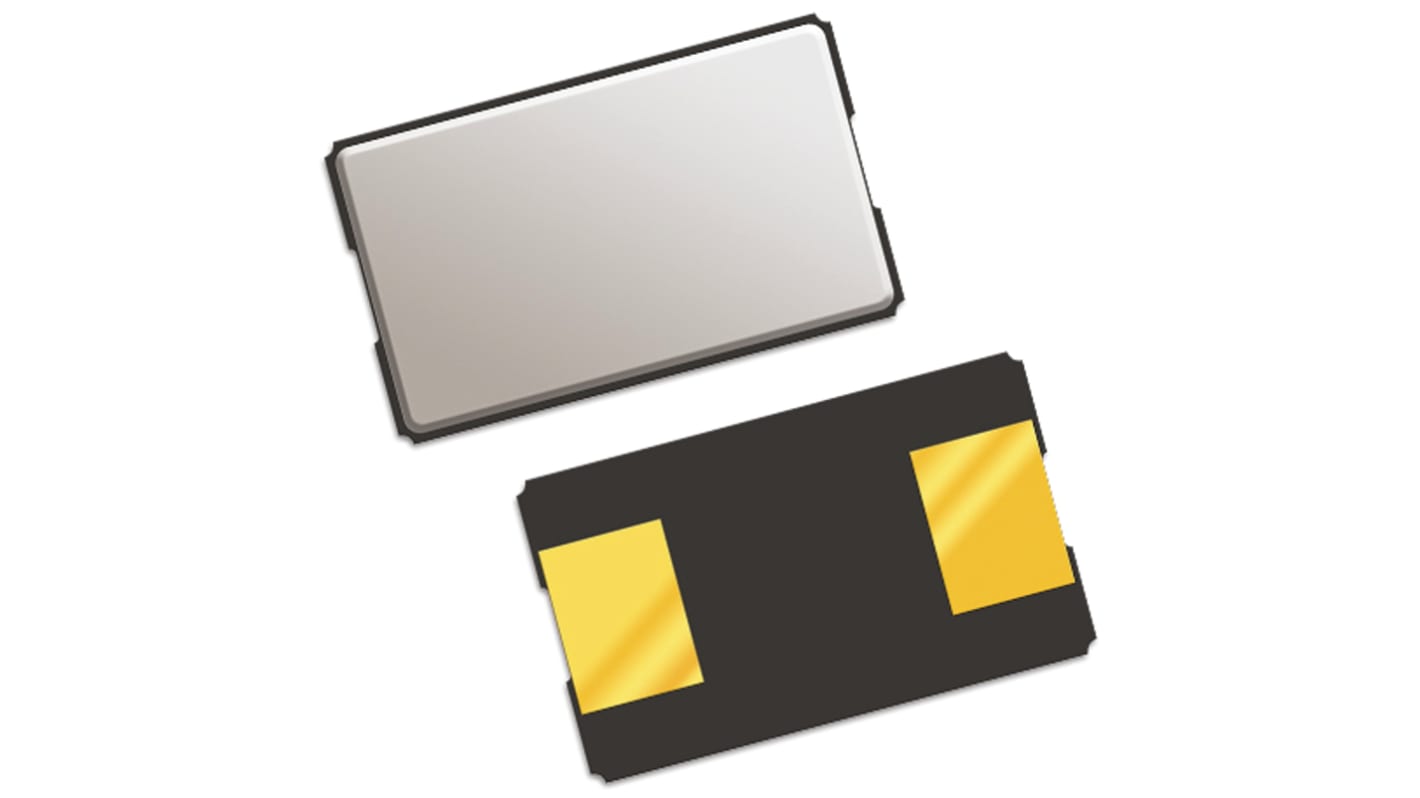

QT Quarztechnik 25MHz Crystal ±10ppm SMD 2-Pin 6.2 x 3.7 x 1.2mm
- RS-stocknr.:
- 815-0285
- Fabrikantnummer:
- QTC6B25.0000FDT1I20R
- Fabrikant:
- QT Quarztechnik
Bulkkorting beschikbaar
Subtotaal (1 zak van 5 eenheden)*
€ 8,43
(excl. BTW)
€ 10,20
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 75,00
Laatste voorraad RS
- Laatste 100 stuk(s), klaar voor verzending vanaf een andere locatie
Aantal stuks | Per stuk | Per Zak* |
|---|---|---|
| 5 - 20 | € 1,686 | € 8,43 |
| 25 - 45 | € 1,432 | € 7,16 |
| 50 - 95 | € 1,268 | € 6,34 |
| 100 - 245 | € 1,09 | € 5,45 |
| 250 + | € 1,01 | € 5,05 |
*prijsindicatie
- RS-stocknr.:
- 815-0285
- Fabrikantnummer:
- QTC6B25.0000FDT1I20R
- Fabrikant:
- QT Quarztechnik
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | QT Quarztechnik | |
| Standard Frequency | 25MHz | |
| Mounting Type | Surface Mount | |
| Load Capacitance | 18pF | |
| Package Type | SMD | |
| Pin Count | 2 | |
| Length | 6.2mm | |
| Width | 3.7mm | |
| Height | 1.2mm | |
| Dimensions | 6.2 x 3.7 x 1.2mm | |
| Frequency Tolerance | ±10ppm | |
| Frequency Stability | ±20ppm | |
| Series Resistance | 40Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Alles selecteren | ||
|---|---|---|
Merk QT Quarztechnik | ||
Standard Frequency 25MHz | ||
Mounting Type Surface Mount | ||
Load Capacitance 18pF | ||
Package Type SMD | ||
Pin Count 2 | ||
Length 6.2mm | ||
Width 3.7mm | ||
Height 1.2mm | ||
Dimensions 6.2 x 3.7 x 1.2mm | ||
Frequency Tolerance ±10ppm | ||
Frequency Stability ±20ppm | ||
Series Resistance 40Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- Land van herkomst:
- CN
QTC6B Series SMD Quartz Crystal Unit
The QTC6B Series 2-Pad SMD Quartz Crystal Unit is suitable for high density applications. Other applications include modem, communication and test equipment. PMCIA, wireless and automotive.
Features and Benefits:
Low in height, suitable for thin equipment
Ceramic package and metal lid assure high reliability
Tight tolerance and stability available
Ceramic package and metal lid assure high reliability
Tight tolerance and stability available
Crystals 6x3.6mm Ceramic case
