Honeywell Hour Meter, 6 Digit LCD, 500Hz, 9 → 64 V
- RS-stocknr.:
- 854-1401
- Fabrikantnummer:
- LM-HH4AS-H21
- Fabrikant:
- Honeywell
Niet beschikbaar
RS heeft dit product niet meer op voorraad.
- RS-stocknr.:
- 854-1401
- Fabrikantnummer:
- LM-HH4AS-H21
- Fabrikant:
- Honeywell
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Honeywell | |
| Supply Voltage | 9 → 64 V | |
| Display Type | LCD | |
| Function | Hour Meter | |
| Input Type | Voltage | |
| Connection Type | Terminal | |
| Number of Digits | 6 | |
| Mounting Type | Panel Mount | |
| Digit Height | 7 mm | |
| Backlighting | Yes | |
| Maximum Count Frequency | 500Hz | |
| Display Range | 0 → 99999.9 h | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Measurement Range | 0 → 99999.9h | |
| Alles selecteren | ||
|---|---|---|
Merk Honeywell | ||
Supply Voltage 9 → 64 V | ||
Display Type LCD | ||
Function Hour Meter | ||
Input Type Voltage | ||
Connection Type Terminal | ||
Number of Digits 6 | ||
Mounting Type Panel Mount | ||
Digit Height 7 mm | ||
Backlighting Yes | ||
Maximum Count Frequency 500Hz | ||
Display Range 0 → 99999.9 h | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Measurement Range 0 → 99999.9h | ||
- Land van herkomst:
- CN

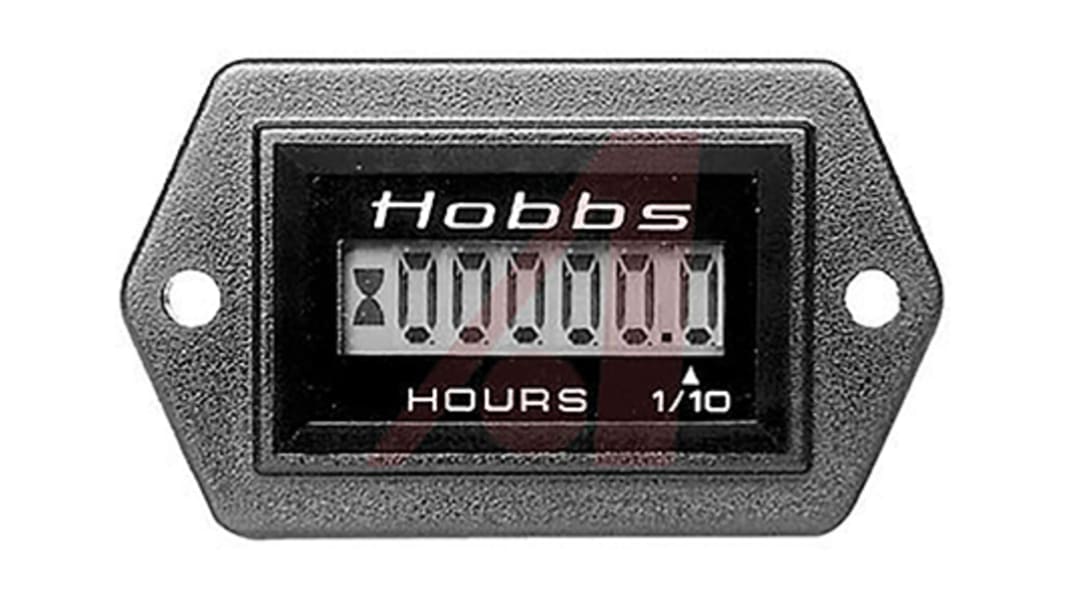

Honeywell LM Series LCD Hour Meters
The LM series has been designed as a sealed, digital hour meter suitable for monitoring and recording elapsed running time. This is displayed on a digital LCD and normally shows hours and tenths of hours. They are ideally suited for applications where maintenance needs to be carried out on expensive manufacturing or transportation equipment after a desired time frame of operation.
For added protection these devices feature a 40-year memory data retention without power. They also have a long reset time to offer customers the protection against malfunction of reset.
For added protection these devices feature a 40-year memory data retention without power. They also have a long reset time to offer customers the protection against malfunction of reset.
Features:
Backlight and large 7 mm display ease readability
Digital, Microcontroller Unit LCD
Durable design of mounting assembly
IP67 environmental sealing provides enhanced durability
Shock and vibration resistance allow for Use in a wide variety of tough applications
Volt Range: 9 to 64 V
Backlight and large 7 mm display ease readability
Digital, Microcontroller Unit LCD
Durable design of mounting assembly
IP67 environmental sealing provides enhanced durability
Shock and vibration resistance allow for Use in a wide variety of tough applications
Volt Range: 9 to 64 V
Standards
UL/CE Approvals
