AXINDUS EGSF Control Cable, 3 Cores, 0.9mm², Screened, 100 m, Blue Polyvinyl Chloride Sheath
- RS-stocknr.:
- 267-6563
- Fabrikantnummer:
- 03IP09EGSF
- Fabrikant:
- AXINDUS

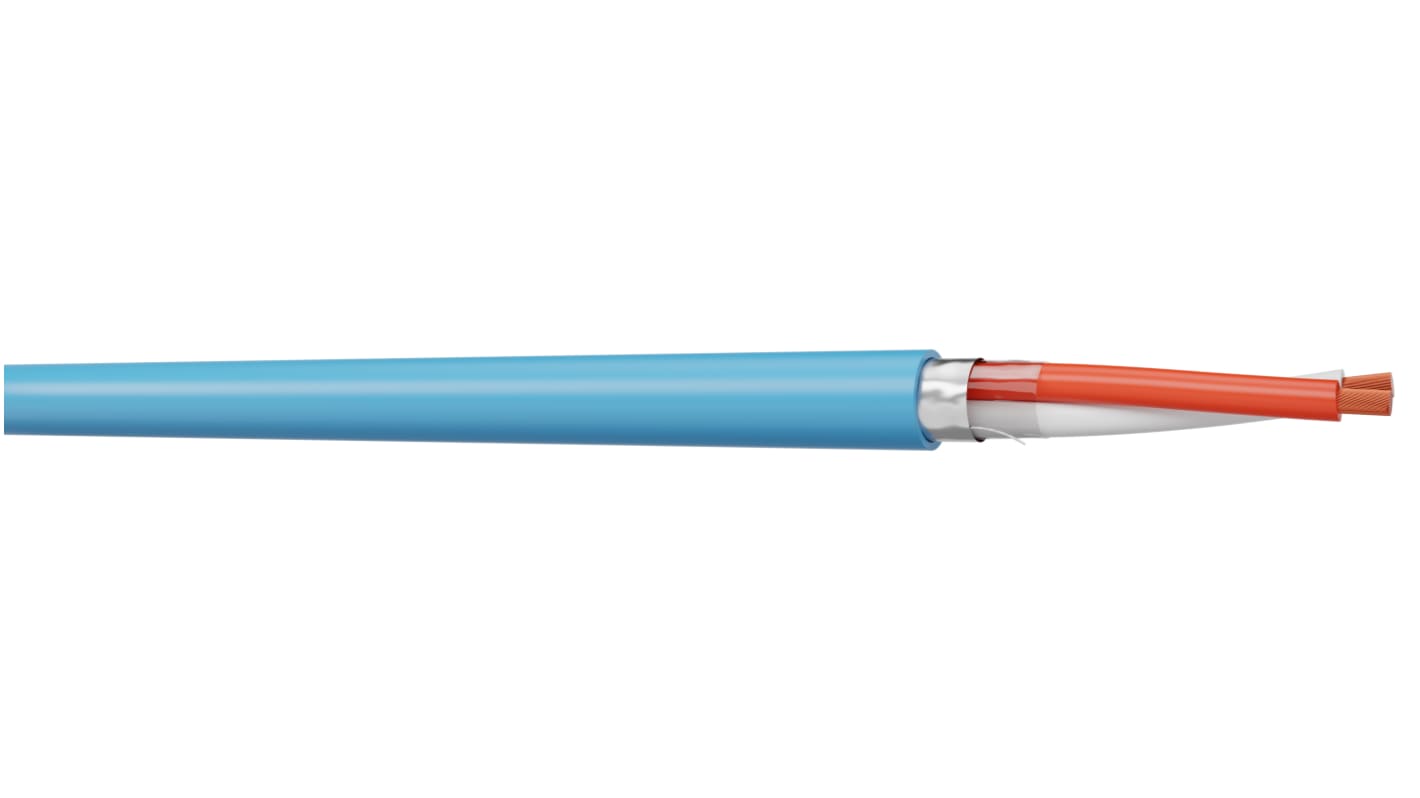

Afbeelding representeert productcategorie
Subtotaal (1 rol van 100 meter)*
€ 327,70
(excl. BTW)
€ 396,52
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 11 mei 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Rol(len) | Per rol | Per meter* |
|---|---|---|
| 1 + | € 327,70 | € 3,277 |
*prijsindicatie
- RS-stocknr.:
- 267-6563
- Fabrikantnummer:
- 03IP09EGSF
- Fabrikant:
- AXINDUS
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | AXINDUS | |
| Series | EGSF | |
| Product Type | Control Cable | |
| Number of Cores | 3 | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Blue | |
| Screened/Unscreened | Screened | |
| Armoured | Yes | |
| Cable Length | 100m | |
| Outside Diameter | 11.2mm | |
| Voltage | 500V | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | NF M 87-202 | |
| Cable CSA | 0.9mm² | |
| Hazardous Area Certification | NO | |
| Fire Behaviour | Flame Retardant NF C 32-070/C2, IEC 60332-1 | |
| Alles selecteren | ||
|---|---|---|
Merk AXINDUS | ||
Series EGSF | ||
Product Type Control Cable | ||
Number of Cores 3 | ||
Conductor Material Bare Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Blue | ||
Screened/Unscreened Screened | ||
Armoured Yes | ||
Cable Length 100m | ||
Outside Diameter 11.2mm | ||
Voltage 500V | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals NF M 87-202 | ||
Cable CSA 0.9mm² | ||
Hazardous Area Certification NO | ||
Fire Behaviour Flame Retardant NF C 32-070/C2, IEC 60332-1 | ||
The CAE Grouped instrumentation cables are used for the transmission of analogue measurement signals in the papermaking, chemical and petrochemical industries.
Operating temperature is -15 °C to +80°C
Burning behaviour flame retardant NF C 32-070/C2 and IEC 60332-1
