- RS-stocknr.:
- 205-8965
- Fabrikantnummer:
- 34_QMA-SMA-50-1/133_NE
- Fabrikant:
- Huber+Suhner
tijdelijk niet op voorraad – nieuwe voorraad verwacht op 27/08/2024, met een levertijd van 2 à 3 werkdagen.
Prijs Per stuk
€ 82,49
(excl. BTW)
€ 99,81
(incl. BTW)
Aantal stuks | Per stuk |
---|---|
1 - 9 | € 82,49 |
10 - 24 | € 75,31 |
25 - 49 | € 69,29 |
50 - 99 | € 64,17 |
100 + | € 57,74 |
- RS-stocknr.:
- 205-8965
- Fabrikantnummer:
- 34_QMA-SMA-50-1/133_NE
- Fabrikant:
- Huber+Suhner
Datasheets
Wetgeving en conformiteit
- Land van herkomst:
- CN
Productomschrijving

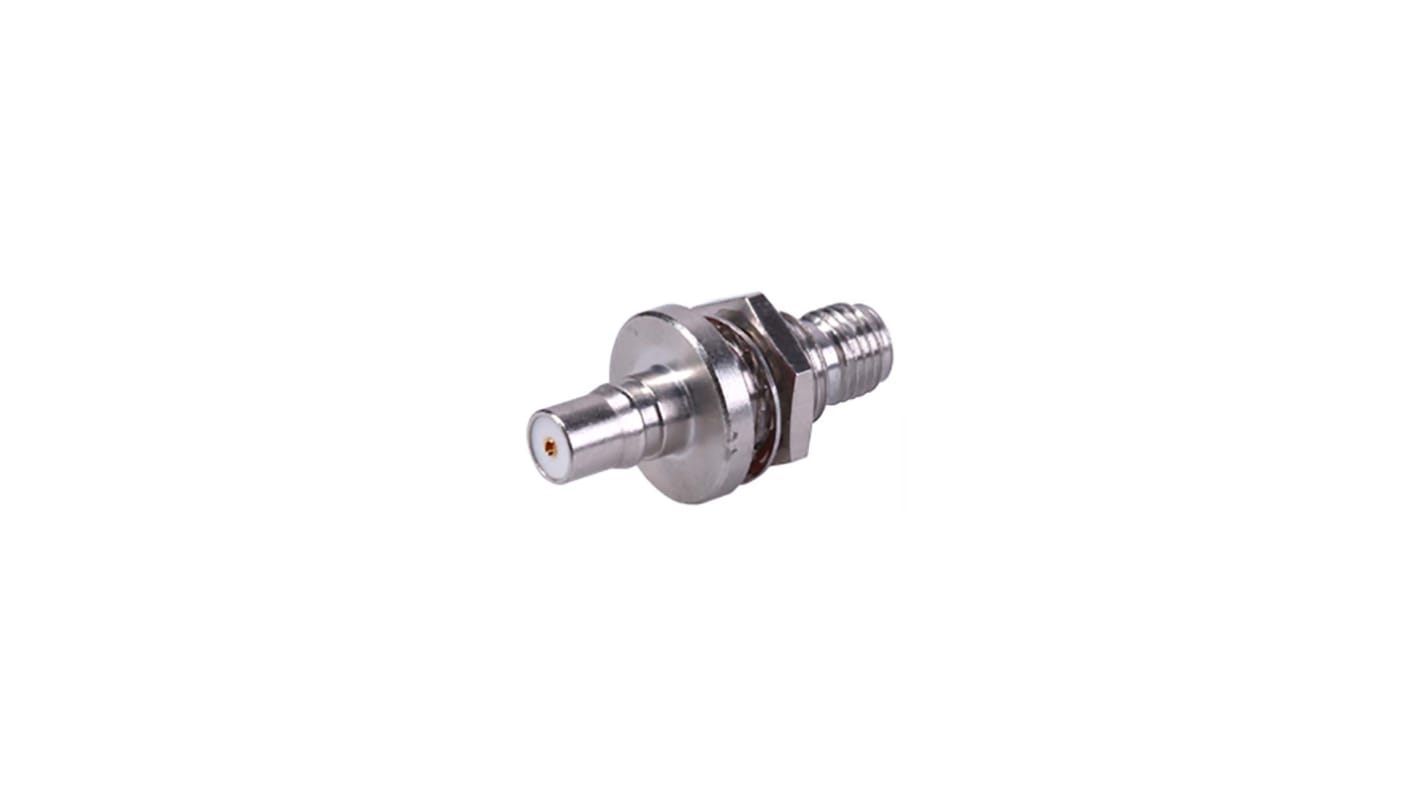

The Huber & Suhner coaxial adapters has 50 Ohm impedance. It has 18 GHz impedance frequency. The RF Coaxial adapter is a single piece component allowing the connection of two different pieces of equipment that cannot be joined directly.
Impedance 50 O
Interface frequency max. 18 GHz
Frequency range DC to 2.5 GHz 2.5 to 6 GHz 6 to 18 GHz
Return loss = 33 dB = 25 dB = 18 dB
Chassis torque 4 Nm
Number of mattings 100
Weight 0.0074 kg
Operating temperature -40 °C to 85 °C
Interface frequency max. 18 GHz
Frequency range DC to 2.5 GHz 2.5 to 6 GHz 6 to 18 GHz
Return loss = 33 dB = 25 dB = 18 dB
Chassis torque 4 Nm
Number of mattings 100
Weight 0.0074 kg
Operating temperature -40 °C to 85 °C
Specificaties
Kenmerk | Waarde |
---|---|
Gender A | Female |
Gender B | Female |
Impedance | 50Ω |
Operating Frequency | 18GHz |
