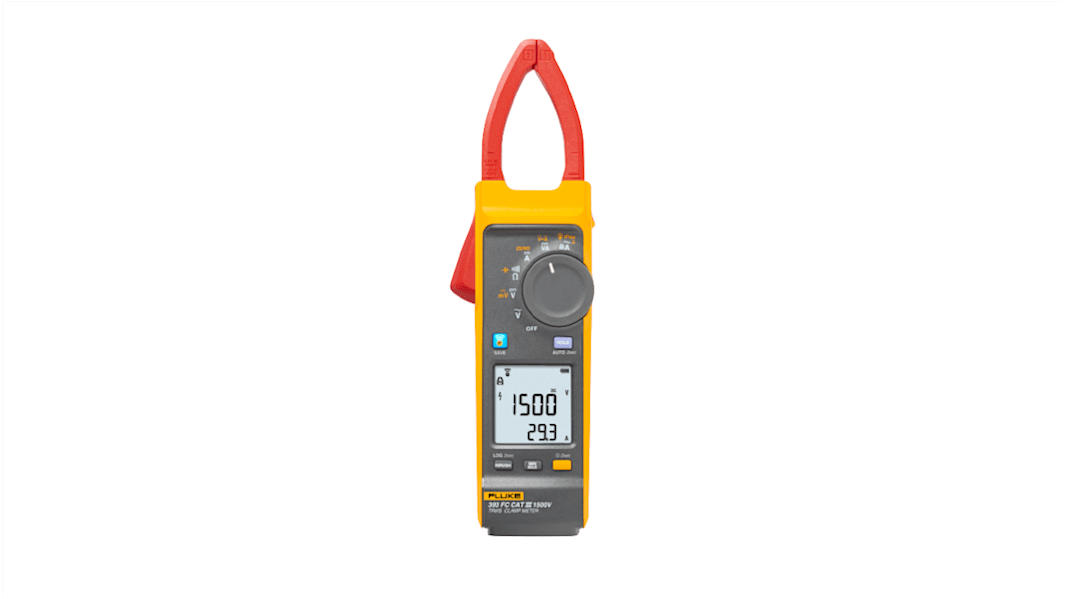

Fluke 393FC/E Clamp Meter Wi-Fi, 1000A dc, Max Current 2500A ac CAT III 1500V

Bekijk alle Clamp Meters

Subtotaal (1 eenheid)*

€ 870,62

(excl. BTW)

€ 1.053,45

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Beperkte voorraad
  • 4 resterend, klaar voor verzending
  • 18 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 870,62

*prijsindicatie

Kalibratie-opties

presentation
Fluke 393FC/E Clamp Meter Wi-Fi, 1000A dc, Max Current 2500A ac CAT III 1500V With RS Calibration
Calibration Type:
RSCAL
RS-stocknr.
230-1140

la pièce

939,62 €

(excl. BTW)

1 136,94 €

(incl. BTW)

RS-stocknr.:
230-0812
Fabrikantnummer:
FLUKE-393FC/E
Fabrikant:
Fluke
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Fluke

Absolute Maximum AC Current Measurement

2500A ac

Absolute Maximum DC Current Measurement

1000A dc

Absolute Maximum AC Voltage Measurement

1000V ac

Absolute Maximum DC Voltage Measurement

1500V dc

Model Number

393FC/E

Connectivity

Wi-Fi

AC Current Measurement Resolution

0.1A

DC Current Measurement Resolution

0.1A

Best DC Current Accuracy

2 % RD + 5 digit

Clamp Meter Type

AC/DC Clamp Meter

Best AC Current Accuracy

3 % RD + 5 digits

Best AC Voltage Accuracy

1 % RD + 5 digits

Best DC Voltage Accuracy

1 % RD + 5 digits

True RMS

Yes

DC Voltage Measurement Resolution

600 → 1500V

AC Current Measurement Range

999.9 A

Weight

520g

Minimum Operating Temperature

-10°C

Height

49mm

Dimensions

281 x 84 x 49mm

Safety Category

CAT III 1500 V, CAT IV 600V

AC Voltage Measurement Range

600 → 1000 V

AC Voltage Measurement Resolution

0.1 → 1V

Length

281mm

Power Source

Battery

Width

84mm

DC Current Measurement Range

999.9 A

Maximum Operating Temperature

+50°C

Battery Type

AA

Land van herkomst:
CN
The FLUKE-393FC/E CAT III 1500 V True-rms Clamp Meter with iFlex is designed for technicians who work in dc environments up to 1500 V solar arrays, wind power, electric railways, data centers battery banks for uninterruptible power supplies. The clamp will measure up to 1500 V dc, 1000 V ac, and up to 999.9 A dc or ac through the clamp jaw. The included iFlex flexible current probe extended ac current measurements up to 2500 amps. This clamp has a thin jaw, giving you access to cables in crowded combiner boxes. Test leads are designed with your work in mind, and are also rated to CAT III 1500 V.

Batteries 2 AA IEC LR6 alkaline
Display Dual display with backlight
Automatic power off 20 minutes
Range 999.9 A
Resolution 0.1 A
