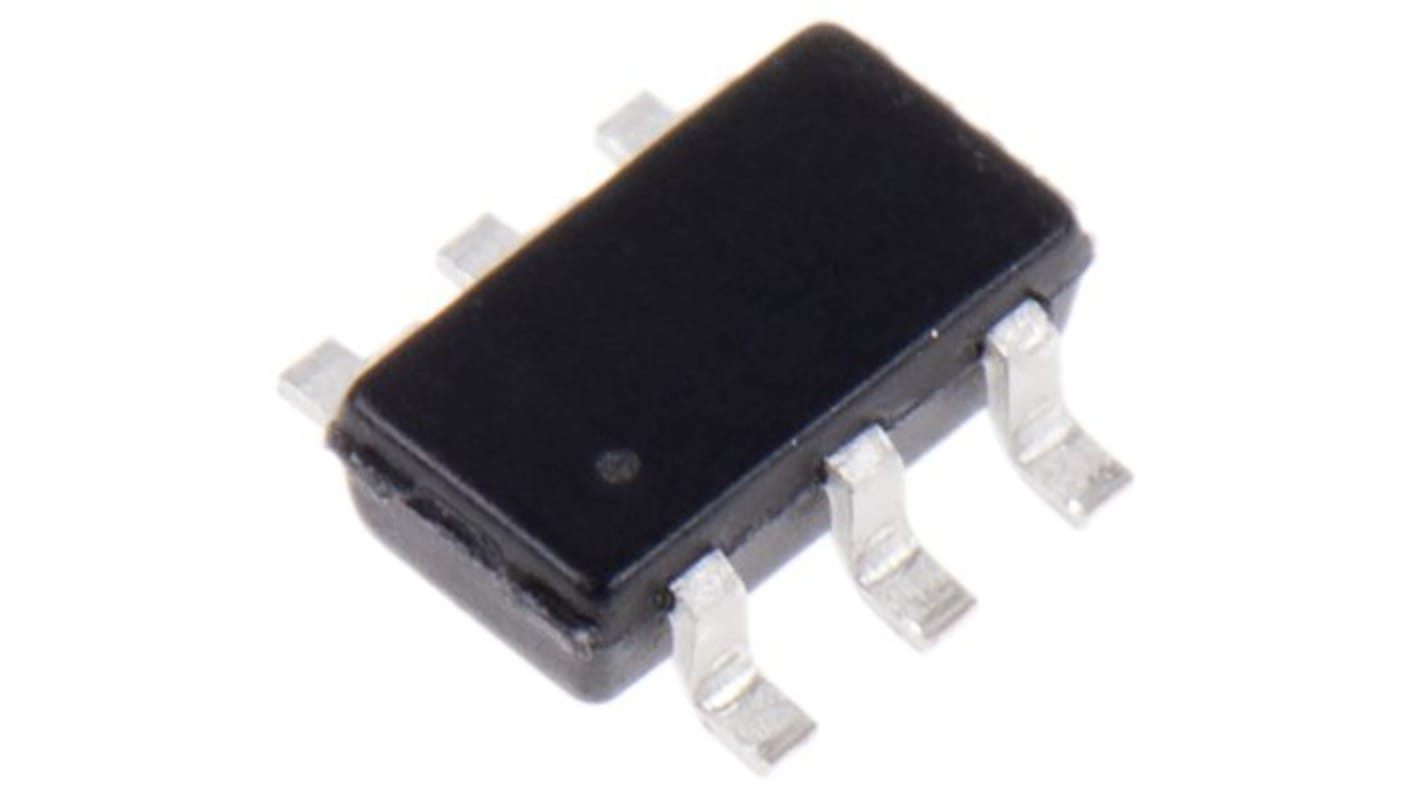

onsemi STF202-22T1G, SCSI Bus Terminator, 6-Pin TSOP
- RS-stocknr.:
- 186-9924
- Fabrikantnummer:
- STF202-22T1G
- Fabrikant:
- onsemi
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
- RS-stocknr.:
- 186-9924
- Fabrikantnummer:
- STF202-22T1G
- Fabrikant:
- onsemi
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | onsemi | |
| Termination Type | USB Line Termination | |
| Typical Resistance | 1.5 (Pull-Up) kΩ, 22 (Series) kΩ | |
| Maximum Supply Current | 5 μA | |
| Mounting Type | Surface Mount | |
| Package Type | TSOP | |
| Pin Count | 6 | |
| Dimensions | 3.1 x 1.7 x 1mm | |
| Length | 3.1mm | |
| Width | 1.7mm | |
| Height | 1mm | |
| Maximum Operating Supply Voltage | 5.25 V | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -55 °C | |
| Alles selecteren | ||
|---|---|---|
Merk onsemi | ||
Termination Type USB Line Termination | ||
Typical Resistance 1.5 (Pull-Up) kΩ, 22 (Series) kΩ | ||
Maximum Supply Current 5 μA | ||
Mounting Type Surface Mount | ||
Package Type TSOP | ||
Pin Count 6 | ||
Dimensions 3.1 x 1.7 x 1mm | ||
Length 3.1mm | ||
Width 1.7mm | ||
Height 1mm | ||
Maximum Operating Supply Voltage 5.25 V | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -55 °C | ||
TVS & EMI Filter Devices
Composite integrated solutions incorporating EMI filtering, ESD protection and Line Termination in a single SMT device.
This device is designed for applications requiring Line Termination, EMI Filtering and ESD Protection. It is intended for use in upstream USB ports, Cellular phones, Wireless equipment and computer applications. This device offers an integrated solution in a small package (TSOP-6, Case 318G) reducing PCB space and cost.
Provides USB Line Termination, Filtering and ESD Protection
Single IC Offers Cost Savings by Replacing 3 Resistors, 2 Capacitors, and 5 TVs diodes
Bi-directional EMI Filtering Prevents Noise from Entering/Leaving the System
IEC61000-4-2 ESD Protection for USB Port
Flexible Pull-down or Pull-up Line Termination to Meet USB 1.1 Low Speed and High Speed Specification
ESD Ratings: Machine Model = C Human Body Model = 3B
Benefits:
TSOP-6 Package Minimizes PCB Space
Integrated Circuit Increases System Reliability versus Discrete Component Implementation
TVs Devices Provide ESD Protection That is Better than a Discrete Implementation because the Small IC minimizes Parasitic Inductances
Applications
USB Hubs
Computer Peripherals Using USB
Single IC Offers Cost Savings by Replacing 3 Resistors, 2 Capacitors, and 5 TVs diodes
Bi-directional EMI Filtering Prevents Noise from Entering/Leaving the System
IEC61000-4-2 ESD Protection for USB Port
Flexible Pull-down or Pull-up Line Termination to Meet USB 1.1 Low Speed and High Speed Specification
ESD Ratings: Machine Model = C Human Body Model = 3B
Benefits:
TSOP-6 Package Minimizes PCB Space
Integrated Circuit Increases System Reliability versus Discrete Component Implementation
TVs Devices Provide ESD Protection That is Better than a Discrete Implementation because the Small IC minimizes Parasitic Inductances
Applications
USB Hubs
Computer Peripherals Using USB
Signal/Line/Noise and Feedthrough – PCB Mount (SMT)
Unless explicitly stated, the filters in this range have an Operating Temperature Range of between -25°C and 85°C.
