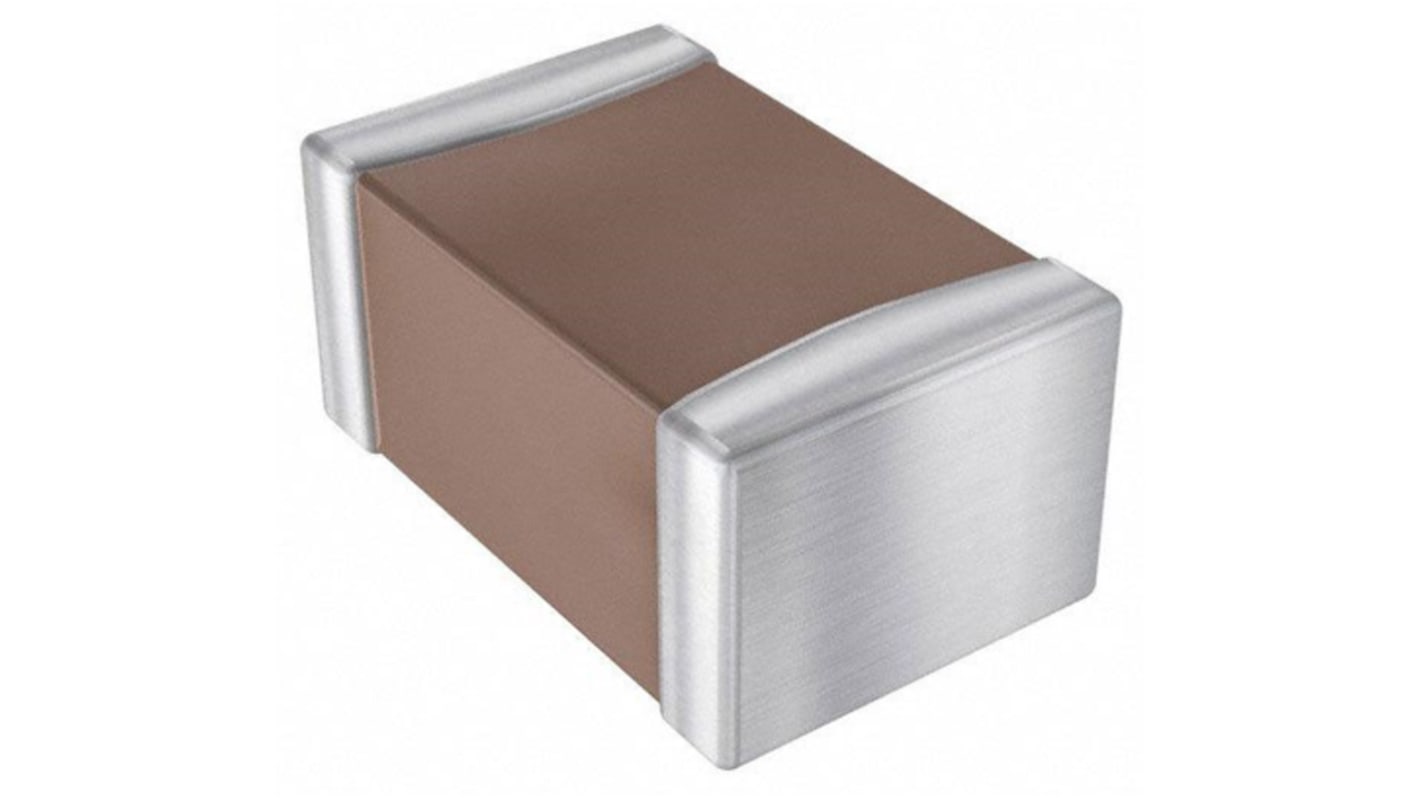

AVX 1nF MLCC, 50V dc V, SMD
- RS-stocknr.:
- 135-9015
- Fabrikantnummer:
- 08055C102KAT2A
- Fabrikant:
- AVX
500 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
1500 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Toegevoegd
Prijs Per stuk (in een zak van 500)
€ 0,021
(excl. BTW)
€ 0,025
(incl. BTW)
| Aantal stuks | Per stuk | Per Zak* |
| 500 - 2000 | € 0,021 | € 10,50 |
| 2500 - 4500 | € 0,019 | € 9,50 |
| 5000 + | € 0,019 | € 9,50 |
| *prijsindicatie | ||
- RS-stocknr.:
- 135-9015
- Fabrikantnummer:
- 08055C102KAT2A
- Fabrikant:
- AVX
Datasheets
Wetgeving en conformiteit
Productomschrijving
AVX - X7R Dielectric Multilayer Ceramic Capacitors
The X7R dielectric MLCC’s from AVX offer a ’temperature stable’ range of capacitors which can be used in a wide operating temperature range from -55°C to +125°C. These capacitors are an excellent choice for a wide range of applications that have changes in capacitance due to applied voltages.
Features & Benefits
Capacitance ±15% from -55°C to +125°C
’Temperature stable’ range of capacitors
’Temperature stable’ range of capacitors
Applications
Can be used with a wide range of industrial applications where changes in capacitance occur
0805 Range
Nickel barrier terminations covered with a layer of plated Tin (NiSn). Applications include mobile phones, video and tuner designs, COG/NPO is the most popular formulation of the "temperature compensating", EIA Class I ceramic materials, X7R, X5R formulations are called "temperature stable" ceramics and fall into the EIA Class II materials, Y5V, Z5U formulations are for general purpose use in a limited temperature range, EIA Class II materials; these characteristics are ideal for decoupling applications.
Specificaties
Kenmerk | Waarde |
|---|---|
| Capacitance | 1nF |
| Voltage | 50V dc |
| Package/Case | 0805 (2012M) |
| Mounting Type | Surface Mount |
| Dimensions | 2.01 x 1.25 x 0.94mm |
| Length | 2.01mm |
| Depth | 1.25mm |
| Height | 0.94mm |
| Suppression Class | Class II |
| Terminal Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
