Ensign 3 440H Safety Hinge Switch, NO/2NC, M16

Datasheets
Wetgeving en conformiteit
N.v.t.
Productomschrijving

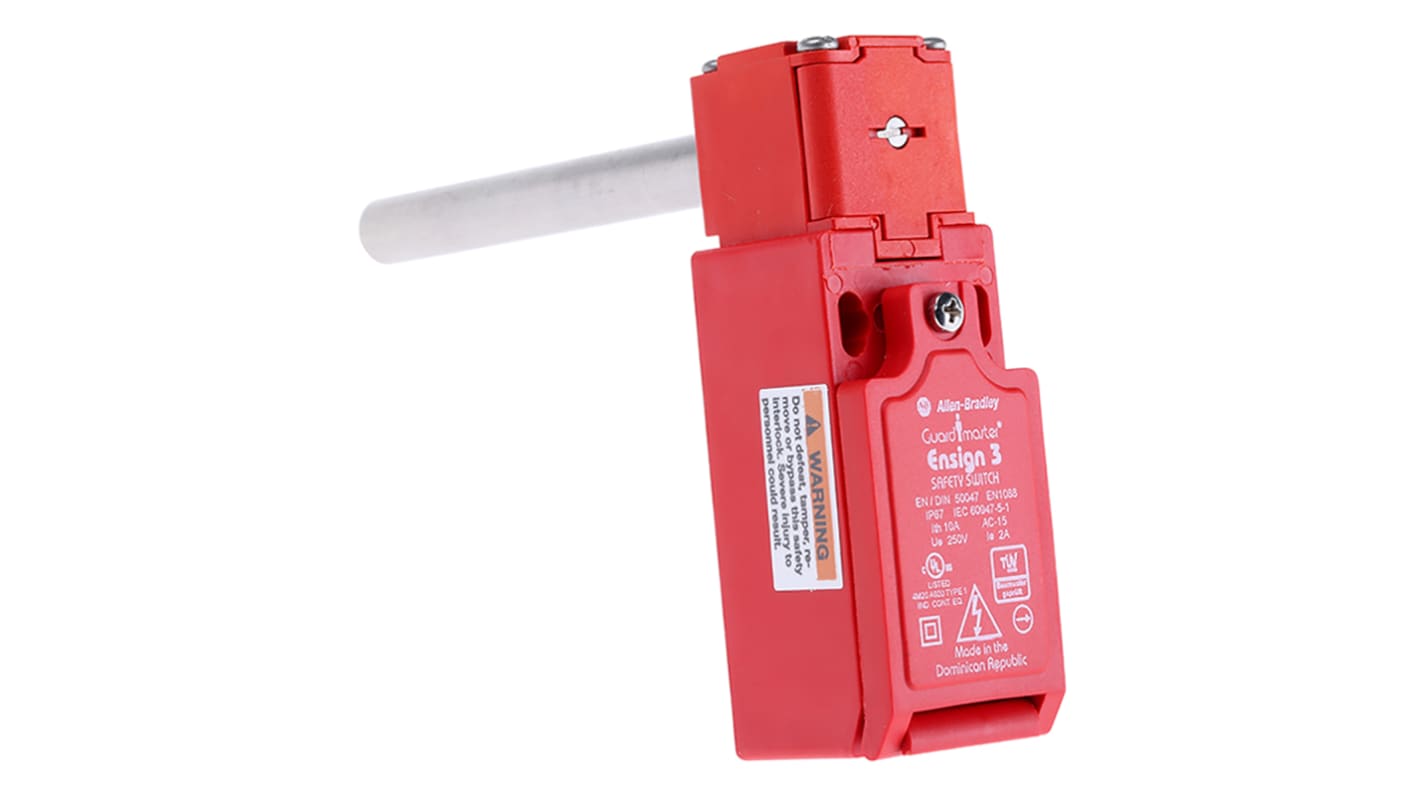

Allen-Bradley Ensign 3 Hinge Switch

A compact hinge operated safety interlock switch with the option of 2 safety contacts
Full IP67 ingress protection on all models
Rotateable head facilities 4 possible shaft positions
Only 3° of guard movement required to operate
2N/C, 1N/O or 3N/C controls hollow shaft
Forced guided contacts - complies with EN 1088, IEC 947-5-1

Note

These are not to be used for load bearing applications

//media.rs-online.com/t_line/L759190-01.gif
//media.rs-online.com/t_line/L759190-24.gif

Hinge Switch

Specificaties
Kenmerk Waarde
Range Ensign 3
Series 440H
Lock Style Hinge
Normal State Configuration NO/2NC
Size of Cable Entries M16
Conduit Entry M16
Shaft Length 80mm
8 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
16 op voorraad - levertijd is 1 werkdag(en) (UK-voorraad)
Prijs Each
36,10
(excl. BTW)
43,68
(incl. BTW)
Aantal stuks
Per stuk
1 +
36,10 €
