- RS-stocknr.:
- 181-4704
- Fabrikant:
- RS PRO
300 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
950 op voorraad - levertijd is 3 à 5 werkdagen (UK-voorraad)
Toegevoegd
Prijs Per stuk (in een verpakking 50)
€ 0,267
(excl. BTW)
€ 0,323
(incl. BTW)
Aantal stuks | Per stuk | Per pak* |
50 - 200 | € 0,267 | € 13,35 |
250 - 450 | € 0,259 | € 12,95 |
500 - 950 | € 0,238 | € 11,90 |
1000 - 2450 | € 0,213 | € 10,65 |
2500 + | € 0,165 | € 8,25 |
*prijsindicatie |
- RS-stocknr.:
- 181-4704
- Fabrikant:
- RS PRO
Datasheets
Wetgeving en conformiteit
- Land van herkomst:
- CN
Productomschrijving

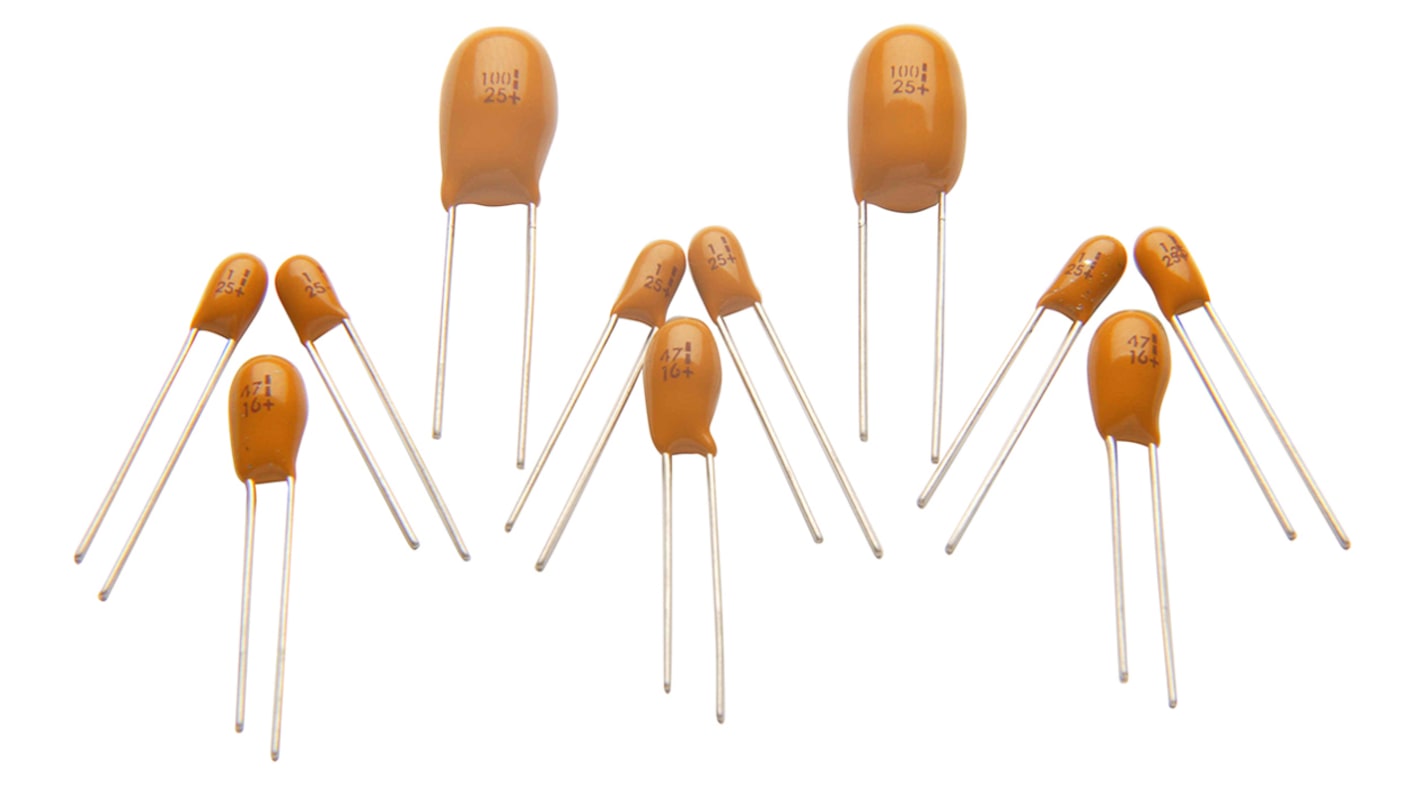

RS PRO Tantalum Capacitor
The RS PRO CB series 0.5uf epoxy-coated solid electrolytic tantalum capacitor has a voltage rating of 35VDC and a leakage current of 500nA. It has dimensions of 4.5mm x 4.5mm x 7mm x 0.5mm (L x D x H x Lead diameter).
Features and Benefits
Tolerance: ±20%
Operating temperature ranges between -55°C and 125°C
Life of 1000 Hours
Lead pitch: 2.5mm
Dissipation factor: Less than 0.04%
Through hole mount
Package/case: A
Operating temperature ranges between -55°C and 125°C
Life of 1000 Hours
Lead pitch: 2.5mm
Dissipation factor: Less than 0.04%
Through hole mount
Package/case: A
Applications
Electronics industry
Certifications
ANSI/ESD S20.20: 2014
BS EN 61340-5-1: 2007
BS EN 61340-5-1: 2007
Specificaties
Kenmerk | Waarde |
---|---|
Technology | Electrolytic |
Capacitance | 470nF |
Voltage | 35V dc |
Mounting Type | Through Hole |
Package/Case | A |
Lead Pitch | 2.5mm |
Tolerance | ±20% |
Length | 4.5mm |
Depth | 4.5mm |
Height | 7mm |
Dimensions | 4.5 x 4.5 x 7mm |
Electrolyte Type | Solid |
Maximum Operating Temperature | +125°C |
Lead Diameter | 0.5mm |
Polarised | Positive |
Tolerance Minus | -20% |
Dissipation Factor | <lteq/>0.04% |
Minimum Operating Temperature | -55°C |
Dielectric Material Family | Tantalum |
Tolerance Plus | +20% |
Leakage Current | 500 nA |
