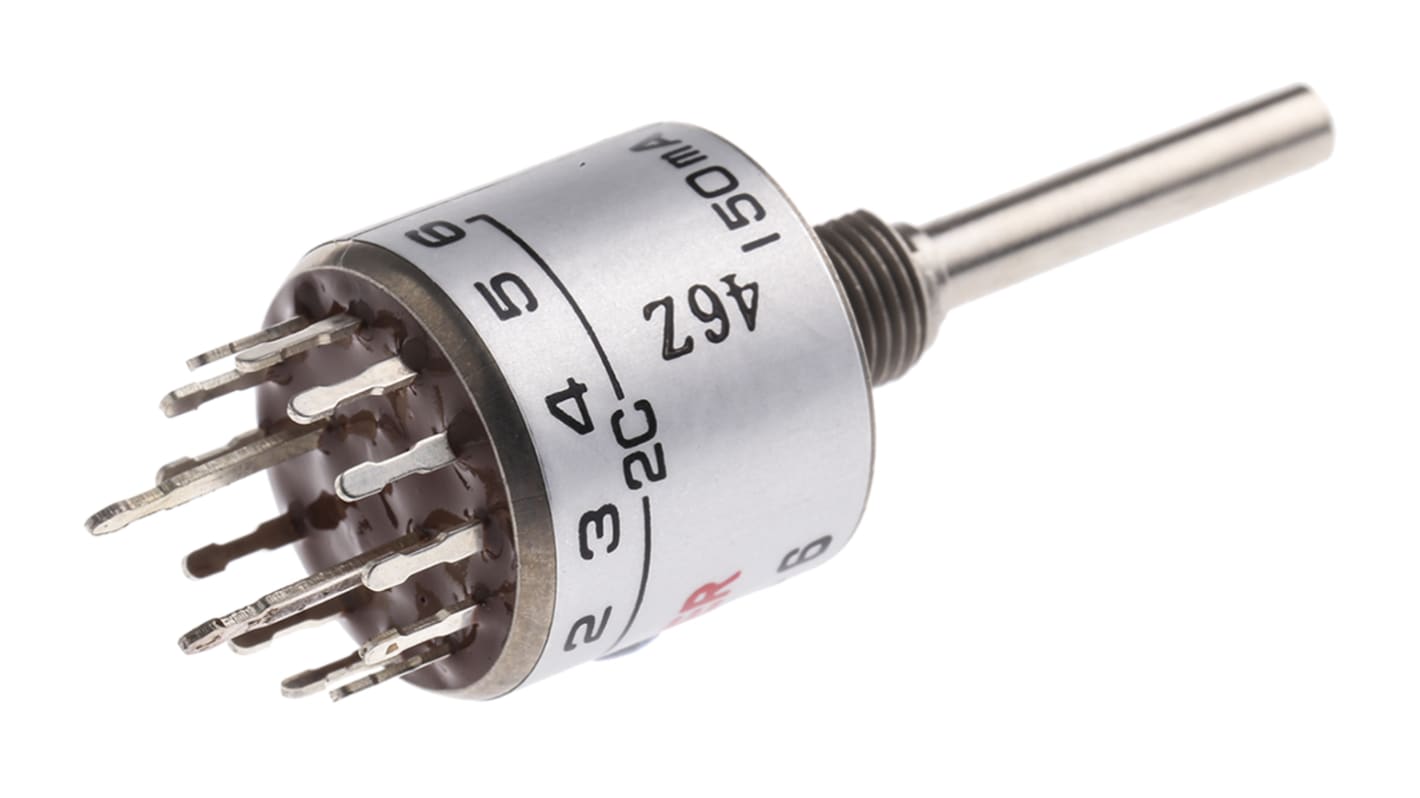

KNITTER-SWITCH, 6 Position DP6T Rotary Switch, 150 mA @ 24 V dc, Solder
- RS-stocknr.:
- 711-8401
- Fabrikantnummer:
- MR 2-6
- Fabrikant:
- KNITTER-SWITCH
Bekijk alle Rotary Switches
Tijdelijk niet op voorraad – voor levertijd of een alternatief product neem contact op via Live Chat of zoek een vergelijkbaar product op de website.
Prijs Each
€ 44,49
(excl. BTW)
€ 53,83
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 + | € 44,49 |
Verpakkingsopties
- RS-stocknr.:
- 711-8401
- Fabrikantnummer:
- MR 2-6
- Fabrikant:
- KNITTER-SWITCH
Datasheets
Wetgeving en conformiteit
- Land van herkomst:
- JP
Productomschrijving
Knitter Switch Miniature Rotary Switches - MR Series
Panel mount miniature rotary switches
1/4" mounting bush
Nickel plated brass shaft
Silver contacts
Contact resistance <10mΩ
Insulation resistance >100MΩ at 500Vdc
Dielectric strength 1000V 50Hz for 1 minute
Non-shorting contact
1/4" mounting bush
Nickel plated brass shaft
Silver contacts
Contact resistance <10mΩ
Insulation resistance >100MΩ at 500Vdc
Dielectric strength 1000V 50Hz for 1 minute
Non-shorting contact
Specificaties
Kenmerk | Waarde |
|---|---|
| Contact Configuration | DP6T |
| Contact Current Rating | 150 mA @ 24 V dc |
| Number of Switch Positions | 6 |
| Number of Contacts | 2 |
| Voltage Rating | 125 V ac, 24V dc |
| Diameter | 6.5mm |
| Dimensions | 6.5 x 40mm |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Application | Test and Instrumentation Switches |
| Case Material | Aluminium |
| Height | 40mm |
| Minimum Operating Temperature | -45°C |
| Contact Material | Silver |
| Maximum Operating Temperature | +110°C |
