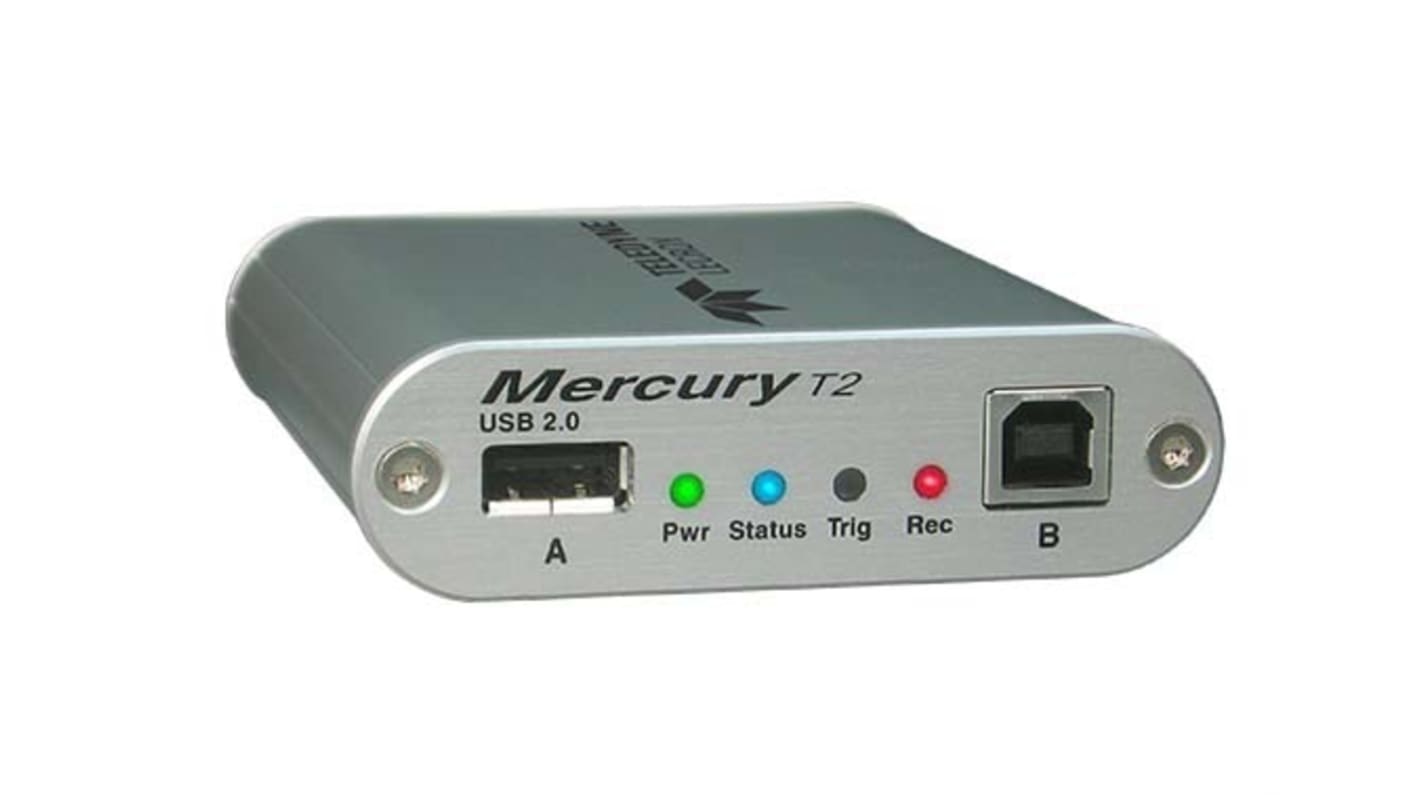

LeCroy Mercury T2 USB 2.0 Advanced Protocol Analyser

Datasheets
Wetgeving en conformiteit
Vrijgesteld
Land van herkomst: US
Productomschrijving

Teledyne LeCroy USB-TMA2-M01-X USB Analyser for USB 2.0 Advanced Feature Set

The Teledyne LeCroy Mercury T2 is the industry’s smallest, most affordable hardware-based USB 2.0 protocol analyser that combines the de-facto standard CATC Trace display with the very latest USB class decoding. The Mercury T2 fits in a shirt pocket yet provides much of the same lab quality protocol analysis capabilities offered in Teledyne LeCroy’s top-of-the-line USB analysers.

View and Understand USB Protocol

Featuring the industry-leading CATC Trace™ expert analysis software, the Mercury T2 system provides an easy-to-use display that graphically decodes logical protocol events. With the Standard or Advanced edition, all protocol layers can be expanded to show the underlying transactions and packets. Tooltips help explain protocol events making it easier for non-experts to identify errors.

Real Time Triggering

Isolating specific protocol events with real time triggering is essential to capture intermittent problems. The Mercury T2 provides sophisticated triggering with drag-and-drop selections for PID type, data patterns, standard requests, errors, and bus events. The Mercury T2 features 256 MB of on-board memory and also supports spool-todisk capture for extended recording

Features and Benefits

  • Portable and Affordable - Compact, bus-powered system measures 3.0” x 3.5”, weighs 5 oz.

  • Supports USB 2.0 - Capable of capturing all USB speeds up to 2.0 including OTG (On-the-Go)

  • 256 MB Recording Memory - Extend capture time with spool-to-disk recording

  • High Impedance probe - Non-intrusive probe preserves real-world signal and timing conditions

  • Advanced Triggering - Isolates important traffic, specific errors or patterns

  • Extensive Decodes - Mass storage, Bluetooth HCI, Hub, PTP/Still Image, Printer, Human Interface Device (HID), Audio, Video and Communication

  • Hardware Filtering - Automatically exclude non-essential traffic

  • Event Reporting - Quickly identify and track error rates, abnormal bus activity or timing conditions

  • Quickly identify and track error rates, abnormal bus activity or timing conditions

Applications

Software development in new product designs.

Specificaties
Kenmerk Waarde
Protocols Supported USB 2.0
Model Number p USB-TMA2-M01-X
1 op voorraad - levertijd is 1 werkdag(en)
Prijs Each
1.380,00
(excl. BTW)
1.669,80
(incl. BTW)
Aantal stuks
Per stuk
1 +
1.380,00 €
